ASRock X870 Pro RS WiFi AM5 DDR5 ATX Motherboard

Name: ASRock X870 Pro RS WiFi AM5 DDR5 ATX Motherboard
Brand: ASRock
Price: 35000 BDT
Availability: InStock

Model: X870 Pro RS WiFiItem #: asrock-x870-pro-rs-wifi-am5-motherboard

৳35,000~~৳36,000~~Save 3%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD X870 Chipset
1 M.2 slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC); Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules RAM type
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; 8 Layer PCB

Overview

The ASRock X870 Pro RS WiFi AM5 DDR5 ATX Motherboard is designed to deliver high performance and support for the latest technologies. It is compatible with AMD Socket AM5 Ryzen 9000, 8000, and 7000 Series Processors and features PCIe Gen5 for graphics and M.2 storage, ensuring fast data transfer speeds. The motherboard supports dual-channel DDR5 memory up to 8000+(OC) with a maximum capacity of 256GB, making it suitable for demanding applications. It includes USB4 Type-C ports offering speeds of up to 40 Gb/s, 2.5G LAN, and Wi-Fi 7 for fast and reliable connectivity. The integrated RDNA graphics supports resolutions up to 8K 30Hz via USB4 ports. The ASRock X870 Pro RS WiFi AM5 DDR5 ATX Motherboard is built for durability with a 14+2+1 power phase design, 80A Dr.MOS, and enlarged heatsink armor for improved thermal performance. An integrated I/O shield, BIOS Flashback button, and ASRock Auto Driver Installer simplify setup and updates. Storage options include Blazing M.2 Gen5, Hyper M.2 Gen4, and Ultra M.2 Gen3 slots, along with support for RAID 0, 1, and 10 configurations for M.2 NVMe drives. Audio is enhanced by Realtek ALC1220 7.1 HD Audio with Nahimic software, while the Dragon 2.5G LAN software optimizes network performance. Cooling options include multiple smart fan connectors and an AIO pump header. The ASRock X870 Pro RS WiFi AM5 Motherboard provides extensive USB connectivity with USB 3.2 Gen2x2, USB 3.2 Gen1, and USB 2.0 ports for front and rear panels. ASRock Polychrome Sync and addressable RGB headers allow for customizable lighting effects. With support for Windows 11 and an ATX form factor, this motherboard offers advanced features and connectivity for modern computing needs.

Specifications

Chipset: AMD X870
M.2 slots: 1
RAM type: Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC); Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Form factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; 8 Layer PCB
Memory — Type: Dual Channel DDR5 Memory Technology
Memory — Slots: 4 x DDR5 DIMM Slots
Highlights — Model: X870 Pro RS WiFi
Graphics — Graphics: Integrated AMD RDNA™ graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz*; ; * Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics.

Show all 27 specifications

Expansion Slots — PCI: CPU:; - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*; Chipset:; - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; - Supports AMD CrossFire™; - 15μ Gold Contact in VGA PCIe Slot (PCIE1); ; * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.; If M2_2 is occupied, PCIE2 will be disabled.; Supports NVMe SSD as boot disks
Highlights — Features: 2.5G LAN, 802.11be Wi-Fi 7 Module, Bluetooth 5.4
Memory — Maximum Memory: 256GB
Basic Information — BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
Connector & Ports — HDMI: 1 x HDMI Port
Connector & Ports — RAID: Supports RAID 0 and RAID 1 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*; ; * Requires additional M.2 NVMe expansion cards to support RAID 10
Basic Information — Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec); Impedance Sensing on Rear Out port; Individual PCB Layers for R/L Audio Channel; Nahimic Audio
Connector & Ports — Audio: 1 x Line Out Jack (Gold Audio Jack); 1 x Microphone Input Jack (Gold Audio Jack)
Others — Bundled Software: Software; - ASRock Motherboard Utility (A-Tuning); - ASRock Dragon 2.5G LAN Software; - ASRock Polychrome SYNC*; UEFI; - ASRock EZ Mode; - ASRock Full HD UEFI; - ASRock Auto Driver Installer; - ASRock Instant Flash; ; *These utilities can be downloaded from ASRock Live Update & APP Shop.
Others — Special Features: Superb Productivity; - PCIe Gen5 (Graphics, M.2); - Dual Channel DDR5; - USB4 Type-C Ports (40 Gb/s); Rock-Solid Durability; - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor; - Flexible Integrated I/O Shield; Ultrafast Connectivity; - 2.5G LAN, 802.11be Wi-Fi 7 Module; EZ Update; - BIOS Flashback Button; - ASRock Auto Driver Installer; EZ Troubleshooter; - ASRock Post Status Checker
Highlights — Supported RAM: 4x DDR5, Up to 8000+(OC), Max 256GB
Connector & Ports — USB (s): CPU:; - 2 x USB4 Type-C (Rear); - 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2)); Chipset:; - 1 x USB 3.2 Gen2x2 Type-C (Front); - 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 2 Front); - 9 x USB 2.0 (6 Rear, 3 Front); ; * All USB ports support ESD Protection
Highlights — Graphics Output: 1 x HDMI 2.1, 2 x USB4, Support HDCP 2.3 and max
Connector & Ports — LAN Port (s): 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; Dragon RTL8125BG; Supports Dragon 2.5G LAN Software; Smart Auto Adjust Bandwidth Control; Visual User Friendly UI; Visual Network Usage Statistics; Optimized Default Setting for Game, Browser, and Streaming Modes; User Customized Priority Control
Basic Information — Supported CPU: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Connector & Ports — Supported Storage: CPU:; - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset:; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*; - 2 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061:; - 2 x SATA3 6.0 Gb/s Connectors; ; * Supports NVMe SSD as boot disks; M2_1 is the first priority for M.2 installation.; M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.; If M2_2 is occupied, PCIE2 will be disabled.; If SATA3_1 or SATA3_2 is occupied, M2_3 will downgrade to Gen3x2 mode.

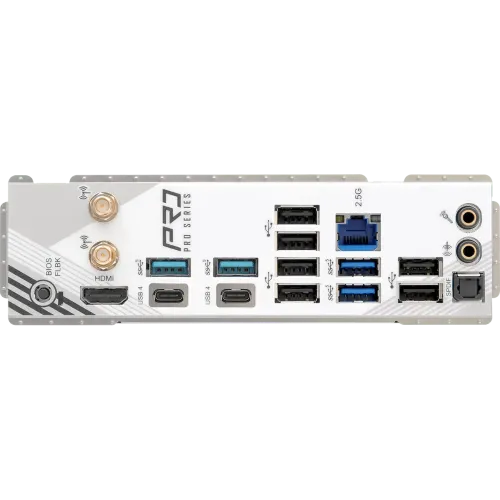

Connector & Ports — Internal I/O Ports: 2 x Antenna Ports; 1 x HDMI Port; 1 x Optical SPDIF Out Port; 2 x USB4 Type-C Ports (40 Gb/s)*; 4 x USB 3.2 Gen1 Type-A Ports; 6 x USB 2.0 Ports; 1 x RJ-45 LAN Port; 1 x BIOS Flashback Button; 1 x Line Out Jack (Gold Audio Jack); 1 x Microphone Input Jack (Gold Audio Jack); * Supports USB PD 3.0 up to 5V@3A (15W) charging; 1 x Thermistor Cable Header; 1 x Power LED and Speaker Header; 1 x RGB LED Header*; 3 x Addressable LED Headers**; 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***; 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***; 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***; 1 x 24 pin ATX Power Connector; 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector); 1 x Front Panel Audio Connector; 2 x USB 2.0 Headers (Support 3 USB 2.0 ports); 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports); 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s); * Supports in total up to 12V/3A, 36W LED Strip; ** Support in total up to 5V/3A, 15W LED Strip; *** CPU_FAN1 supports the fan power up to 1A (12W).; CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W).; CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: 802.11be 2x2 Wi-Fi 7 Module; Supports IEEE 802.11a/b/g/n/ac/ax/axe/be; Supports 2.4GHz/5GHz/6GHz* frequency band; Supports 160MHz channel bandwidth with 6GHz* frequency band; 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology; Supports Bluetooth 5.4; Supports MU-MIMO; ; * Wi-Fi 7 (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
