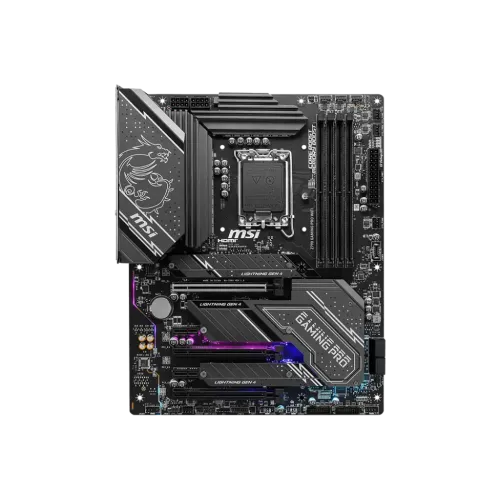

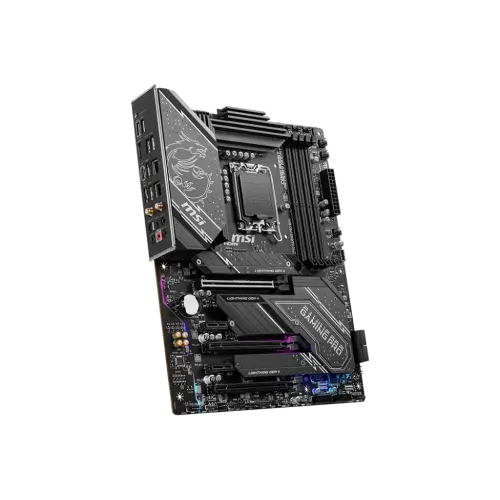

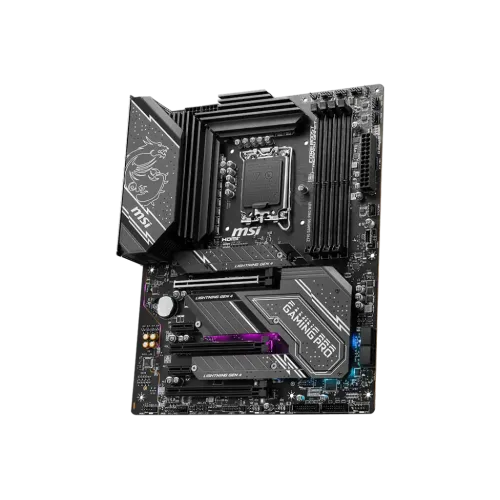

MSI Z790 GAMING PRO WIFI ATX Motherboard
Model: Z790 GAMING PRO WIFIItem #: msi-z790-gaming-pro-wifi-motherboard
৳35,000
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- INTEL Z790 Chipset
- Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7200+ MHz; • 1DPC 2R Max speed up to 6400+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Intel XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory RAM type
- ATX; 243.84mmx304.8mm Form factor
Overview
The MSI Z790 GAMING PRO WIFI motherboard supports 14th/13th/12th Gen Intel Core, Pentium Gold, and Celeron processors for the LGA 1700 socket, providing powerful and efficient processing capabilities. The motherboard supports DDR5 memory with speeds up to 7200+(OC) MHz, enabling fast and responsive multitasking. With its enhanced power design featuring a 14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost, and Memory Boost, the motherboard ensures stable power delivery and optimized performance. The premium thermal solution, including an extended heatsink and MOSFET thermal pads rated for 7W/mK, ensures efficient heat dissipation and enhances the overall system cooling. The motherboard offers lightning-fast gaming experiences with a PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, and USB 3.2 Gen 2x2 20G connectivity. MSI Z790 GAMING PRO WIFI Motherboard features a high-quality 6-layer PCB made with 2oz thickened copper, providing durability and stability for long-lasting performance.
Specifications
- Chipset
- INTEL Z790
- RAM type
- Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7200+ MHz; • 1DPC 2R Max speed up to 6400+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Intel XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory
- Form factor
- ATX; 243.84mmx304.8mm
- Memory — Type
- DDR5
- Memory — Slots
- 4
- Highlights — Model
- Z790 GAMING PRO WIFI
- Graphics — Graphics
- 1x HDMI; Support HDMITM 1.4 with HDR, maximum resolution of 4K 30Hz
- Expansion Slots — PCI
- 3x PCI-E x16 slot; 2x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E5 Gen PCIe 4.0 supports up to x4 (From Chipset)
Show all 24 specificationsShow fewer
- Highlights — Features
- 3x M.2, Intel Wi-Fi 6E
- Memory — Maximum Memory
- 192GB
- Connector & Ports — HDMI
- 1x HDMI 1.4
- Connector & Ports — RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
- Basic Information — Audio
- Realtek ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output
- Others — Special Features
- 4x EZ Debug LED
- Highlights — Supported RAM
- 4x DDR5, Max 192GB 7200+(OC) MHz

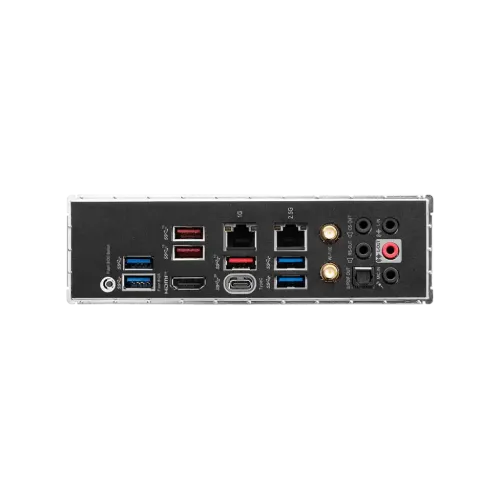

- Connector & Ports — USB (s)
- 4x USB 2.0 (Front); 4x USB 3.2 Gen1 Type A (Rear); 4x USB 3.2 Gen1 Type A (Front); 3x USB 3.2 Gen2 Type A (Rear); 1x USB 3.2 Gen2 Type C (Front); 1x USB 3.2 Gen2x2 Type C (Rear)
- Highlights — Graphics Output
- 1x HDMI
- Connector & Ports — LAN Port (s)
- Realtek RTL8125BG 2.5Gbps LAN; Realtek RTL8111H 1Gbps LAN
- Basic Information — Supported CPU
- Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors; LGA 1700
- Connector & Ports — Supported Storage
- 3x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G
- Connector & Ports — Internal I/O Ports
- 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 5x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x TBT connector (JTBT, supports RTD3); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 4x USB 2.0 ports; 4x USB 3.2 Gen1 Type A ports; 1x USB 3.2 Gen2 Type C ports
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — Wireless Communication module
- Intel Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; ; Supports Bluetooth 5.3, FIPS, FISMA
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM pin header(Support TPM 2.0)
Compare with similar products
 This itemMSI Z790 GAMING PRO WIFI ATX Motherboard |  ASRockASRock X870 Pro RS WiFi AM5 DDR5 ATX Motherboard |  MSIMSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard |  GIGABYTEGIGABYTE B850 AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳35,000 | ৳35,000 | ৳35,000 | ৳35,000 |
| Availability | Out of stock | In stock | Out of stock | Out of stock |
| Brand | MSI | ASRock | MSI | GIGABYTE |
| RAM type | Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7200+ MHz; • 1DPC 2R Max speed up to 6400+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Intel XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC); Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | Memory Support 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 9200+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 5600+ MT/s; Supports Intel POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel® XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules |
| Form factor | ATX; 243.84mmx304.8mm | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; 8 Layer PCB | mATX; 243.84mmx243.84mm | ATX Form Factor; 30.5cm x 24.4cm |
| Chipset | INTEL Z790 | AMD X870 | INTEL B860 | AMD B850 |
| M.2 slots | — | 1 | 3 | 1 |
