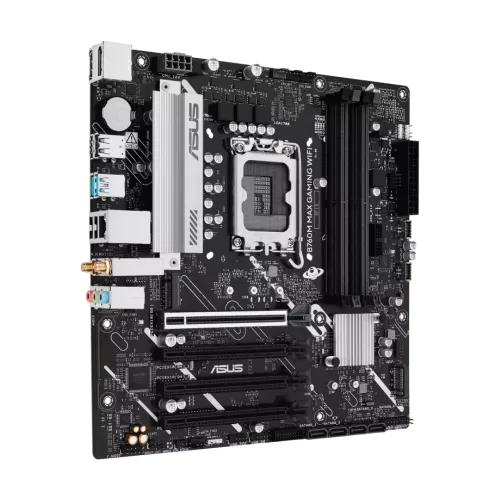

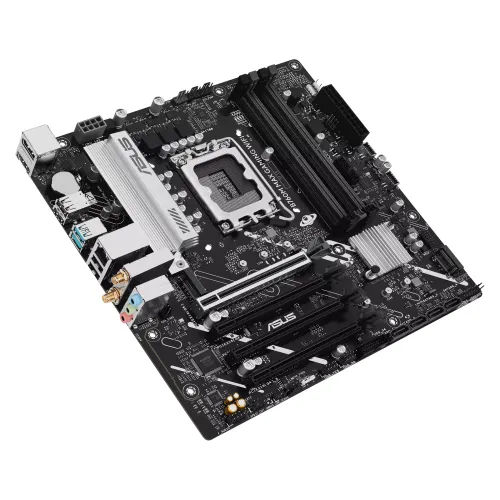

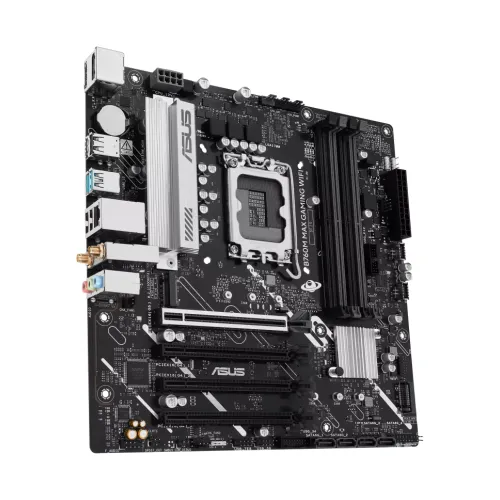

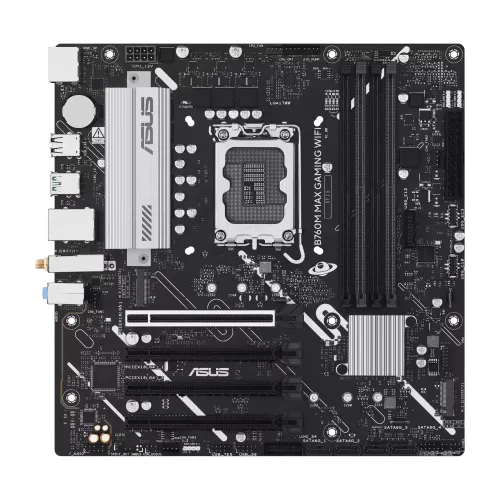

ASUS B760M MAX GAMING WIFI mATX Motherboard

Name: ASUS B760M MAX GAMING WIFI mATX Motherboard
Brand: Asus
Price: 21200 BDT
Availability: InStock

Model: B760M MAX GAMING WIFIItem #: asus-b760m-max-gaming-wifi-motherboard

৳21,200~~৳23,320~~Save 9%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Chipset
3 M.2 slots
7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II RAM type
mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Overview

The ASUS B760M MAX GAMING WIFI mATX Motherboard is designed for gamers and PC builders who demand performance, stability, and modern connectivity. Powered by the Intel B760 chipset and LGA 1700 socket, this ASUS Gaming Motherboard supports Intel 12th, 13th, and 14th Gen processors, DDR5 memory, and PCIe 5.0 expansion, making it a future‑ready choice for high‑performance gaming rigs and productivity systems.

Performance and Compatibility

The ASUS B760M MAX GAMING WIFI Motherboard ensures compatibility with Intel Core 12th, 13th, and 14th Gen CPUs, delivering fast and efficient performance for gaming, streaming, and multitasking. With dual DDR5 DIMM slots, it supports up to 128GB of memory with advanced overclocking capabilities. This ASUS mATX Motherboard combines compact design with powerful features, making it ideal for mid‑tower builds.

Expansion and Storage

Equipped with PCIe 5.0 x16 SafeSlot for next‑generation GPUs and multiple PCIe 4.0 slots for expansion, the ASUS B760M MAX GAMING WIFI Motherboard provides flexibility for upgrades. Dual M.2 slots (PCIe 4.0) and SATA 6Gb/s ports allow for ultra‑fast NVMe SSDs and traditional HDDs, ensuring versatile storage options for gamers and creators.

Connectivity and Networking

This ASUS WiFi Motherboard offers advanced networking with Wi‑Fi 6E for ultra‑fast wireless speeds and Intel 2.5Gb Ethernet for stable wired connections. The rear I/O panel includes HDMI and DisplayPort outputs, multiple USB 3.2 Gen 2 and USB Type‑C ports, and audio jacks powered by Realtek codec for immersive sound. Whether gaming online or streaming content, this ASUS Prime Intel Motherboard ensures seamless connectivity.

Cooling and Design

With robust VRM design, heatsinks, and ASUS Fan Xpert software, the ASUS B760M MAX GAMING WIFI Motherboard maintains efficient cooling under heavy loads. Its micro‑ATX form factor makes it suitable for compact cases, while customizable RGB lighting enhances the aesthetics of any gaming setup.

Specifications

Chipset: Intel B760 Chipset
M.2 slots: 3
RAM type: 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II
Form factor: mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: B760M MAX GAMING WIFI
Graphics — Graphics: 1 x DisplayPort**; 1 x HDMITM port*** ; * Graphics specifications may vary between CPU types

Show all 29 specifications

Highlights — Storage: 3 x M.2 slots, 4 x SATA 6Gb/s ports
Expansion Slots — PCI: Intel® Core™ Processors (14th & 13th & 12th Gen); 1 x PCIe 5.0 x16 slot; Intel® B760 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 2 x PCIe 4.0 x16 slot (support x1 mode)
Highlights — Features: Realtek 1Gb Ethernet, Wi-Fi 6, Bluetooth 5.3
Memory — Maximum Memory: Max. 192GB
Basic Information — BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Connector & Ports — HDMI: 1 x HDMI 2.1
Connector & Ports — RAID: * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Basic Information — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Connector & Ports — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Others — Bundled Software: ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert 2+; - Two-Way AI Noise Cancelation; AI Suite 3; - Digi+ VRM; - PC Cleaner; ASUS CPU-Z; Norton 360 Deluxe (60 Days Free Trial); WinRAR (40 Days Free Trial); UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
Others — Special Features: ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage Protection; - SafeSlot; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS EZ DIY; - ProCool; AURA Sync; - Addressable Gen 2 headers
Highlights — Supported RAM: 4 x DIMM, 7200+ (OC), Max. 192GB, DDR5
Connector & Ports — USB (s): Rear USB (Total 6 ports); 2 x USB 10Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 10 ports); 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports; 2 x USB 5Gbps port (support USB Type-C®); 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Connector & Ports — LAN Port (s): 1 x Realtek 1Gb Ethernet; ASUS LANGuard
Basic Information — Supported CPU: Intel Socket LGA1700 for Intel Core14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors*; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Connector & Ports — Display Port (s): 1 x DisplayPort 1.4
Connector & Ports — Supported Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel® Core™ Processors (14th & 13th & 12th Gen); M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel® B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode); 4 x SATA 6Gb/s ports
Connector & Ports — Internal I/O Ports: Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports; 2 x USB 5Gbps port (support USB Type-C®); 2 x USB 2.0 header support 4 additional USB 2.0 ports; Miscellaneous; 3 x Aura Addressable Gen 2 headers; 1 x Clear CMOS header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function; ; Back Panel I/O Ports; 2 x USB 10Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 1 x HDMITM port; 1 x Wi-Fi Module; 1 x Realtek 1Gb Ethernet; 3 x Audio jacks
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — Wireless Communication module: Wi-Fi 6; Wi-Fi 6 (802.11 a/b/g/n/ac/ax); Supports 2.4/5GHz frequency band; Bluetooth® v5.3; *The Bluetooth version may vary,
Connector & Ports — TPM (Trusted Platform Module ): 1 x SPI TPM header (14-1pin)
