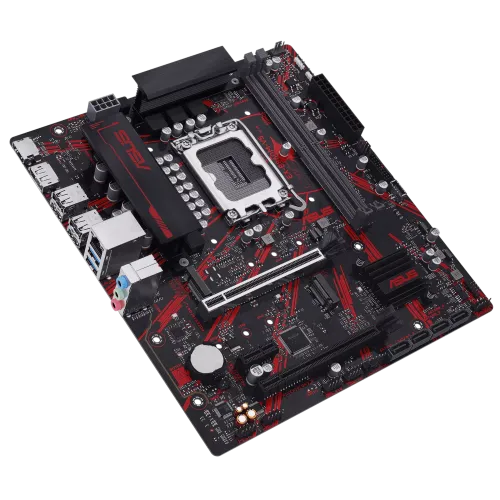

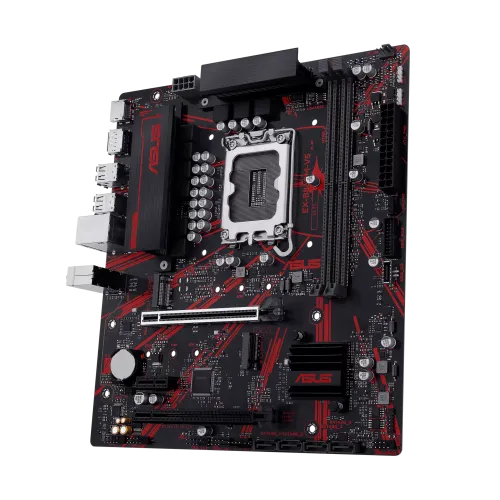

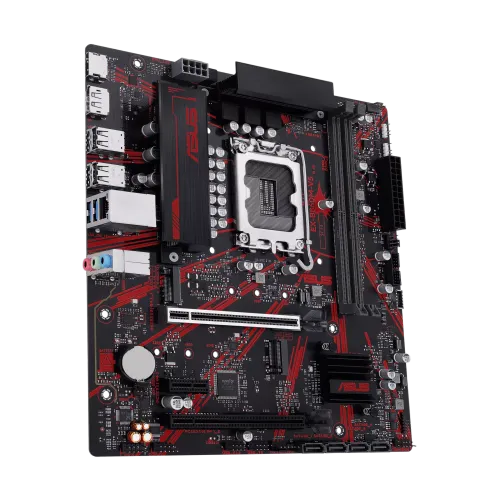

Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard
Model: EX-B860M-V5Item #: asus-ex-b860m-v5-motherboard
৳20,900৳21,200Save 1%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- INTEL B860 Chipset
- 2 M.2 slots
- 2 x DIMM slots, max. 128GB, DDR5; Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII) RAM type
- micro-ATX Form Factor; 9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )
Overview
The Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard is a powerful computing powerhouse that supports Intel Core Ultra Processors Series 2 thanks to its superior Intel B860 chipset and LGA 1851 socket compatibility. This Asus EX-B860M-V5 Motherboard features two DIMM slots and supports up to 128GB of DDR5 RAM at speeds of 8800+MT/s OC. It has Intel XMP and ASUS Enhanced Memory Profile III AEMPIII for easy overclocking, making it ideal for gamers and pros. Visual performance is equally impressive, with DisplayPort 1.4 and HDMI 2.1 outputs that support crisp 4K at 60Hz resolution. Expansion is seamless with one PCIe 4.0 x16 slot, one PCIe 4.0 x16 slot x4 mode, and one PCIe 4.0 x1 slot for graphics cards and additional peripherals. Storage is future-proof, offering two M.2 slots one supporting PCIe 5.0 x4 speeds alongside four SATA 6Gb/s ports with Intel Rapid Storage Technology and RAID support. Network connectivity shines with Realtek 2.5Gb Ethernet and ASUS LANGuard for added protection. This Asus EX-B860M-V5 Micro-ATX Motherboard provides a rich selection of USB ports, including a front-panel USB Type-C connector. Audio is immersive, powered by the Realtek 7.1 Surround Sound High Definition Audio CODEC, enhanced with premium audio capacitors and dedicated PCB layers. Cooling is optimized through a VRM heatsink design and multiple 4-pin fan headers. The Asus EX-B860M-V5 is safeguarded by ASUS 5X PROTECTION III, ensuring long-term durability with DIGI+ VRM, SafeSlot Core+, and a stainless-steel back I/O. Additional conveniences include Q-Design for streamlined installation, Lightning Boot for faster startups, and a luminous anti-moisture coating for reliability in demanding environments. This compact yet powerful Asus Motherboard measures 24.4 cm x 22.2 cm, making it ideal for space-conscious setups without compromising performance. Whether for gaming, content creation, or professional workflows, the Asus EX-B860M-V5 Motherboard delivers outstanding performance, stability, and flexibility.
Specifications
- Chipset
- INTEL B860
- M.2 slots
- 2
- RAM type
- 2 x DIMM slots, max. 128GB, DDR5; Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII)
- Form factor
- micro-ATX Form Factor; 9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )
- Memory — Type
- DDR5
- Memory — Slots
- 2
- Highlights — Model
- EX-B860M-V5
- Graphics — Graphics
- 1 x DisplayPort; 1 x HDMI™ port; Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; Supports max. 4K@60Hz as specified in DisplayPort 1.4.; Supports 4K@60Hz as specified in HDMI 2.1.; VGA resolution support depends on processors' or graphic cards' resolution.
Show all 26 specificationsShow fewer
- Expansion Slots — PCI
- Intel Core Ultra Processors (Series 2); 1 x PCIe 4.0 x16 slot; Intel B860 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x1 slot
- Highlights — Features
- 2x M.2, Realtek 2.5Gb LAN
- Memory — Maximum Memory
- Maximum Memory Capacity 128GB
- Basic Information — BIOS
- 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1x HDMI 2.1
- Connector & Ports — RAID
- SATA RAID 0/1/5/10
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback
- Connector & Ports — Audio
- 3 x Audio jacks
- Others — Special Features
- ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage protection; - SafeSlot Core+; - Stainless-steel back I/O; ASUS Q-Design; - Q-Dashboard; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - VRM heatsink design; ASUS EZ DIY; - ProCool; Non-stop Action; - Lightning Boot; Non-stop Challenger; - ASUS iCafe labs certified; Non-stop Durability; - Luminous anti-moisture coating; - USBGuard
- Highlights — Supported RAM
- 2x DDR5, Max 128GB, 8800+MT/s (OC)

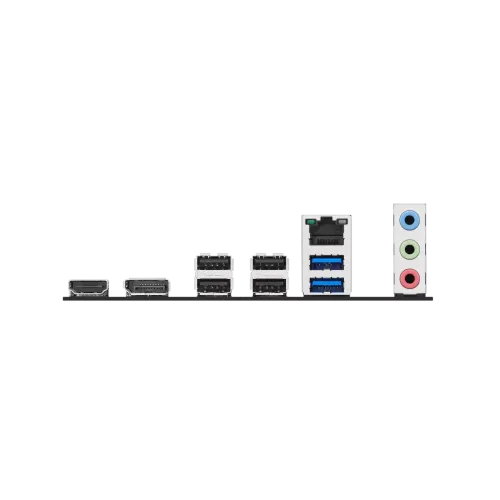

- Connector & Ports — USB (s)
- Rear USB (Total 6 ports); 2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 5Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * USB Type-C® power delivery output: max. 5V/3A; ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
- Highlights — Graphics Output
- 1x HDMI, 1x DisplayPort, 1x USB (20Gbps)
- Connector & Ports — LAN Port (s)
- 1 x Realtek 2.5Gb Ethernet; ASUS LANGuard
- Basic Information — Supported CPU
- Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
- Connector & Ports — Display Port (s)
- 1x DisplayPort 1.4a
- Connector & Ports — Supported Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; Intel Core Ultra Processors (Series 2); M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); Intel B860 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports
- Connector & Ports — Internal I/O Ports
- Fan and Cooling Related; 1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector; Storage Related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x 10-1 pin Front Panel System header
- Warranty Information — Manufacturing Warranty
- 3 Year warranty
Compare with similar products

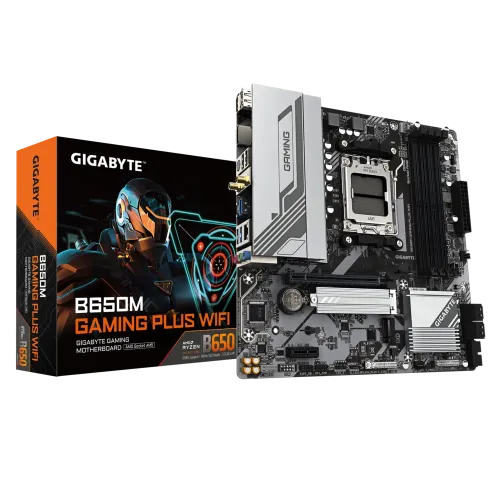

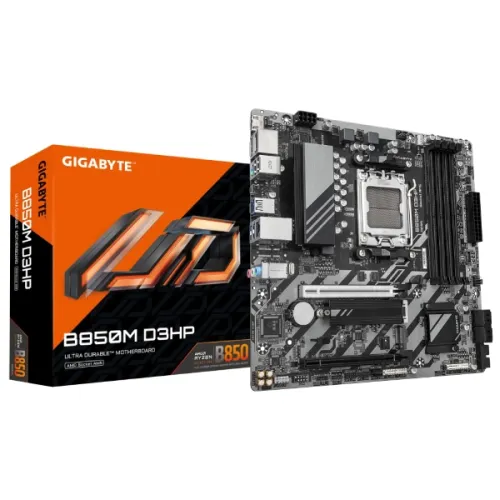

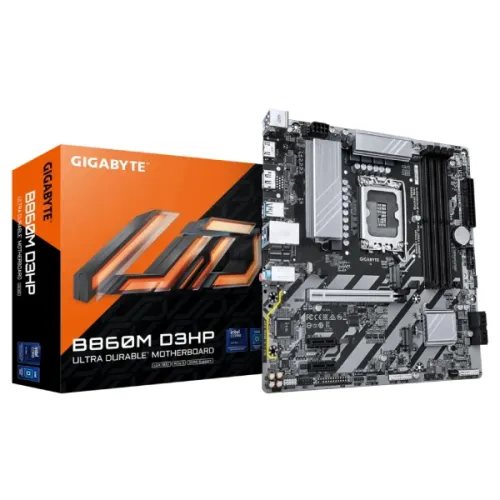

 This itemAsus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard |  GIGABYTEGIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 Motherboard |  GIGABYTEGIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard |  GIGABYTEGigabyte B860M D3HP LGA1851 Micro ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳20,900 | ৳20,900 | ৳20,900 | ৳20,900 |
| Availability | In stock | In stock | In stock | In stock |
| Brand | Asus | GIGABYTE | GIGABYTE | GIGABYTE |
| M.2 slots | 2 | — | 1 | 1 |
| RAM type | 2 x DIMM slots, max. 128GB, DDR5; Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII) | 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800/4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme; Memory Profile (XMP) memory modules | Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Form factor | micro-ATX Form Factor; 9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm ) | Micro ATX Form Factor; 24.4cm x 24.4cm | Micro ATX Form Factor; 24.4cm x 24.4cm | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Chipset | INTEL B860 | AMD B650 | AMD B650 | Intel B860 Express Chipset; |
