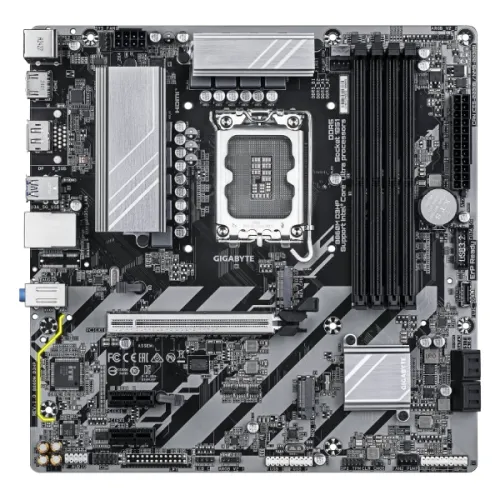

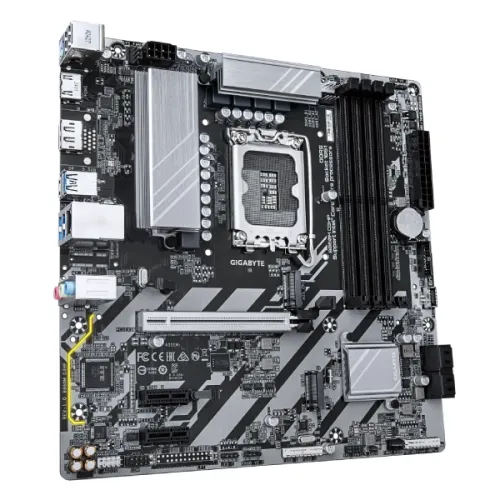

Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard

Name: Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard
Brand: GIGABYTE
Price: 20900 BDT
Availability: InStock

Model: B860M D3HPItem #: gigabyte-b860m-d3hp-motherboard

৳20,900~~৳21,500~~Save 3%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B860 Express Chipset;
1 M.2 slots
Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
Micro ATX Form Factor; 24.4cm x 24.4cm

Overview

The Gigabyte B860M D3HP is a high-performance LGA1851 Micro ATX motherboard that supports Intel Core Ultra CPUs. Built with the Intel B860 Express chipset, it can support up to 256GB of DDR5 memory at rates of up to 9066 MT/s when overclocked, resulting in improved multitasking and faster data processing. The Gigabyte LGA1851 Motherboard, with dual-channel memory architecture and compatibility with ECC and non-ECC unbuffered DIMM modules, provides versatility for a variety of computing requirements. This Gigabyte B860M D3HP LGA1851 Motherboard has integrated Intel HD Graphics support, with an HDMI connector capable of 4K resolution at 60Hz and a DisplayPort that supports 3840x2160 at 144Hz, resulting in smooth and sharp images. The Gigabyte B860M D3HP LGA1851 Motherboard includes two M.2 connectors for PCIe 4.0 SSDs and four SATA 6Gb/s ports with RAID 0, 1, 5, and 10 compatibility, ensuring fast data transfer and secure storage options. The Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard's expansion slots offer one PCIe 5.0 x16 slot for a dedicated GPU or NVMe SSD and two PCIe 3.0 x1 slots for extra peripherals. Realtek GbE LAN provides dependable networking, and many USB ports, including a USB Type-C port with USB 3.2 Gen 1 capability. The Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard features Realtek high-definition audio and supports up to 7.1-channel sound for an immersive audio experience. The I/O panel supports HDMI, DisplayPort, USB 3.2 Gen 1, USB 2.0, and a PS/2 keyboard/mouse connector for historical compatibility.

Specifications

Chipset: Intel B860 Express Chipset;
M.2 slots: 1
RAM type: Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: B860M D3HP
Graphics — Graphics: Integrated Graphics Processor-Intel HD Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 2.1 version.; (Graphics specifications may vary depending on CPU support.)

Show all 28 specifications

Expansion Slots — PCI: CPU:; - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16; * The PCIEX16 slot can only support a graphics card or an NVMe SSD.; Chipset:; - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Highlights — Features: 2x M.2 slots, Realtek GbE LAN chip
Memory — Maximum Memory: up to 256 GB (64 GB single DIMM capacity) of system memory
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI port
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-Flash; Support for Smart Backup
Highlights — Supported RAM: 4x DDR5, Max 256GB, Supports Up to 9066 (O.C)
Connector & Ports — USB (s): Chipset:; - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header; - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header); - 3 x USB 2.0/1.1 ports on the back panel; Chipset+USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports available through the internal USB headers
Highlights — Graphics Output: 1x DisplayPort, 1x HDMI port
Connector & Ports — LAN Port (s): Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Basic Information — Supported CPU: LGA1851 socket: Support for Intel® Core™ Ultra Processors; L3 cache varies with CPU
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: CPU:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU); Chipset:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB); - 4 x SATA 6Gb/s connectors
Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 1 x system fan header; 1 x system fan/water cooling pump header; 2 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x Clear CMOS jumper; Back Panel Connectors; 3 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 1 x DisplayPort; 1 x HDMI port; 3 x USB 3.2 Gen 1 ports; 1 x RJ-45 port; 3 x audio jacks; Actual support may vary by CPU.
Warranty Information — Manufacturing Warranty: 3 Year
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Compare with similar products

	This itemGigabyte B860M D3HP LGA1851 Micro ATX Motherboard	AsusAsus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard	GIGABYTEGIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 Motherboard	GIGABYTEGIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard
Price	৳20,900	৳20,900	৳20,900	৳20,900
Availability	In stock	In stock	In stock	In stock
Brand	GIGABYTE	Asus	GIGABYTE	GIGABYTE
M.2 slots	1	2	—	1
RAM type	Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules	2 x DIMM slots, max. 128GB, DDR5; Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII)	7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800/4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme; Memory Profile (XMP) memory modules	Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Form factor	Micro ATX Form Factor; 24.4cm x 24.4cm	micro-ATX Form Factor; 9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )	Micro ATX Form Factor; 24.4cm x 24.4cm	Micro ATX Form Factor; 24.4cm x 24.4cm
Chipset	Intel B860 Express Chipset;	INTEL B860	AMD B650	AMD B650
