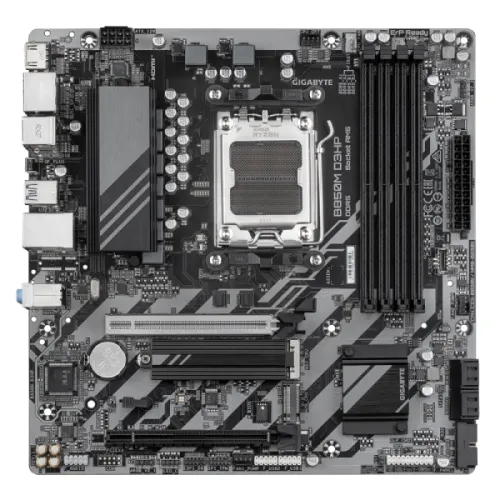

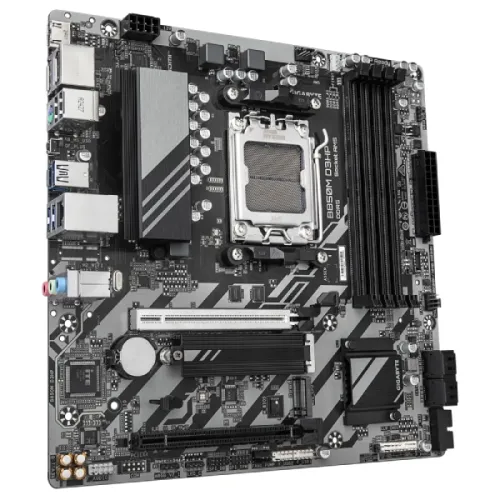

GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard

Name: GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard
Brand: GIGABYTE
Price: 20900 BDT
Availability: InStock

Model: B850M D3HPItem #: gigabyte-b850m-d3hp-motherboard

৳20,900~~৳21,500~~Save 3%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD B650 Chipset
1 M.2 slots
Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules RAM type
Micro ATX Form Factor; 24.4cm x 24.4cm

Overview

The GIGABYTE B850M D3HP is a powerful AMD AM5 Micro ATX motherboard that provides a good balance of power, expandability, and durability. It is compatible with AMD Ryzen 9000, 8000, and 7000 series processors, providing a stable base for gaming and professional applications. With four DDR5 DIMM slots, it can accommodate up to 256GB of RAM at speeds of up to 8200MHz, offering high-speed performance and overclocking capability with AMD EXPO and XMP. The GIGABYTE B850M D3HP DDR5 Micro ATX Motherboard features integrated AMD Radeon graphics with HDMI 2.1 and dual DisplayPort outputs, allowing for resolutions of up to 4K at 144Hz and triple-display capabilities. The GIGABYTE B850 Motherboard features two M.2 slots for PCIe 5.0 and PCIe 4.0 SSDs, as well as four SATA 6Gb/s connections with RAID 0, 1, 5, and 10 compatibility. Expansion slots include a PCIe 5.0 x16 slot for graphics cards and a PCIe 3.0 x4 slot for extra devices. Realtek GbE LAN provides robust wired connectivity. The GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard has several USB ports, including USB 3.2 Gen 1 and USB Type-C connectors on the back and front panel headers. RGB customization is possible using addressable Gen2 LED strip headers. Smart Fan controls, Q-Flash Plus for quick BIOS updates, and Windows 11 compatibility are among the other features. The GIGABYTE B850M D3HP AM5 Micro ATX Motherboard has a compact form factor and offers robust performance, comprehensive connections, and upgrade potential, making it an excellent choice for gaming, content creation, and productivity-focused systems.

Specifications

Chipset: AMD B650
M.2 slots: 1
RAM type: Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Form factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4 DIMM
Highlights — Model: B850M D3HP
Graphics — Graphics: Integrated Graphics Processor with AMD Radeon Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version, HDCP 2.3, and HDR.; ** Support for native HDMI 2.1 TMDS compatible ports.; - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version.; (Graphics specifications may vary depending on CPU support.); Support for up to triple-display at the same time

Show all 28 specifications

Expansion Slots — PCI: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode; AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Highlights — Features: 2x M.2 Slot, Realtek GbE LAN chip
Memory — Maximum Memory: Up to 256 GB (64 GB single DIMM capacity) of system memory
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; * RAID 5 is only available on AMD Ryzen 9000 Series Processors.; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: Norton® Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-Flash; Support for Q-Flash Plus; Support for Smart Backup
Highlights — Supported RAM: 4x DDR5, up to 256GB, 8200(OC)
Connector & Ports — USB (s): CPU:; - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support; - 1 x USB 3.2 Gen 1 port on the back panel; - 1 x USB 2.0/1.1 port on the back panel; Chipset:; - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header; - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header); - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
Highlights — Graphics Output: 2x Display Port, 1 x HDMI
Connector & Ports — LAN Port (s): Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Basic Information — Supported CPU: AMD Socket AM5, support for:; AMD Ryzen 9000 Series Processors; AMD Ryzen 8000 Series Processors; AMD Ryzen 7000 Series Processors
Connector & Ports — Display Port (s): 2 x DisplayPorts
Connector & Ports — Supported Storage: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:; AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs; AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:; AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs; 4 x SATA 6Gb/s connectors

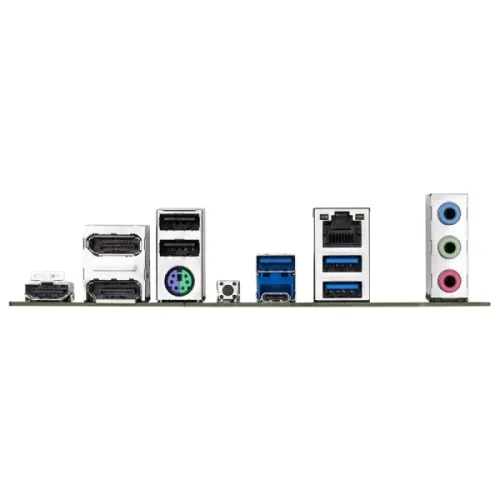

Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 1 x system fan header; 1 x system fan/water cooling pump header; 2 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x reset jumper; 1 x Clear CMOS jumper; Back Panel Connectors; 1 x HDMI port (Note); 2 x DisplayPorts (Note); 1 x PS/2 keyboard/mouse port; 1 x Q-Flash Plus button; 1 x USB Type-C® port, with USB 3.2 Gen 1 support; 3 x USB 3.2 Gen 1 ports; 2 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
