MSI B650M GAMING PLUS WIFI AM5 Motherboard
Model: B650M GAMING PLUS WIFIItem #: msi-b650m-gaming-plus-wifi-motherboard
৳21,000
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B650 Chipset
- Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO™; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7200+ MHz; • 1DPC 2R Max speed up to 6000+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5400+ MHz RAM type
- mATX; 243.84mmx243.84mm Form factor
Overview
The MSI B650M GAMING PLUS WIFI AM5 motherboard is a robust and high-performance foundation for gaming and desktop computing. It supports AMD Ryzen 8000 and 7000 Series Desktop Processors, along with DDR5 memory, capable of reaching speeds up to 7200+(OC) MHz for enhanced performance. The motherboard features an advanced 10+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost to ensure stable and efficient power delivery. Designed for an exceptional gaming experience, it includes a PCIe 4.0 slot, Lightning Gen4 M.2, and USB 3.2 Gen 2, offering fast data transfer rates and a seamless gameplay environment. The premium thermal solution features an extended heatsink design and M.2 Shield Frozr, maintaining optimal temperatures for high performance and continuous operation. AUDIO BOOST technology provides studio-grade sound quality, enhancing the immersive gaming experience. The motherboard is constructed with a high-quality 6-layer PCB made with 2oz thickened copper, ensuring improved durability and performance.
Specifications
- Chipset
- AMD B650
- RAM type
- Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO™; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7200+ MHz; • 1DPC 2R Max speed up to 6000+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5400+ MHz
- Form factor
- mATX; 243.84mmx243.84mm
- Memory — Type
- DDR5
- Memory — Slots
- 4x UDIMM
- Highlights — Model
- B650M GAMING PLUS WIFI
- Graphics — Graphics
- Support HDMI 2.1, maximum resolution of 4K 60Hz; Support DP 1.4, the maximum resolution of 4K 60Hz
- Expansion Slots — PCI
- 1x PCI-E x16 slot; • Supports x16 (For Ryzen 7000 Series processors); • Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors); • Supports x4 (For Ryzen 5 8500G processor); 2x PCI-E x1 slot; PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Show all 25 specificationsShow fewer
- Highlights — Features
- 2.5G LAN with Wi-Fi 6E Solution
- Memory — Maximum Memory
- 256GB
- Connector & Ports — HDMI
- 1x HDMI
- Connector & Ports — RAID
- Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1 for M.2 NVMe storage devices
- Basic Information — Audio
- Realtek ALC897 Codec; 7.1-Channel High Definition Audio
- Others — Special Features
- 4x EZ Debug LED
- Highlights — Supported RAM
- 4x DDR5 7200+(OC) MHz

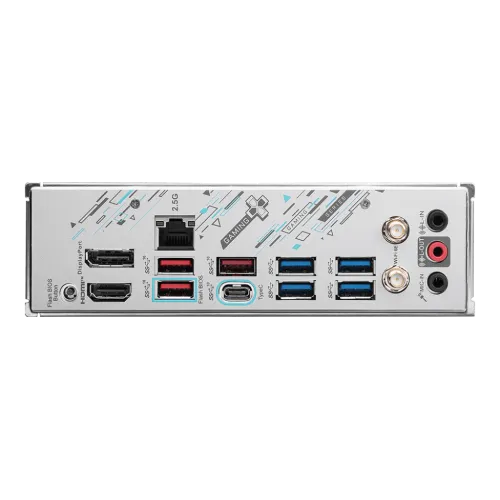

- Connector & Ports — USB (s)
- 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 3x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear); 1x USB 10Gbps Type C (Front)
- Highlights — Graphics Output
- 1x HDMI, 1x Display Port
- Connector & Ports — LAN Port (s)
- Realtek RTL8125BG 2.5Gbps LAN
- Basic Information — Supported CPU
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5
- Connector & Ports — Display Port (s)
- 1x DisplayPort
- Connector & Ports — Supported Storage
- 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G; • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed
- Connector & Ports — Internal I/O Ports
- 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 3x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 2x RGB LED connector(JRGB); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — Wireless Communication module
- AMD Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX; Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.3
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM pin header(Support TPM 2.0)
Compare with similar products
 This itemMSI B650M GAMING PLUS WIFI AM5 Motherboard |  AsusAsus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard |  GIGABYTEGIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 Motherboard |  GIGABYTEGIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳21,000 | ৳20,900 | ৳20,900 | ৳20,900 |
| Availability | Out of stock | In stock | In stock | In stock |
| Brand | MSI | Asus | GIGABYTE | GIGABYTE |
| RAM type | Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO™; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7200+ MHz; • 1DPC 2R Max speed up to 6000+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5400+ MHz | 2 x DIMM slots, max. 128GB, DDR5; Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII) | 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800/4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme; Memory Profile (XMP) memory modules | Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Form factor | mATX; 243.84mmx243.84mm | micro-ATX Form Factor; 9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm ) | Micro ATX Form Factor; 24.4cm x 24.4cm | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Chipset | AMD B650 | INTEL B860 | AMD B650 | AMD B650 |
| M.2 slots | — | 2 | — | 1 |
