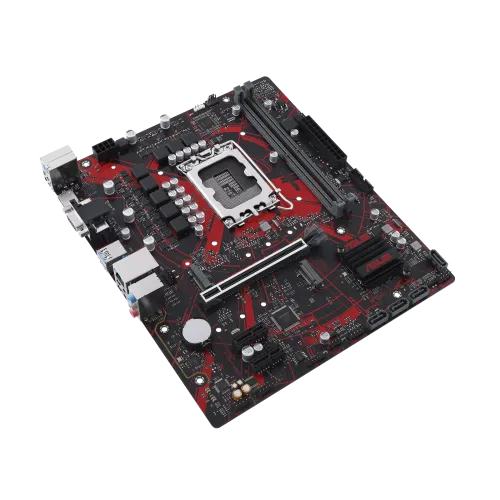

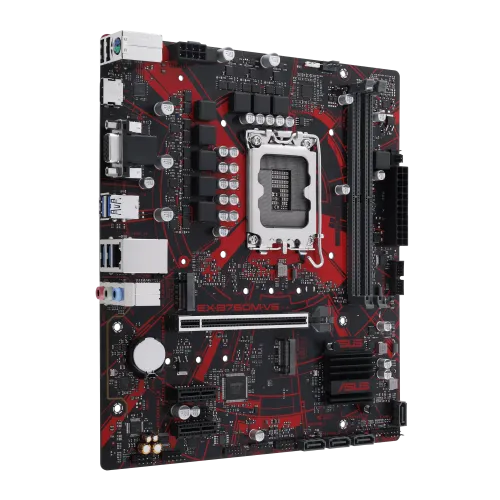

ASUS EX-B760M-V5 D4 mATX Motherboard

Name: ASUS EX-B760M-V5 D4 mATX Motherboard
Brand: Asus
Price: 16000 BDT
Availability: OutOfStock

Model: EX-B760M-V5 D4Item #: asus-ex-b760m-v5-d4-motherboard

৳16,000

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Chipset
2 M.2 slots
5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP) RAM type
mATX Form Factor; 9.6 inch x 8.3 inch(24.4cm x 21.1cm)

Overview

The ASUS EX-B760M-V5 D4 is an Intel B760 LGA 1700 mATX motherboard designed to deliver robust performance and durability for iCafes, gaming systems, and quality-driven businesses. Featuring PCIe 4.0, 8 power stages, and Realtek 2.5 Gb Ethernet, this motherboard offers cutting-edge technology and reliability. It is the ideal choice for non-stop action, making it perfect for iCafe setups, configure-to-order gaming systems, and professional environments focused on quality. The ASUS EX-B760M-V5 D4, with its luminous anti-moisture coating, protects against moisture damage, extending the motherboard's lifespan. The motherboard also includes LANGuard for enhanced surge protection and signal delivery, SafeSlot Core+ for reinforced PCIe slot protection, USBGuard to prevent overcurrent and short-circuit damage to USB devices, and a stainless-steel back I/O that is corrosion-resistant for longer-lasting performance. Its 5X Protection III provides comprehensive protection features ensuring overall system stability and reliability. The ASUS EX-B760M-V5 D4 supports DDR4 5333 (OC) for high-speed memory performance and is equipped with two M.2 slots for fast storage solutions. Its PCIe 4.0 compatibility supports the latest graphics cards and peripherals, while the Realtek 2.5 Gb Ethernet ensures quick and reliable networking. The motherboard is ASUS Beyond VR ready, providing immersive virtual reality experiences, and offers epic audio for superior sound quality in games and multimedia applications. The ASUS EX-B760M-V5 D4 is ASUS iCafé LAB-certified, ensuring reliable performance in iCafe environments and compatibility tested with diskless-system use for efficient network booting. Extensive testing with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards, and more ensures broad compatibility and top-tier performance.

Specifications

Chipset: Intel B760 Chipset
M.2 slots: 2
RAM type: 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP)
Form factor: mATX Form Factor; 9.6 inch x 8.3 inch(24.4cm x 21.1cm)
Memory — Type: DDR4
Memory — Slots: 2x DIMM
Highlights — Model: EX-B760M-V5 D4
Graphics — Graphics: Supports 4K@60Hz as specified in HDMI 2.1.

Show all 26 specifications

Expansion Slots — PCI: Intel Core Processors (14th & 13th & 12th Gen); 1 x PCIe 4.0 x16 slot; Intel B760 Chipset; 2 x PCIe 4.0 x1 slots
Highlights — Features: 1x VGA port, 1 x HDMI port
Memory — Maximum Memory: Max. 64GB
Basic Information — BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Connector & Ports — HDMI: 1 x HDMI port
Connector & Ports — RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Basic Information — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Premium audio capacitors; - Audio Shielding; - Dedicated audio PCB layers
Connector & Ports — Audio: 3x Audio jacks
Others — Special Features: ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage Protection; - SafeSlot Core+; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-DIMM; - Q-Slot; - Q-LED Core; ASUS EZ DIY; - ProCool; Non-stop Action; - Lightning Boot; Non-stop Challenger; - ASUS iCafe labs certified; Non-stop Durability; - Luminous anti-moisture coating; - USBGuard
Highlights — Supported RAM: 2x DDR4, Max 64GB 5333(O.C.)
Connector & Ports — USB (s): Rear USB (Total 6 ports); 4 x USB 3.2 Gen 1 ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 6 ports); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Connector & Ports — VGA (s): 1 x VGA port
Highlights — Graphics Output: 1x HDMI port, 1x DisplayPort
Connector & Ports — LAN Port (s): 1 x Realtek 2.5Gb Ethernet port
Basic Information — Supported CPU: Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Connector & Ports — Supported Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; Intel Core Processors (14th & 13th & 12th Gen); M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports
Connector & Ports — Internal I/O Ports: Internal I/O Connectors; Fan and cooling related; 1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 3 USB 2.0 ports; Miscellaneous; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x Speaker header; 1 x 10-1 pin System Panel header
Warranty Information — Manufacturing Warranty: 3 years warranty

Compare with similar products

	This itemASUS EX-B760M-V5 D4 mATX Motherboard	ASRockASRock B760M PG Lightning DDR5 14th, 13th and 12th Gen Micro ATX Motherboard	GIGABYTEGIGABYTE B650M AORUS ELITE DDR5 AMD AM5 Micro-ATX Motherboard	AsusASUS Pro B660M-C D4-CSM mATX Motherboard
Price	৳16,000	৳15,900	৳16,000	৳16,200
Availability	Out of stock	In stock	Out of stock	In stock
Brand	Asus	ASRock	GIGABYTE	Asus
M.2 slots	2	1	—	—
RAM type	5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP)	Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC); Supports Intel® Extreme Memory Profile (XMP) 3.0	6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules	5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); Optimem
Form factor	mATX Form Factor; 9.6 inch x 8.3 inch(24.4cm x 21.1cm)	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm	Micro ATX Form Factor; 24.4cm x 24.4cm	microATX; 24.4cm x 24.4cm
Chipset	Intel B760 Chipset	Intel B760	AMD B650	Intel B660 Chipset
