ASUS PRIME H510M-K R2.0 10th and 11th Gen Micro-ATX Motherboard
Model: PRIME H510M-K R2.0Item #: asus-prime-h510m-k-r2-0-motherboard
৳10,700৳11,500Save 7%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel H470 Chipset
- 1 M.2 slots
- DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP) RAM type
- micro-ATX Form Factor; 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )
Overview

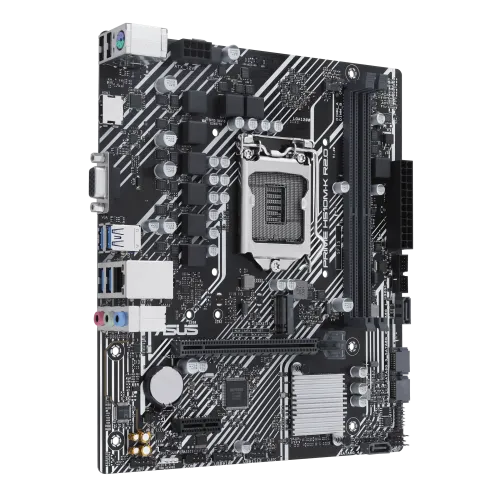

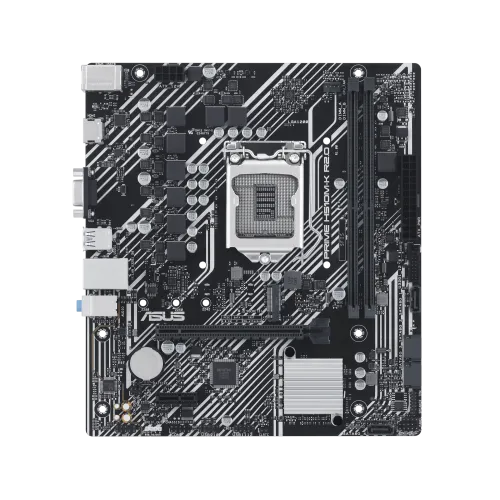

The ASUS PRIME H510M-K R2.0 is a versatile micro-ATX motherboard designed for compatibility with both 10th and 11th Gen Intel processors through its LGA 1200 socket. Featuring an Intel H510 chipset, this motherboard supports ultrafast connectivity with PCIe 4.0, a 32Gbps M.2 slot for rapid storage, 1 Gb Ethernet for reliable networking, and USB 3.2 Gen 1 Type-A ports for quick data transfer. For cooling, it includes a PCH heatsink and FAN Xpert technology to ensure optimal thermal management. Additionally, the motherboard offers 5X Protection III, a suite of hardware safeguards that provides overvoltage, short-circuit, and other protective features for enhanced durability and stability. This combination of features makes the ASUS PRIME H510M-K R2.0 a reliable and efficient choice for building a high-performance computing system.
Specifications
- Chipset
- Intel H470 Chipset
- M.2 slots
- 1
- RAM type
- DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP)
- Form factor
- micro-ATX Form Factor; 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )
- Memory — Type
- DDR4
- Memory — Slots
- 2 x DIMM
- Highlights — Model
- PRIME H510M-K R2.0
- Graphics — Graphics
- Only Intel 11th Gen processors support HDMI 2.1 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Show all 25 specificationsShow fewer
- Expansion Slots — PCI
- Intel 11th & 10th Gen Processors; 1 x PCIe 4.0/3.0 x16 slot; - Intel 11th Gen processors support PCIe 4.0 x16; - Intel 10th Gen processors support PCIe 3.0 x16; Intel H470 Chipset; 1 x PCIe 3.0 x1 slot
- Highlights — Features
- 1 x Realtek 1Gb Ethernet
- Memory — Maximum Memory
- Max. 64GB
- Basic Information — BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1x HDMI 1.4
- Connector & Ports — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers
- Others — Special Features
- ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage Protection; - SafeSlot Core; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - Aluminum heatsink design; ASUS Lighting Control; - RGB header
- Highlights — Supported RAM
- 2x DDR4, Max 64GB 3200(O.C.)
- Connector & Ports — USB (s)

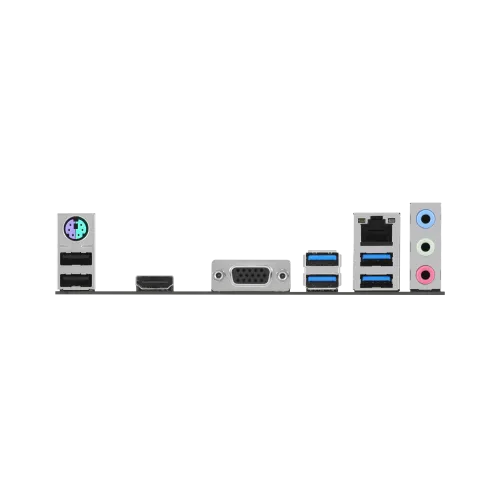

- Rear USB (Total 6 ports); 4 x USB 3.2 Gen 1 ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 6 ports); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Connector & Ports — VGA (s)
- 1x VGA port
- Highlights — Graphics Output
- 1x HDMI port, 1x VGA port
- Connector & Ports — LAN Port (s)
- 1 x Realtek 1Gb Ethernet port
- Basic Information — Supported CPU
- Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel 14 nm CPU; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Connector & Ports — Supported Storage
- Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports; Intel H470 Chipset; M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes); 4 x SATA 6Gb/s ports
- Connector & Ports — Internal I/O Ports
- Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 1 x RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x 10-1 pin System Panel header
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x SPI TPM header (14-1pin)
