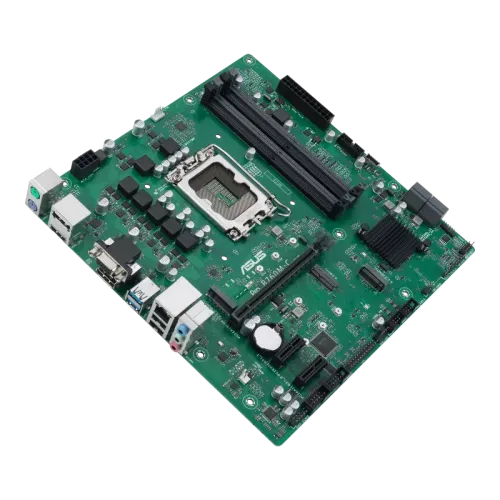

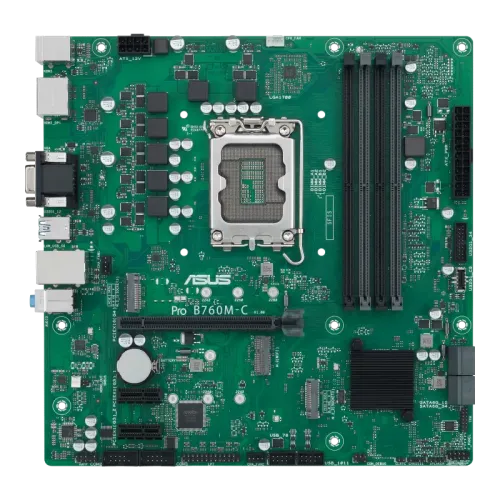

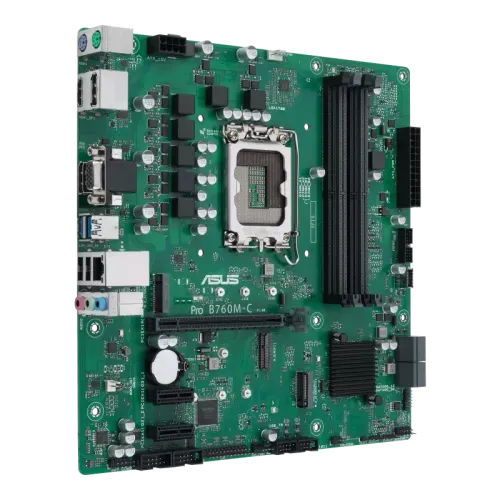

ASUS PRO B760M-C-CSM Micro-ATX Motherboard
Model: PRO B760M-C-CSMItem #: asus-pro-b760m-c-csm-motherboard
৳16,900৳17,000Save 1%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel B760 Chipset
- DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); Optimem II RAM type
- mATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Overview
The ASUS PRO B760M-C-CSM is a 14th gen micro-ATX motherboard designed for business use. It supports Intel's LGA1700 socket, making it compatible with 14th Gen Intel Core processors as well as 13th, 12th Gen Intel Core, Pentium Gold, and Celeron processors. The motherboard features the Intel B760 chipset and supports up to 192GB of DDR5 memory with speeds up to 6200(OC). It has four DIMM slots with support for dual-channel memory architecture and Intel Extreme Memory Profile (XMP). The Pro B760M-C-CSM provides multiple connectivity options, including 2 x DisplayPort, 1 x VGA port, and 1 x HDMI port. It offers expansion slots such as 1 x PCIe 4.0/3.0 x16 and 2 x PCIe 3.0 x1 for additional devices. Storage options include 2 x M.2 slots and 4 x SATA 6Gb/s ports, and it also features 1 x Intel 1Gb Ethernet port for network connectivity. The motherboard offers various USB ports, audio support with a Realtek 7.1 Surround Sound High Definition Audio CODEC, and comes with ASUS Q-Design features for easy installation and maintenance. It is designed with business-focused features like ASUS Self Recovering BIOS, ASUS Event Log, and 24/7 reliability. The ASUS PRO B760M-C-CSM is a reliable and feature-rich motherboard suitable for business users in need of a compact form factor.
Specifications
- Chipset
- Intel B760 Chipset
- RAM type
- DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); Optimem II
- Form factor
- mATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
- Memory — Type
- DDR5
- Memory — Slots
- 4 x DIMM
- Highlights — Model
- PRO B760M-C-CSM
- Graphics — Graphics
- 2 x DisplayPort**; 1 x VGA port; 1 x HDMI port***; ** Support max. 4K@60Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI 2.1.
- Expansion Slots — PCI
- Intel 13th & 12th Gen Processors; 1 x PCIe 4.0/3.0 x16 slot; Intel B760 Chipset; 2 x PCIe 3.0 x1 slots;
Show all 28 specificationsShow fewer
- Highlights — Features
- 1 x Intel 1Gb Ethernet
- Memory — Maximum Memory
- Max. 192GB
- Basic Information — BIOS
- 128Mb Flash ROM
- Connector & Ports — HDMI
- 1 x HDMI
- Connector & Ports — RAID
- Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback;
- Connector & Ports — Audio
- 3 x Audio jacks
- Others — Bundled Software
- ASUS Exclusive Software; IT Management software supported; - ASUS Control Center Express (ACCE);
- Others — Special Features
- ASUS Q-Design; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS EZ DIY; - Box Headers; Bespoke Motherboard Design & Business Focused Features; - ASUS Self Recovering BIOS; - ASUS Event Log; - ASUS Commercial BIOS kit*; - Anti-Moisture Coating; - 24/7 Reliability; - Overcurrent Protection
- Connector & Ports — USB (s)
- Rear USB (Total 4 ports); 2 x USB 3.2 Gen 1 ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 7 ports); 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports;
- Connector & Ports — VGA (s)
- 1 x VGA port
- Highlights — Graphics Output
- 2 x DisplayPort, 1 x VGA, 1 x HDMI
- Connector & Ports — LAN Port (s)
- 1 x Intel 1Gb Ethernet; ASUS LANGuard
- Basic Information — Supported CPU
- Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Connector & Ports — Display Port (s)
- 2 x DisplayPort
- Connector & Ports — Supported Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports
- Connector & Ports — Internal I/O Ports
- Fan and Cooling related; 1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 1 x Clear CMOS header; 1 x Chassis Intrude header; 2 x COM Port headers; 1 x Front Panel Audio header (AAFP); 1 x COM debug header; 1 x LPT header; 1 x Mono-out header (with Amp IC); 1 x M.2 slot (Key E); 1 x SMBUS header; 1 x Speaker header; 1 x 10-1 pin System Panel header
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — Wireless Communication module
- M.2 slot only (Key E, CNVi & PCIe)*; * Wi-Fi module is sold separately.
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x SPI TPM header (14-1pin)
Compare with similar products
 This itemASUS PRO B760M-C-CSM Micro-ATX Motherboard |  MSIMSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard |  AsusASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard |  GIGABYTEGIGABYTE B650M GAMING WIFI mATX AM5 Motherboard | |
|---|---|---|---|---|
| Price | ৳16,900 | ৳16,900 | ৳16,900 | ৳16,900 |
| Availability | In stock | In stock | In stock | In stock |
| Brand | Asus | MSI | Asus | GIGABYTE |
| RAM type | DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); Optimem II | Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7200+ MHz; • 1DPC 2R Max speed up to 6000+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5400+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO | 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP) | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme; Memory Profile (XMP) memory modules |
| Form factor | mATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) | mATX; 243.84mmx243.84mm | Mini ITX Form Factor; 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm ) | Micro ATX Form Factor; 24.0cm x 22.5cm |
| Chipset | Intel B760 Chipset | AMD B650 | Intel H610 Chipset | AMD B650 |
| M.2 slots | — | — | 1 | 1 |
