ASUS Pro WS TRX50-SAGE WIFI AMD sTR5 Workstation Motherboard

Name: ASUS Pro WS TRX50-SAGE WIFI AMD sTR5 Workstation Motherboard
Brand: Asus
Price: 130500 BDT
Availability: InStock

Model: Pro WS TRX50-SAGE WIFIItem #: asus-pro-ws-trx50-sage-wifi-motherboard

৳130,500~~৳143,550~~Save 9%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD TRX50 Chipset
3 M.2 slots
4 Channel Memory Architecture; * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product RAM type
CEB Form Factor; 12 inch x 11 inch; (30.5 cm x 28.3 cm)

Overview

The ASUS Pro WS TRX50‑SAGE WIFI Workstation Motherboard is a professional‑grade solution built for creators, engineers, and enterprises who demand uncompromising performance. Powered by the AMD TRX50 chipset and supporting Ryzen Threadripper PRO 9000 & 7000 WX‑Series processors, this ASUS Workstation WiFi Motherboard delivers cutting‑edge computing power with advanced scalability, connectivity, and durability.

Performance and Compatibility

Featuring the AMD sTR5 socket, the ASUS Pro WS TRX50‑SAGE WIFI supports Ryzen Threadripper PRO and Threadripper CPUs, offering massive multi‑core performance for rendering, simulation, and AI workloads. With 4 DDR5 DIMM slots and quad‑channel memory architecture, this ASUS Motherboard for Threadripper CPU ensures high bandwidth and stability for professional applications.

Expansion and Storage

This ASUS TRX50 Workstation Motherboard provides versatile expansion with 2 PCIe 5.0 x16 slots, 1 PCIe 5.0 x16 slot (x8 mode), 1 PCIe 4.0 x16 slot, and 1 PCIe 4.0 x16 slot (x4 mode). Storage options include 3 M.2 slots (PCIe 5.0 and 4.0), 4 SATA 6Gb/s ports, and 1 SlimSAS port supporting PCIe 4.0 NVMe devices. With AMD RAIDXpert2 technology, users can configure PCIe and SATA RAID 0/1/5/10 for performance and redundancy.

Connectivity and I/O Features

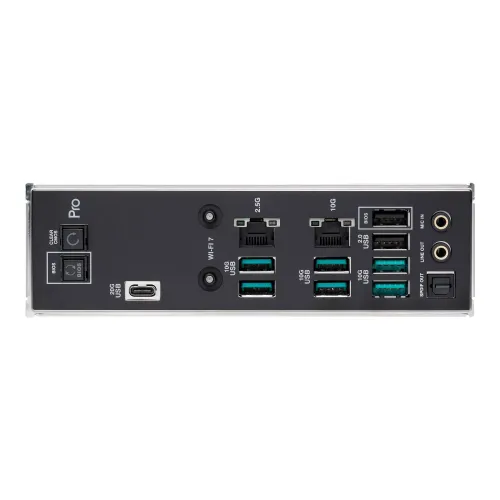

The rear I/O panel offers 1 USB 20Gbps Type‑C port, 6 USB 10Gbps Type‑A ports, and 2 USB 2.0 ports. Networking is powered by Marvell AQtion 10Gb Ethernet and Intel 2.5Gb Ethernet, while integrated Wi‑Fi 7 and Bluetooth 5.4 provide next‑generation wireless connectivity. Front panel support includes USB 20Gbps Type‑C with 27W PD/QC4+, USB 5Gbps, and multiple USB 2.0 headers, making this ASUS Workstation WiFi Motherboard ideal for modern professional setups.

Audio and Multimedia

Equipped with Realtek ALC1220P Surround Sound HD Audio CODEC, the ASUS Pro WS TRX50‑SAGE WIFI delivers high‑fidelity audio with 120 dB SNR playback and 113 dB SNR recording. Features include impedance sensing, premium capacitors, audio shielding, and optical S/PDIF out, ensuring clear sound for content creation and multimedia workflows.

Cooling and Reliability

Designed for 24/7 reliability, the motherboard integrates advanced thermal solutions including VRM heatsinks with active fans, M.2 heatsinks, and onboard thermal pads. ASUS Q‑Design features such as Q‑DIMM, Q‑Slot, and BIOS FlashBack™ simplify installation and maintenance. With CEB form factor (12 × 11 inches), this ASUS Workstation Motherboard fits workstation chassis while delivering enterprise‑grade durability.

Specifications

Chipset: AMD TRX50 Chipset
M.2 slots: 3
RAM type: 4 Channel Memory Architecture; * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product
Form factor: CEB Form Factor; 12 inch x 11 inch; (30.5 cm x 28.3 cm)
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: Pro WS TRX50-SAGE WIFI
Highlights — Storage: 3 x M.2, 1 x SlimSAS, 4 x SATA 6Gb/s

Show all 25 specifications

Expansion Slots — PCI: AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors; 2 x PCIe 5.0 x16 slots; 1 x PCIe 5.0 x16 slot(x8 mode); 1 x PCIe 4.0 x16 slot; 1 x PCIe 4.0 x16 slot(x4 mode); * Please check the PCIe bifurcation table on the support site
Highlights — Features: 1 x 10Gb Ethernet, WiFi 7, Bluetooth 5.4
Basic Information — BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Connector & Ports — RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
Basic Information — Audio: Realtek ALC1220P Surround Sound High Definition Audio CODEC
Connector & Ports — Audio: Realtek ALC1220P Surround Sound High Definition Audio CODEC*; - Impedance sense for front and rear headphone outputs; - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in); - Supports up to 32-Bit/192 kHz playback"; Audio Features; - Audio Shielding; - Rear optical S/PDIF out port; - Dedicated audio PCB layers; - Unique de-pop circuit; * A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.; * This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.
Others — Bundled Software: ASUS Exclusive Software; Armoury Crate; - Fan Xpert 4; ASUS CPU-Z; IT Management software supported; - ASUS Control Center Express(ACCE); Adobe Creative Cloud (Free Trial); Norton 360 Deluxe (60 Days Free Trial); WinRAR (40 Days Free Trial); UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUSTeK. EzFlash Utility; - FlexKey
Others — Special Features: ASUS Q-Design; - Q-Code; - M.2 Q-Latch; - Q-Connector; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink and onboard thermal pads; - VRM heatsink design with active fans; ASUS EZ DIY; - BIOS FlashBack™ button; - BIOS FlashBack™ LED; - Clear CMOS button; - ProCool II; - Pre-mounted I/O shield; - SafeSlot; - SafeDIMM; Bespoke Motherboard Design & Business Focused Features; - 24/7 Reliability; - Overcurrent Protection
Highlights — Supported RAM: 4x DIMM, DDR5, 8 Channel Memory Architecture
Connector & Ports — USB (s): Rear USB (Total 9 ports); 1 x USB 20Gbps port (1 x USB Type-C®); 6 x USB 10Gbps ports (6 x Type-A ); 2 x USB 2.0 ports (2 x Type-A ); Front USB (Total 7 ports); 1 x USB 20Gbpsconnector (supports USB Type-C® with up to 27W PD/QC4+); 1 x USB 5Gbps header supports 2 additional USB 5G ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Connector & Ports — LAN Port (s): 1 x Marvell AQtion 10Gb Ethernet; 1 x Intel I226-LM 2.5Gb Ethernet
Basic Information — Supported CPU: AMD Socket sTR5 for Ryzen Threadripper PRO 9000 & 7000 WX-Series*
Connector & Ports — Supported Storage: Total supports 3 x M.2 slots, 4 x SATA 6Gb/s ports; AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); AMD TRX50 Chipset; M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports; 1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device
Connector & Ports — Internal I/O Ports: Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x W_PUMP+ header; 4 x 4-pin Chassis Fan headers; 2 x 4-pin VRM Fan header (with VRM FAN onboard); Power related; 2 x 24-pin Main Power connectors; 2 x 8-pin +12V Power connectors; 2 x 8-pin PCIe to CPU power connectors; 1 x 6-pin PCIe Power connector; 1 x 8-pin PCIe Power connector; Storage related; 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports; 1 x SlimSAS port; USB; 1 x USB 20Gbps connector supports USB Type-C®; 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; Miscellaneous; 1 x BMC header; 1 x COM Port header; 1 x USB4 header; 1 x FlexKey button; 1 x Front panel audio header (F_AUDIO); 1 x Start button; 1 x Safe boot button; 1 x ReTry button; 1 x LN2 mode jumper; 1 x Slow mode switch; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin system panel header; 1 x Chassis intrusion header; 1 x Thermal Sensor header; ; Back Panel I/O Ports; 1 x USB 20Gbps port (1 x USB Type-C®); 6 x USB 10Gbps ports (6 x Type-A); 2 x USB 2.0 port (2 x Type-A); 1 x Wi-Fi Module; 1 x Marvell® AQtion 10Gb Ethernet port; 1 x Intel® 2.5Gb Ethernet port; 2 x Audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack button; 1 x Clear CMOS button
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: Wi-Fi 7*; 2x2 Wi-Fi 7 (802.11be); Supports 2.4/5/6GHz frequency band**; Support Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.; Bluetooth® v5.4***; *Wi-Fi features may vary depending on the operating system; For Windows 11, Wi-Fi 7 will require SV3 or later version for full functions, Windows 11 SV1/2 only support Wi-Fi 6E.; For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.; ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.; *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Connector & Ports — TPM (Trusted Platform Module ): 1 x SPI TPM header (14-1pin)

Compare with similar products

	This itemASUS Pro WS TRX50-SAGE WIFI AMD sTR5 Workstation Motherboard	MSIMSI MEG Z890 ACE LGA 1851 ATX Motherboard	AsusASUS ROG MAXIMUS Z890 HERO BTF LGA1851 ATX Motherboard	AsusAsus ROG CROSSHAIR X870E DARK HERO AMD AM5 ATX Motherboard
Price	৳130,500	৳103,900	৳106,500	৳112,000
Availability	In stock	Out of stock	In stock	Out of stock
Brand	Asus	MSI	Asus	Asus
M.2 slots	3	5	6	5
RAM type	4 Channel Memory Architecture; * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product	Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 9200+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; • 2DPC 1R Max speed up to 4800+ MT/s; • 2DPC 2R Max speed up to 4800+ MT/s	Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module; Supports DIMM Flex; NitroPath DRAM Technology; DIMM FIT; ASUS Enhanced Memory Profile III (AEMP III)	Supports up to; 8600+MT/s(OC)/8200+MT/s(OC)* with Ryzen™ 9000 Series Processors,; 9600+MT/s(OC)/9200+MT/s(OC)* with Ryzen™ 8000 Series Processors,; 8000+MT/s(OC)/8000+MT/s(OC)* with Ryzen™ 7000 Series Processors,; ECC and Non-ECC, Un-buffered DIMM*"; Dual channel memory architecture ; Supports AMD Extended Profiles for Overclocking (EXPO™); Supports DIMM Fit and DIMM Fit Pro; NitroPath DRAM Technology; ASUS Enhanced Memory Profile (AEMP)
Form factor	CEB Form Factor; 12 inch x 11 inch; (30.5 cm x 28.3 cm)	ATX (243.84mmx304.8mm)	ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )	ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Chipset	AMD TRX50 Chipset	INTEL Z890	Intel Z890 Chipset	AMD X870E
