ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard

Name: ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard
Brand: Asus
Price: 52000 BDT
Availability: OutOfStock

Model: TUF GAMING Z790-BTF WIFIItem #: asus-tuf-gaming-z790-btf-wifi-motherboard

৳52,000

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel Z790 Chipset
4 M.2 slots
7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory RAM type
ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Overview

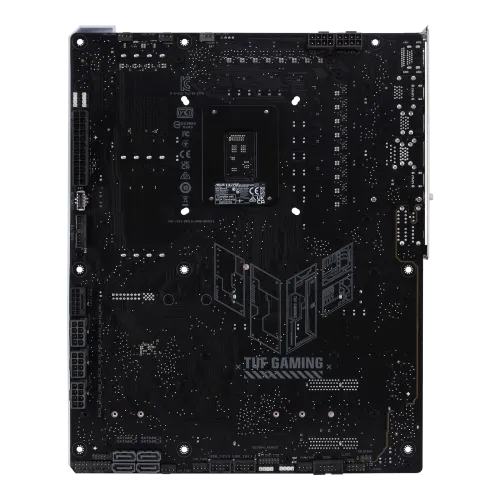

The ASUS TUF GAMING Z790-BTF WIFI ATX motherboard combines the essential elements of the latest Intel processors with game-ready features and proven durability. Representing a new era for PC DIY gamers, the “BTF” in its name stands for “Back To (the) Future.” This advanced BTF series motherboard is designed to hide all its connectors on the underside, offering clean cable management and a minimalist build appearance. Additionally, it delivers up to 600 watts for BTF graphics cards through a high-power graphics card slot. The motherboard supports 14th, 13th, and 12th Gen Intel processors (LGA1700) and up to 4x DDR5 RAM with a maximum capacity of 192GB and speeds up to 7200(O.C.). For graphics output, it includes 1x HDMI and 1x DisplayPort. Additional features include Intel 2.5Gb Ethernet and Intel Wi-Fi 7, ensuring robust and high-speed connectivity options.

Specifications

Chipset: Intel Z790 Chipset
M.2 slots: 4
RAM type: 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Form factor: ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: TUF GAMING Z790-BTF WIFI
Graphics — Graphics: 1 x DisplayPort; 1 x HDMI port; Supports 4K@60Hz as specified in HDMI 2.1.; VGA resolution support depends on the processors' or graphic cards' resolution.

Show all 28 specifications

Expansion Slots — PCI: Intel Core Processors (14th & 13th & 12th Gen); 1 x PCIe 5.0 x16 slot; Intel Z790 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x4 slot
Highlights — Features: 1 x Intel 2.5Gb Ethernet, Intel Wi-Fi 7
Memory — Maximum Memory: 192GB
Basic Information — BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Connector & Ports — HDMI: 1 x HDMI port
Connector & Ports — RAID: Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Basic Information — Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC; - Impedance sense for front and rear headphone outputs; - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in); - Supports up to 32-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Rear optical S/PDIF out port; - Dedicated audio PCB layers; - Audio Cover; - Unique de-pop circuit; * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Connector & Ports — Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC; - Impedance sense for front and rear headphone outputs; - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in); - Supports up to 32-Bit/192 kHz playback*; Audio Features; - Audio Shielding; - Rear optical S/PDIF out port; - Dedicated audio PCB layers; - Audio Cover; - Unique de-pop circuit
Others — Bundled Software: ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert 4 (with AI Cooling II); - Power Saving; - Two-Way AI Noise Cancelation; AI Suite 3; - TurboV EVO; - DIGI+ VRM; - PC Cleaner; MyASUS; TUF GAMING CPU-Z; DTS Audio Processing; Norton 360 for Gamers (60 Days Free Trial); WinRAR (40 Days Free Trial); UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode; - ASUS MyHotkey
Others — Special Features: ASUS TUF PROTECTION; - DIGI+ VRM (- Digital power design with DrMOS); - ESD Guards; - TUF LANGuard; - Overvoltage protection; - SafeSlot; - Stainless-steel back I/O; ASUS Q-Design; - M.2 Q-Latch; - PCIe Slot Q-Release; - Q-Antenna; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - CPU Socket lever protector; - ProCool; - Pre-mounted I/O shield; - SafeDIMM; AURA Sync; - Aura RGB header; - Addressable Gen 2 headers
Highlights — Supported RAM: 4x DDR5, Max 192GB 7200(O.C.)

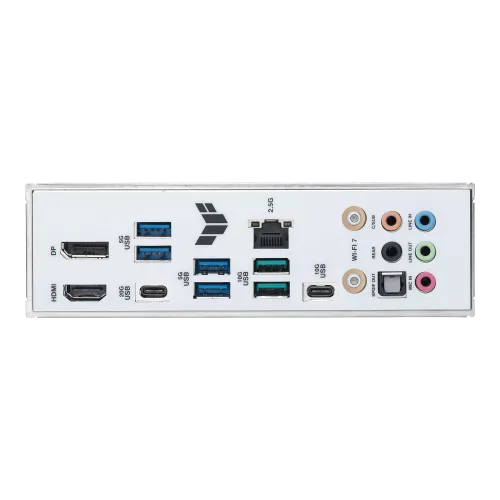

Connector & Ports — USB (s): Rear USB (Total 8 ports); 1 x USB 20Gbps port (1 x USB Type-C); 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C); 4 x USB 5Gbps ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 10Gbps connector (supports USB Type-C); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort
Connector & Ports — LAN Port (s): 1 x Intel 2.5Gb Ethernet; ASUS LANGuard
Basic Information — Supported CPU: Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports; Intel Core Processors (14th & 13th & 12th Gen); M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode); Intel Z790 Chipset; M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes); 4 x SATA 6Gb/s ports
Connector & Ports — Internal I/O Ports: Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connectors; 1 x Graphics Card High-Power slot; 1 x 12V-2X6 Auxiliary Power connector; 3 x 8-pin PCIe Power connectors; Storage Related; 4 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 10Gbps connector (supports USB Type-C); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x 20-3 pin System Panel header with chassis intrusion function; 1 x Thunderbolt (USB4) header
Warranty Information — Manufacturing Warranty: 3 years warranty
Connector & Ports — Wireless Communication module: Intel Wi-Fi 7; 2x2 Wi-Fi 7 (802.11be); Supports 2.4/5/6GHz frequency band; Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate.; Bluetooth v5.4
