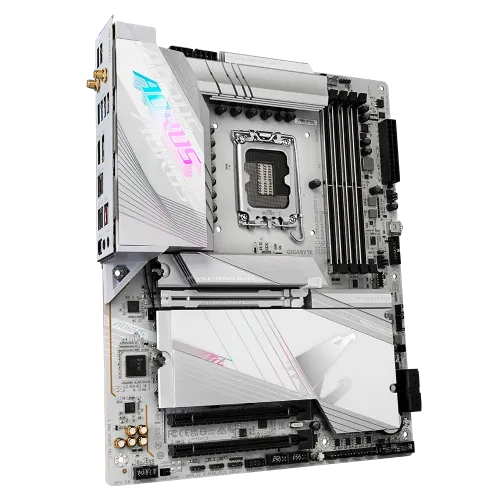

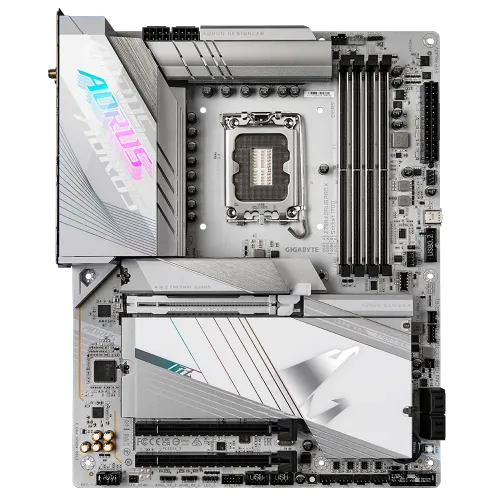

GIGABYTE Z790 AORUS PRO X ATX Motherboard

Name: GIGABYTE Z790 AORUS PRO X ATX Motherboard
Brand: GIGABYTE
Price: 51900 BDT
Availability: OutOfStock

Model: Z790 AORUS PRO XItem #: gigabyte-z790-aorus-pro-x-atx-motherboard

৳51,900

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel Z790 Express Chipset
Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
ATX Form Factor; 30.5cm x 24.4cm

Overview

The GIGABYTE Z790 AORUS PRO X ATX Motherboard is a high-performance motherboard intended for experienced PC users and gamers. It supports Intel Core 14th and 13th-generation CPUs, allowing backward compatibility with earlier CPU offers. This motherboard has an innovative power supply system with a VRM solution with 18+1+2 phases. It provides a stable and efficient power supply to the CPU, allowing for maximum performance and overclocking. This motherboard offers exceptional memory performance because of its four DIMM slots that enable DDR5 memory. It also supports XMP 3.0 RAM modules, allowing for simple overclocking. The PCIe 5.0 x16 slot provides 10 times the strength for graphics card compatibility, guaranteeing that your GPU functions at peak performance. The M.2 heatsinks include a screwless design for fast installation and a quick-release design for easy M.2 SSD servicing. It has an inbuilt video port that simplifies in-chassis panel configuration and makes monitoring and managing your system's essential information simple. The BIOS on the motherboard has a straightforward user interface with a Quick Access option, making it simple to change and optimize your system settings. Enjoy ultra-fast storage capabilities with 5 M.2 slots, including one PCIe 5.0 x 4 slot for use with the newest high-speed storage devices. The VRM Thermal Armor Advanced and M.2 Thermal Guard XL features to ensure efficient cooling for your components, maintaining consistent performance even during demanding tasks. With 5GbE LAN and Wi-Fi 7 support, along with an ultra-high gain antenna, you can expect fast and reliable network connectivity for gaming and other online activities. This motherboard has HDMI, DP IN, and front and rear USB-C ports with data transfer speeds of up to 20Gb/s, allowing you to connect all of your devices and peripherals. The motherboard has ALC1220 audio and audiophile-grade capacitors to provide immersive gaming and entertainment experiences.

Specifications

Chipset: Intel Z790 Express Chipset
RAM type: Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor: ATX Form Factor; 30.5cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4 x DIMM sockets
Highlights — Model: Z790 AORUS PRO X
Graphics — Graphics: Integrated Graphics Processor-Intel HD Graphics support:; - 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz; * Support for drawing tablets and 20V@3A of power delivery.; * Support for DisplayPort 1.2 version and HDR.; ; - 1 x USB Type-C port, supporting USB 2.0 and DisplayPort video outputs and a maximum resolution of 1920x1080@30 Hz; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Expansion Slots — PCI: CPU:; - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); * The PCIEX16 slot shares bandwidth with the M2C_CPU connectors.; ; The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.; * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; ; Chipset:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1); - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Show all 28 specifications

Highlights — Features: Intel Wi-Fi 7 BE200 (For PCB rev. 1.1)
Memory — Maximum Memory: 192 GB (48 GB single DIMM capacity)
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek ALC1220-VB CODEC; High Definition Audio; 2/4/5.1/7.1-channel
Connector & Ports — Audio: 2 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-Flash; Support for Q-Flash Plus; Support for Smart Backup
Highlights — Supported RAM: 4 x DDR5 DIMMs, up to 8266(O.C)

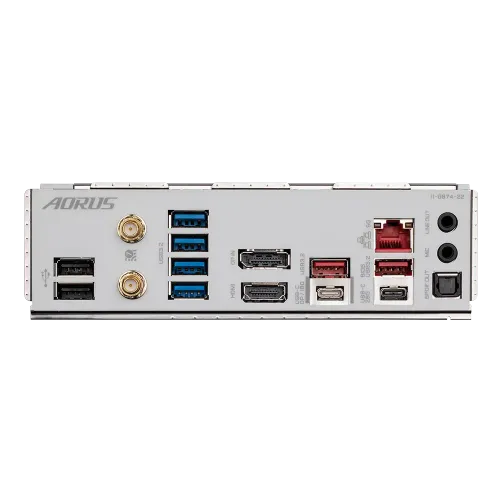

Connector & Ports — USB (s): Chipset:; - 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header); - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support; - 1 x USB Type-C port onboard, with USB 2.0 support; - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel; - 2 x USB 3.2 Gen 1 ports available through the internal USB header; - 2 x USB 2.0/1.1 ports on the back panel; Chipset+USB 3.2 Gen 1 Hub:; - 4 x USB 3.2 Gen 1 ports on the back panel; Chipset+USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports available through the internal USB headers
Highlights — Graphics Output: 1 x DisplayPort, 1 x HDMI port
Connector & Ports — LAN Port (s): Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Basic Information — Supported CPU: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors; L3 cache varies with CPU
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: CPU:; - 1 x M.2 connector (Socket 3, M key, type 25110/2580 PCIe 5.0 x4/x2 SSD support) (M2C_CPU); - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset:; - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB); - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB); - 4 x SATA 6Gb/s connectors;
Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 4 x system fan headers; 2 x system fan/water cooling pump headers; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 5 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C header, with USB 3.2 Gen 2x2 support; 1 x USB Type-C port (DisplayPort), with USB 2.0 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x noise detection header; 2 x Thunderbolt add-in card connectors; 1 x Q-Flash Plus button; 1 x reset button; 1 x reset jumper; 2 x temperature sensor headers; 1 x Clear CMOS jumper
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — Wireless Communication module: Wireless Communication module; Intel Wi-Fi 7 BE200 (For PCB rev. 1.1); - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11be 320MHz wireless standard
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)

Compare with similar products

	This itemGIGABYTE Z790 AORUS PRO X ATX Motherboard	AsusASUS TUF GAMING Z790-BTF WIFI ATX Motherboard	MSIMSI MPG X870E EDGE TI WIFI AM5 ATX Motherboard	GIGABYTEGIGABYTE X870E AORUS PRO DDR5 AM5 ATX Motherboard
Price	৳51,900	৳52,000	৳52,000	৳52,000
Availability	Out of stock	Out of stock	Out of stock	Out of stock
Brand	GIGABYTE	Asus	MSI	GIGABYTE
RAM type	Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules	7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory	Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8400+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 4800+ MT/s	Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme; Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Form factor	ATX Form Factor; 30.5cm x 24.4cm	ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )	ATX; 243.84mmx304.8mm	ATX Form Factor; 30.5cm x 24.4cm
Chipset	Intel Z790 Express Chipset	Intel Z790 Chipset	AMD X870E	AMD X870
M.2 slots	—	4	4	—
