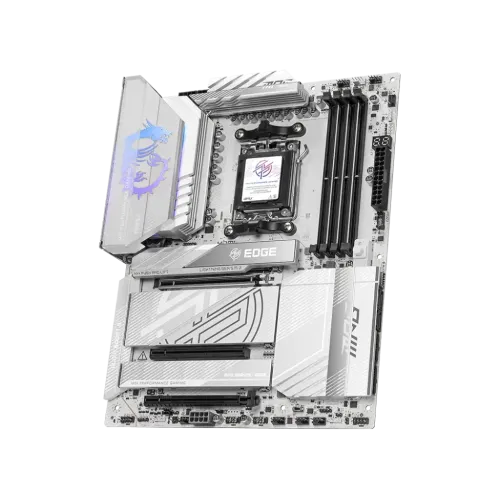

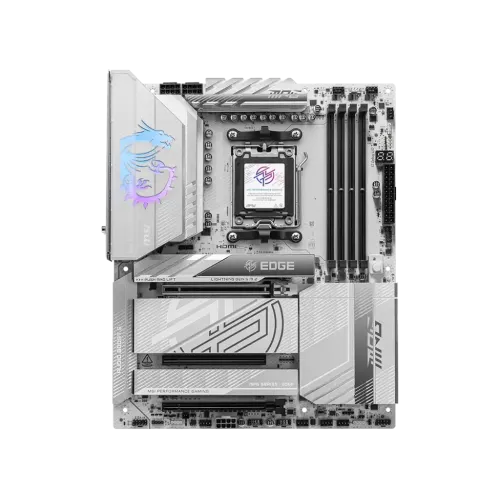

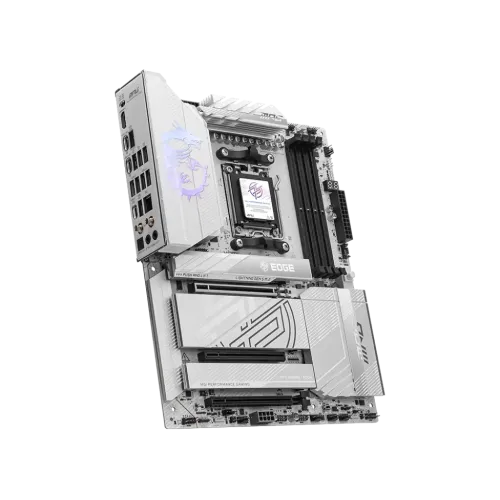

MSI MPG X870E EDGE TI WIFI AM5 ATX Motherboard
Model: MPG X870E EDGE TI WIFIItem #: msi-mpg-x870e-edge-ti-wifi-motherboard
৳52,000
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD X870E Chipset
- 4 M.2 slots
- Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8400+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 4800+ MT/s RAM type
- ATX; 243.84mmx304.8mm Form factor
Overview
The MSI MPG X870E EDGE TI WIFI AM5 ATX Motherboard is a high-performance, future-proof MSI motherboard designed for gamers, creators, and PC enthusiasts. Built on the powerful AMD X870E chipset, it supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors with the AM5 socket, making it an ideal choice for high-end builds. This MSI MPG X870E EDGE TI WIFI Ryzen motherboard features four DDR5 UDIMM slots, supporting up to 256GB of RAM with overclocking speeds reaching DDR5-8400+ MT/s, ensuring blazing-fast performance. The board is equipped with three PCIe x16 slots, with PCI E1 supporting PCIe 5.0 x16, delivering maximum bandwidth for GPUs and expansion cards. Storage is ultra-fast, thanks to four M.2 slots, including two PCIe 5.0 x4 slots, and four SATA 6G ports for additional connectivity. The MSI MPG X870E EDGE TI WIFI AMD motherboard also features cutting-edge onboard graphics, including HDMI 2.1 8K 60Hz and two USB4 Type-C ports 4K 60Hz DisplayPort 1.4 support for high-resolution display options. Superior audio is provided by the Realtek ALC4080 codec, offering 7.1-channel high-resolution sound with S PDIF output for an immersive experience. Network connectivity is top-tier, with Realtek 8126 5G LAN and Wi-Fi 7, delivering multi-gig speeds up to 5.8Gbps, along with Bluetooth 5.4 for seamless wireless connections. The MSI MPG X870E EDGE TI WIFI ATX motherboard ensures high-speed data transfers with USB 40Gbps Type-C, USB 20Gbps Type-C, and multiple USB 10Gbps and 5Gbps ports. Additional features include EZ Debug LEDs, EZ Digi-Debug LED, and extensive RGB connectivity with JARGB V2 and JRGB headers for full customization. Designed in an ATX form factor 243.84mm x 304.8mm, this MSI MPG X870E EDGE TI WIFI motherboard is fully optimized for Windows 11 64-bit. With BIOS Flashback, TPM 2.0 support, and advanced power connectors ATX PWR, CPU PWR, PCIE PWR 8-pin, the MSI MPG X870E EDGE TI WIFI is the ultimate MSI motherboard for high-performance gaming, content creation, and professional workloads.
Specifications
- Chipset
- AMD X870E
- M.2 slots
- 4
- RAM type
- Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8400+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 4800+ MT/s
- Form factor
- ATX; 243.84mmx304.8mm
- Memory — Type
- DDR5
- Memory — Slots
- 4 DIMMs
- Highlights — Model
- MPG X870E EDGE TI WIFI
- Graphics — Graphics
- 1x HDMI; Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz; 2x Type-C DisplayPort; USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz
Show all 27 specificationsShow fewer
- Expansion Slots — PCI
- 3x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); ; PCI_E1 slot; Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors); Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors); Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
- Highlights — Features
- 1x Realtek 5G LAN, Wi-Fi 7, Bluetooth 5.4
- Memory — Maximum Memory
- 256GB
- Connector & Ports — HDMI
- 1x HDMI
- Connector & Ports — RAID
- Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices
- Basic Information — Audio
- Realtek ALC4080 Codec; 7.1-Channel USB High-Performance Audio; Supports up to 32-bit/384 kHz playback on the front panel; Supports S/PDIF output
- Connector & Ports — Audio
- 1x Front Audio (JAUD)
- Others — Special Features
- 4x EZ Debug LED; 1x EZ Digi-Debug LED
- Highlights — Supported RAM
- 4x DDR5, Up to 8400-5600 (OC) MT/s

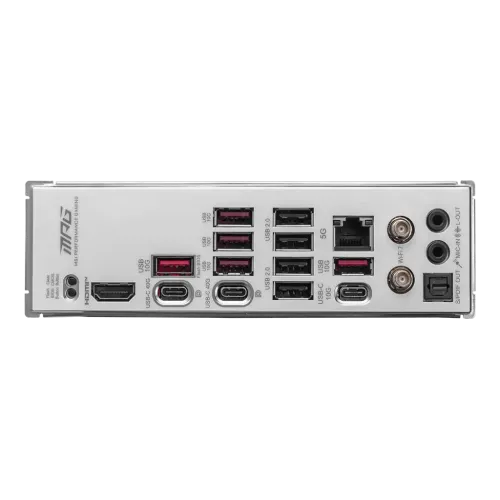

- Connector & Ports — USB (s)
- 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Front); 5x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear); 1x USB 20Gbps Type C (Front); 2x USB 40Gbps Type C (Rear)
- Highlights — Graphics Output
- 1x HDMI, 2x Type-C DisplayPort
- Connector & Ports — LAN Port (s)
- 1x Realtek 8126 5G LAN
- Basic Information — Supported CPU
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5
- Connector & Ports — Display Port (s)
- 2x Type-C DisplayPort
- Connector & Ports — Supported Storage
- 4x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 22110/2280 devices; M.2_2 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices; M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices; 4x SATA 6G; ; M.2_1 slot; Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors); Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors); ; M.2_2 slot; Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors); Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors); ; The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors.
- Connector & Ports — Internal I/O Ports
- 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 6x System Fan; 1x EZ Conn-header (JAF_2); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 20Gbps Type C ports
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — Wireless Communication module
- Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; Supports Bluetooth 5.4, MLO, 4KQAM
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM pin header(Support TPM 2.0)
Compare with similar products
 This itemMSI MPG X870E EDGE TI WIFI AM5 ATX Motherboard |  GIGABYTEGIGABYTE Z790 AORUS PRO X ATX Motherboard |  AsusASUS TUF GAMING Z790-BTF WIFI ATX Motherboard |  GIGABYTEGIGABYTE X870E AORUS PRO DDR5 AM5 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳52,000 | ৳51,900 | ৳52,000 | ৳52,000 |
| Availability | Out of stock | Out of stock | Out of stock | Out of stock |
| Brand | MSI | GIGABYTE | Asus | GIGABYTE |
| M.2 slots | 4 | — | 4 | — |
| RAM type | Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8400+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 4800+ MT/s | Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme; Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| Form factor | ATX; 243.84mmx304.8mm | ATX Form Factor; 30.5cm x 24.4cm | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | ATX Form Factor; 30.5cm x 24.4cm |
| Chipset | AMD X870E | Intel Z790 Express Chipset | Intel Z790 Chipset | AMD X870 |
