ASUS TUF GAMING Z790-PLUS WIFI D4 ATX Motherboard
Model: TUF GAMING Z790-PLUS WIFI D4Item #: asus-tuf-gaming-z790-plus-wifi-d4-motherboard
৳38,600
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel Z790 Chipset
- 5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC); /3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II RAM type
- ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Overview

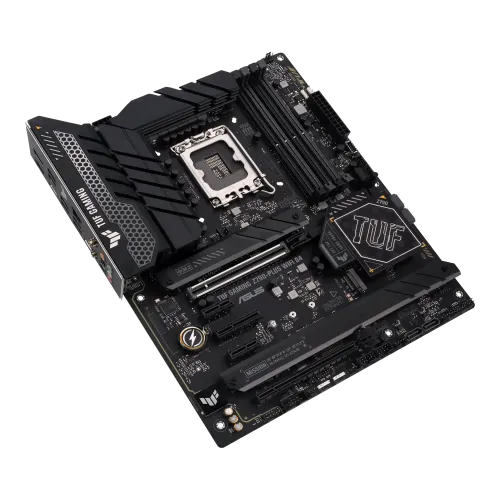

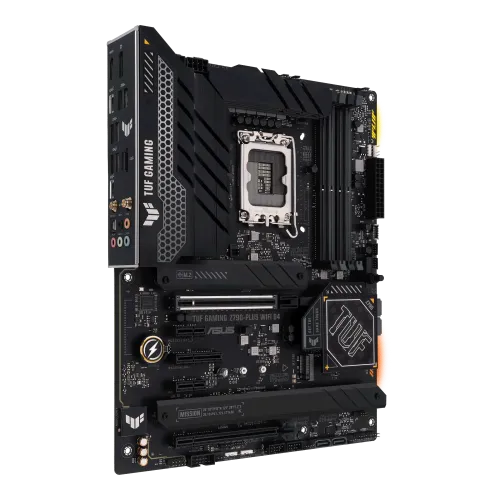

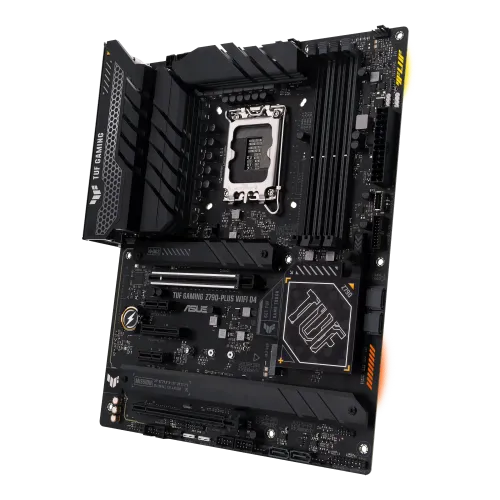

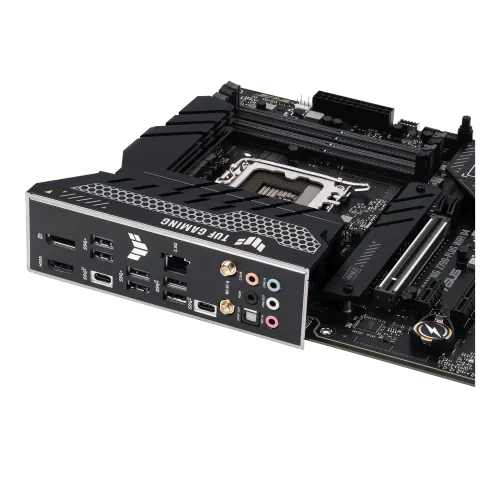

ASUS TUF GAMING Z790-PLUS WIFI D4 Motherboard comes with LGA 1700 socket and Z790 chipset. It supports 14th Gen, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold, and Celeron Processors. The motherboard has 4x DDR4 Dual-Channel RAM slots that allow you to equip up to 128GB of memory for enhanced multitasking capabilities and complex photo and video rendering. ASUS TUF GAMING Z790-PLUS WIFI D4 Motherboard also supports 4 x M.2 slots and 4 x SATA 6Gb/s ports so you can build a large library of storage drives for your games or creative projects. while PCIe 5.0 x16, 4.0 x16, 4.0 x4, and two 3.0 x1 slots accommodate adapter cards. Connect to wired peripherals through two USB-A 3.2 Gen 2 and four 3.2 Gen 1 ports, or two USB-C 3.2 Gen 2x2 and four 3.2 Gen 2 ports. DisplayPort 1.4 or HDMI 2.1 interfaces are used to output video. An RJ45 port enables 2.5 Gigabit Ethernet, and the bundled antenna supports Wi-Fi 6. The rear I/O panel also includes five 1/8" audio jacks and a digital audio S/PDIF output. Fans, Clear CMOS, Thunderbolt 4, RGB lighting, and front-panel USB-C 3.2 Gen 2 and USB-A 3.2 Gen 1 and 2.0 ports are all supported by internal headers. The ASUS TUF GAMING Z-790 PLUS WIFI D4 LGA 1700 ATX Motherboard is 64-bit compatible with Windows 10 and later.
Enhanced Power Solution
The ASUS TUF GAMING Z790-PLUS WIFI D4 delivers consistent power throughout the entire motherboard, preserving electrical volume whether you are performing simple chores or operating at full power during resource-demanding procedures. It is equipped with a 16+1 Phase Power DrMOS, six-layer PCB, ProCool sockets, alloy chokes, and durable capacitors that allow for stable power delivery.
Comprehensive Cooling
The ASUS TUF GAMING Z790-PLUS WIFI D4 motherboard has a large VRM heatsink for capacitors and chokes, as well as integrated M.2 heatsinks and backplates for greater thermal performance and throttling prevention. Fan Xpert 4 software and hybrid fan headers control fans and liquid cooling elements for increased cooling that may be customized.
Connectivity to the Core
Fast internals and accessories can be connected to via PCIe 5.0 and Thunderbolt 4 headers, as well as a front-panel USB-C 3.2 Gen 2x2 port. USB 3.2 Gen 2 doubles the speed of its predecessor, with a maximum throughput of 10 Gb/s when utilized with compatible devices, and is synonymous with USB 3.1 Gen 2.
Aura Sync RGB Effects
This 14th Gen Motherboard offers an edge lighting design, addressable RGB headers, and RGB strip header support to let you set the mood for your favorite games.
Buy ASUS TUF GAMING Z790-PLUS WIFI D4 ATX Motherboard from the best Motherboard Shop in BD
Specifications
- Chipset
- Intel Z790 Chipset
- RAM type
- 5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC); /3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II
- Form factor
- ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Memory — Type
- DDR4
- Memory — Slots
- 4 x DIMM
- Highlights — Model
- TUF GAMING Z790-PLUS WIFI D4
- Graphics — Graphics
- 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4); 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
- Expansion Slots — PCI
- Intel 13th & 12th Gen Processors*; 1 x PCIe 5.0 x16 slot; Intel Z790 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x4 slot; 2 x PCIe 3.0 x1 slots;
Show all 27 specificationsShow fewer
- Highlights — Features
- 4 x M.2 slots, Wi-Fi 6, Bluetooth v5.2
- Memory — Maximum Memory
- 128GB
- Basic Information — BIOS
- 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1 x HDMI
- Connector & Ports — RAID
- Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
- Basic Information — Audio
- Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*; - Impedance sense for front and rear headphone outputs; - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in); - Supports up to 32-Bit/192 kHz playback*"; Audio Features; - Audio Shielding; - Rear optical S/PDIF out port; - Premium audio capacitors; - Dedicated audio PCB layers; - Audio Cover;
- Connector & Ports — Audio
- 5 x Audio jacks
- Others — Bundled Software
- ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert 4 (with AI Cooling II); - Two-Way AI Noise Cancelation; - Power Saving; AI Suite 3; - TurboV EVO; - DIGI+ VRM; - PC Cleaner; TUF GAMING CPU-Z; DTS Audio Processing; MyAsus; Norton 360 for Gamers; WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
- Others — Special Features
- ASUS TUF PROTECTION; - DIGI+ VRM (- Digital power design with DrMOS); - ESD Guards; - TUF LANGuard; - Overvoltage Protection; - Safeslot; - Stainless-Steel Back I/O; ASUS Q-Design; - M.2 Q-Latch; - PCIe Slot Q-Release; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - CPU Socket lever protector; - ProCool; - Pre-mounted I/O shield; - SafeDIMM; AURA Sync; - Aura RGB header; - Addressable Gen 2 headers
- Highlights — Supported RAM
- 4 x DIMM, Max. 128GB, DDR4
- Connector & Ports — USB (s)
- Rear USB (Total 8 ports); 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C); 4 x USB 3.2 Gen 1 ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 3.2 Gen 2 connector (supports USB Type-C); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Highlights — Graphics Output
- 1 x DisplayPort, 1 x HDMI
- Connector & Ports — LAN Port (s)
- 1 x Intel 2.5Gb Ethernet; TUF LANGuard
- Basic Information — Supported CPU
- Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Connector & Ports — Display Port (s)
- 1 x DisplayPort
- Connector & Ports — Supported Storage
- Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110; - Intel 13th & 12th Gen processors support PCIe 4.0 x4 mode; Intel Z790 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes); 4 x SATA 6Gb/s ports
- Connector & Ports — Internal I/O Ports
- Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; Storage related; 4 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 2 connector (supports USB Type-C); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt (USB4) header
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — Wireless Communication module
- Wi-Fi 6; 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax); Supports 2.4/5GHz frequency band; Bluetooth v5.2
Compare with similar products
 This itemASUS TUF GAMING Z790-PLUS WIFI D4 ATX Motherboard |  GIGABYTEGIGABYTE X870M AORUS ELITE WIFI7 DDR5 AM5 mATX Motherboard |  MSIMSI MAG Z790 TOMAHAWK WIFI DDR4 ATX Motherboard |  AsusAsus TUF GAMING B850-PLUS WIFI ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳38,600 | ৳38,500 | ৳38,500 | ৳38,500 |
| Availability | Out of stock | In stock | Out of stock | Out of stock |
| Brand | Asus | GIGABYTE | MSI | Asus |
| RAM type | 5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC); /3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.; 4 x DDR5 DIMM sockets ; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules; ; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | 4x DDR4, Maximum Memory Capacity 128GB; Max. overclocking frequency:; 1DPC 1R Max speed up to 5333+ MHz; 1DPC 2R Max speed up to 4800+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile | max. 256GB, DDR5; Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP) |
| Form factor | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | Micro ATX Form Factor; 24.4cm x 24.4cm | ATX Form Factor; 243.84mmx304.8mm | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Chipset | Intel Z790 Chipset | AMD X870 | Intel Z690 Chipset | AMD B850 |
| M.2 slots | — | — | 4 | 3 |
