ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard

Name: ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard
Brand: Asus
Price: 39500 BDT
Availability: OutOfStock

Model: Z790-AYW WIFI W IIItem #: asus-z790-ayw-wifi-w-ii-motherboard

৳39,500

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel Z790 Chipset
3 M.2 slots
8000+ OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory; Dual channel memory architecture; Supports Intel Extreme Memory Profile (XMP) memory module; OptiMem II RAM type
ATX Form Factor; 12 inch x 9.6 inch (30.5 cm x 24.4 cm)

Overview

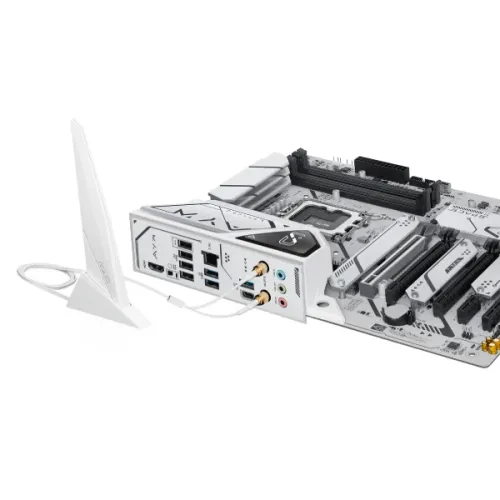

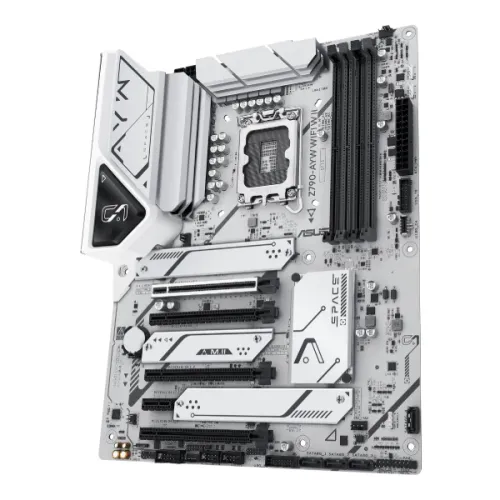

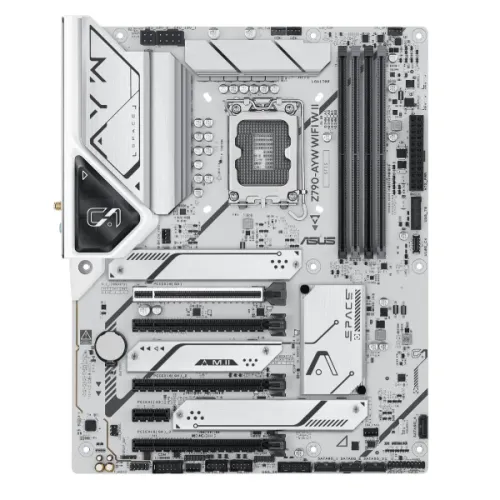

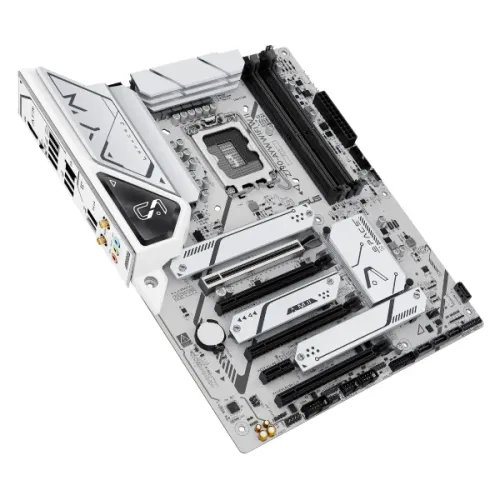

The ASUS Z790-AYW WIFI W II LGA1700 ATX motherboard is a high-performance platform that supports Intel's newest 14th, 13th, and 12th Generation Core, Pentium Gold, and Celeron CPUs. The ASUS motherboard employs the powerful Intel Z790 chipset. It supports Intel Turbo Boost Technology 2.0 and 3.0, allowing for more powerful and efficient computing. It has four DDR5 DIMM slots and can support up to 192GB of high-speed memory at rates of up to 8000MHz (OC). Intel XMP and OptiMem II technology are also included for improved memory reliability and performance. The ASUS Z790-AYW WIFI W II motherboard has numerous expansion slots, including a PCIe 5.0 x16 slot and several PCIe 4.0 and 3.0 slots for sophisticated graphics and peripherals. Storage options are extensive, with three M.2 slots and four SATA 6Gb/s connectors that allow PCIe and SATA RAID setups. With Realtek 2.5Gb Ethernet and ASUS LANGuard protection, networking is quick and dependable. The ASUS Z790-AYW WIFI W II LGA1700 ATX motherboard's integrated Wi-Fi 6 and Bluetooth 5.3 provide high-speed wireless communication over dual 2.4/5GHz bands. The rear I/O panel has eight USB ports, including USB 10Gbps Type-A and Type-C, HDMI, audio jacks, and a BIOS FlashBack button for simple firmware changes. The ASUS Z790-AYW WIFI W II ATX motherboard's front panel features nine more USB ports, including a USB 10Gbps Type-C header. The audio is powered by a Realtek 7.1 surround sound codec with superior capacitors and shielding for immersive sound. The ASUS WIFI motherboard offers complete RGB customization via Aura Sync and has numerous Gen 2 addressable RGB connectors. Cooling is improved with multiple fan headers, AIO pump support, and dedicated VRM and M.2 heatsinks. The ASUS Z790-AYW WIFI W II LGA1700 ATX motherboard also includes ASUS-exclusive innovations like Q-Latch, Q-DIMM, Q-LED, and a pre-installed I/O shield for easy installation. It is designed in the ATX form factor and runs Windows 10 and 11, offering it a future-proof base for any performance-driven PC build.

Specifications

Chipset: Intel Z790 Chipset
M.2 slots: 3
RAM type: 8000+ OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory; Dual channel memory architecture; Supports Intel Extreme Memory Profile (XMP) memory module; OptiMem II
Form factor: ATX Form Factor; 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
Memory — Type: DDR5
Memory — Slots: 4 x DIMM slots
Highlights — Model: Z790-AYW WIFI W II
Graphics — Graphics: 1 x HDMI port; Supports 4K@60Hz as specified in HDMI 2.1

Show all 28 specifications

Expansion Slots — PCI: Intel Core Processors (14th & 13th & 12th Gen); 1 x PCIe 5.0 x16 slot; Intel Z790 Chipset; 3 x PCIe 4.0 x16 slots (support x4 mode); 1 x PCIe 3.0 x1 slot
Highlights — Features: Realtek 2.5Gb Ethernet and Wi-Fi 6
Memory — Maximum Memory: 192GB
Basic Information — BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Connector & Ports — HDMI: 1 x HDMI
Connector & Ports — RAID: Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Basic Information — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: ASUS Exclusive Software; Armoury Crate; - Aura Sync; - Fan Xpert 4 (with AI Cooling II); - Power Saving; - Two-Way AI Noise Cancelation; ASUS DriverHub; AI Suite 3; -TurboV EVO; -PC Cleaner; -DIGI+ VRM; ASUS CPU-Z; Norton 360 Deluxe (60 Days Free Trial); WinRAR (40 Days Free Trial); UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
Others — Special Features: ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design with DrMOS); - LANGuard; - Overvoltage Protection; - SafeSlot; - Stainless-Steel Back I/O; ASUS Q-Design; - M.2 Q-Latch; - Q-DIMM; - Q-Slot; - Q-LED Core; ASUS Thermal Solution; - M.2 heatsinks; - VRM heatsinks design; ASUS EZ DIY; - BIOS FlashBack button; - ProCool; - Pre-mounted I/O shield; Aura Sync; - Addressable RGB Gen 2 headers
Highlights — Supported RAM: 4 x DIMM, Max. 192GB, DDR5 8000+(OC)
Connector & Ports — USB (s): Rear USB (Total 8 ports); 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C); 2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 9 ports); 1 x USB 10Gbps connector (supports USB Type-C); 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; USB_E1 port, USB_E2 port and USB_E6 port share the bandwidth.; USB_E3 port, USB_E4 port, USB_E7 port and USB_E8 port share the bandwidth
Highlights — Graphics Output: 1 x HDMI
Connector & Ports — LAN Port (s): 1 x Realtek 2.5Gb Ethernet; ASUS LANGuard
Basic Information — Supported CPU: Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Connector & Ports — Supported Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; Intel Core Processors (14th & 13th & 12th Gen); M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode); Intel Z790 Chipset; M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes); 4 x SATA 6Gb/s ports

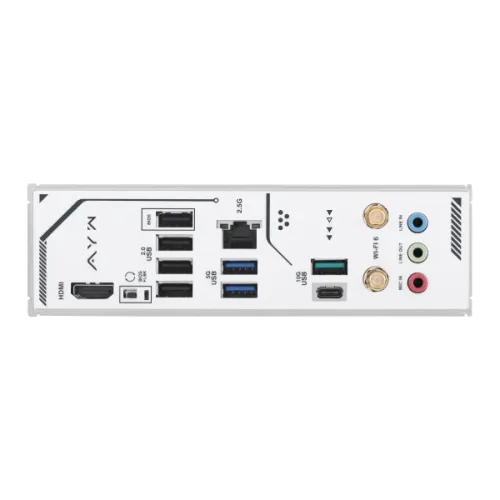

Connector & Ports — Internal I/O Ports: Back Panel I/O Ports; 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C); 2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x HDMITM port; 1 x Wi-Fi Module; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1 x BIOS FlashBack button; Internal I/O Connectors; Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; Storage Related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 10Gbps connector (supports USB Type-C); 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable RGB Gen 2 headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1pin); 1 x 20-5 pin Front Panel System header; 1 x Thunderbolt (USB4) Header
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — Wireless Communication module: Wi-Fi 6 (802.11 ax); Supports 2.4/5GHz frequency band; Bluetooth v5.3
Connector & Ports — TPM (Trusted Platform Module ): 1 x SPI TPM header (14-1pin)

Compare with similar products

	This itemASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard	AsusASUS Z790-AYW OC WIFI LGA1700 ATX Motherboard	AsusAsus ROG STRIX B850-G GAMING WIFI mATX Motherboard	MSIMSI X870 GAMING PLUS WIFI AM5 Motherboard
Price	৳39,500	৳39,500	৳39,500	৳39,500
Availability	Out of stock	In stock	In stock	Out of stock
Brand	Asus	Asus	Asus	MSI
M.2 slots	3	3	4	3
RAM type	8000+ OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory; Dual channel memory architecture; Supports Intel Extreme Memory Profile (XMP) memory module; OptiMem II	DDR5 8200+(OC) 8000(OC) /7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800; Non-ECC, Un-buffered Memory; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module; OptiMem II; Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration	Supports up to 8000+MT/s (OC) with Ryzen™ Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors; ECC and Non-ECC Un-buffered DIMM; Dual channel memory architecture ; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP)	Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 4800+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*
Form factor	ATX Form Factor; 12 inch x 9.6 inch (30.5 cm x 24.4 cm)	ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )	micro-ATX Form Factor ; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)	ATX; 243.84mmx304.8mm
Chipset	Intel Z790 Chipset	Intel Z790 Chipset	AMD B850	AMD X870
