MSI X870 GAMING PLUS WIFI AM5 Motherboard

Name: MSI X870 GAMING PLUS WIFI AM5 Motherboard
Brand: MSI
Price: 39500 BDT
Availability: OutOfStock

Model: X870 GAMING PLUS WIFIItem #: msi-x870-gaming-plus-wifi-motherboard

৳39,500

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD X870 Chipset
3 M.2 slots
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 4800+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only* RAM type
ATX; 243.84mmx304.8mm Form factor

Overview

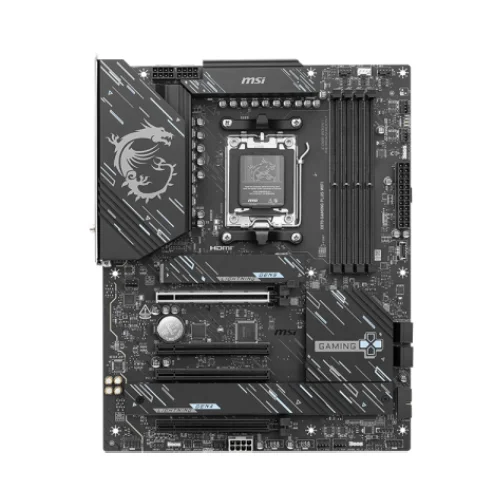

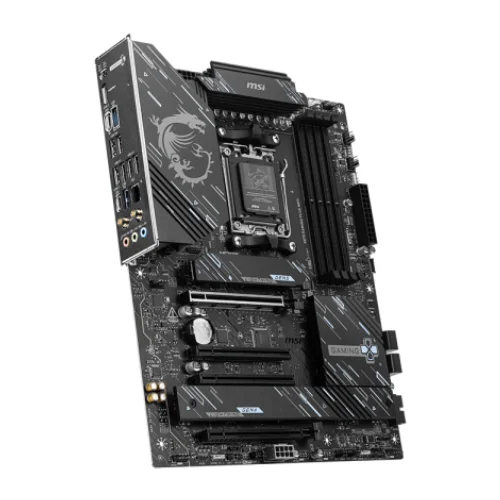

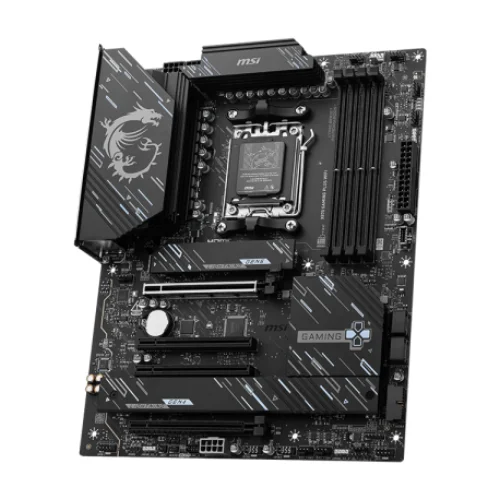

Introducing the MSI X870 GAMING PLUS WIFI AM5 Motherboard, a next-generation MSI motherboard designed for dedicated gamers and professionals seeking a perfect balance of unrivaled performance, reliable connection, and easy customization choices. This advanced MSI AM5 motherboard is optimized for AMD Ryzen 9000/8000/7000 Series Processors. It utilizes the new AM5 socket and supports high-speed DDR5 memory in dual-channel configurations, with rates exceeding 8200+ MT/s. The board has a strong 14+2+1 Duet Rail Power System, which includes two 8-pin CPU power connectors, MSI's patented Core Boost and Memory Boost technologies, and an 8-layer PCB made of 2oz thicker copper for ultra-stable power supply even during intense, long sessions. This premium MSI WiFi motherboard features cutting-edge Wi-Fi 7, 5G LAN compatibility, and superior USB4 connectivity for rapid network performance. This MSI motherboard also offers numerous storage options and extensible PCIe configurations, including a PCIe 5.0 x16 slot and lightning Gen5 x4 M.Two slots are equipped with the revolutionary EZ M.2 Shield Frozr II, which meets all modern data and graphics needs. The MSI X870 GAMING PLUS WIFI AM5 Motherboard, enhanced by MSI's signature EZ DIY features for simplified installation and refined audio enhancements delivering studio-grade sound via Audio Boost technology, redefines modern computing by providing a durable, high-performance platform that caters to both immersive gaming experiences and demanding professional workloads all wrapped in a sleek, elegant design that stands as a true testament to MSI's engineering excellence.

Specifications

Chipset: AMD X870
M.2 slots: 3
RAM type: Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 4800+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*
Form factor: ATX; 243.84mmx304.8mm
Memory — Type: DDR5
Memory — Slots: 4x UDIMM
Highlights — Model: X870 GAMING PLUS WIFI
Graphics — Graphics: 1x HDMI; Support HDMITM 2.1, maximum resolution of 4K 60Hz*; 1x Type-C DisplayPort; USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Show all 26 specifications

Expansion Slots — PCI: 4x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset); ; PCI_E1 slot; • Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors); • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors); • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
Highlights — Features: Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
Memory — Maximum Memory: 256GB
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Basic Information — Audio: Realtek ALC897; 7.1-Channel High Definition Audio
Others — Special Features: 4x EZ Debug LED; 1x EZ Digit Debug LED
Highlights — Supported RAM: 4x DDR5 8200 (OC) MT/s

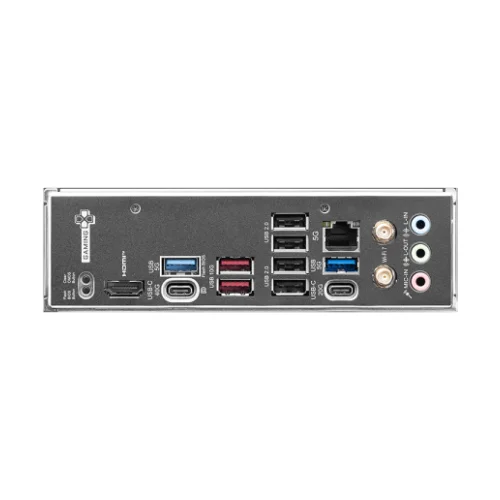

Connector & Ports — USB (s): 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 2x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear); 1x USB 40Gbps Type C (Rear)
Highlights — Graphics Output: 1x HDMI, 1x Type-C Display Port
Connector & Ports — LAN Port (s): Realtek 8126VB 5G LAN
Basic Information — Supported CPU: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5
Connector & Ports — Display Port (s): 1x Type-C DisplayPort 1.4
Connector & Ports — Supported Storage: 4x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices; M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices; M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; * The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.; ** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports
Connector & Ports — Internal I/O Ports: 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 6x System Fan; 1x EZ Conn-header (JAF_2); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 20Gbps Type C ports
Warranty Information — Manufacturing Warranty: 3 Years Warranty
Connector & Ports — Wireless Communication module: Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; Supports Bluetooth 5.4, MLO, 4KQAM
Connector & Ports — TPM (Trusted Platform Module ): 1x TPM pin header(Support TPM 2.0)

Compare with similar products

	This itemMSI X870 GAMING PLUS WIFI AM5 Motherboard	AsusASUS Z790-AYW OC WIFI LGA1700 ATX Motherboard	AsusAsus ROG STRIX B850-G GAMING WIFI mATX Motherboard	AsusASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard
Price	৳39,500	৳39,500	৳39,500	৳39,500
Availability	Out of stock	In stock	In stock	Out of stock
Brand	MSI	Asus	Asus	Asus
M.2 slots	3	3	4	3
RAM type	Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 4800+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*	DDR5 8200+(OC) 8000(OC) /7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800; Non-ECC, Un-buffered Memory; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module; OptiMem II; Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration	Supports up to 8000+MT/s (OC) with Ryzen™ Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors; ECC and Non-ECC Un-buffered DIMM; Dual channel memory architecture ; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP)	8000+ OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory; Dual channel memory architecture; Supports Intel Extreme Memory Profile (XMP) memory module; OptiMem II
Form factor	ATX; 243.84mmx304.8mm	ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )	micro-ATX Form Factor ; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)	ATX Form Factor; 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
Chipset	AMD X870	Intel Z790 Chipset	AMD B850	Intel Z790 Chipset
