Colorful BATTLE-AX B450M-K M.2 V14 AM4 mATX Motherboard
Model: BATTLE-AX B450M-K M.2 V14Item #: colorful-battle-ax-b450m-k-m-2-v14-motherboard
৳7,700
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B450 Chipset
- 1 M.2 slots
- Support DDR4-4000(OC)/3733(OC)/3600(OC)/3466(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2666/2400/2133MHz memory; Support Extreme Memory Profile (XMP) memory technology; Supports dual channel memory technology RAM type
- M-ATX; 230mm x 197mm Form factor
Overview

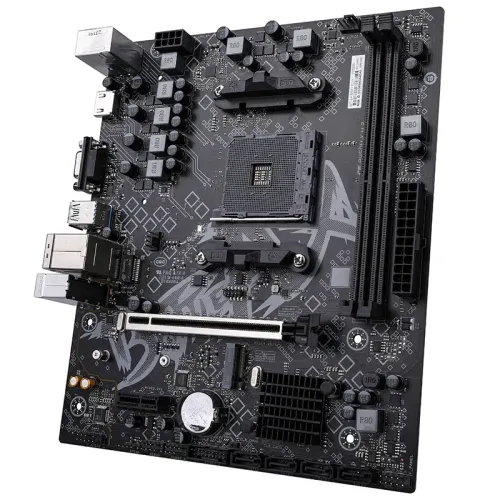

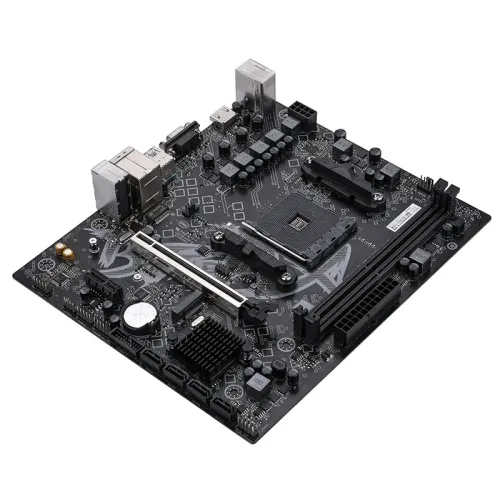

The Colorful BATTLE-AX B450M-K M.2 V14 AM4 mATX motherboard is designed for consumers who desire reliable features, broad compatibility, and strong performance in a small micro-ATX package. Supporting AMD Ryzen series processors via the AM4 socket, it provides a solid basis for gaming rigs, productivity settings, and daily computers. Memory performance is impressive, with two DDR4 sockets enabling up to 64GB total capacity, or 32GB each slot, and speeds up to DDR4-4000 (OC). The Colorful BATTLE-AX B450M-K M.2 V14 Motherboard optimizes memory settings for steady, high-performance operation thanks to its dual-channel architecture and support for Extreme Memory Profile (XMP). Storage options are equally diverse, with one M.2 slot supporting 2242/2280 SSDs via PCIe 3.0 x4 or SATA and four SATA 6Gb/s connectors for extra drives. The board's back I/O contains two USB 2.0 ports, four USB 3.2 Gen 1 Type-A connectors, HDMI 2.0 support for 4K @ 60Hz, VGA, PS/2, Gigabit LAN, and three audio jacks. The colorful BATTLE-AX B450M-K M.2 V14 Motherboard includes internal headers for expansion of more USB ports, audio, fans, and front panel connectors, as well as debug and jumper pins for expert users. Expansion slots include one PCIe 3.0 x16 slot for graphics cards and one PCIe 2.0 x1 slot for add-on cards. The motherboard includes a 128M UEFI BIOS that supports several languages, as well as advanced power management features such as S3/S4 wake-up, network S5 wake-up, USB wake-up, and scheduled boot choices. The colorful BATTLE-AX B450M-K M.2 V14 Motherboard includes monitoring tools that let you to regulate CPU and system fan speeds, as well as track CPU, system, and voltage temperatures in real time. The dependable RTL8111H Gigabit Ethernet controller handles networking, while the Realtek ALC897 codec provides high-fidelity audio up to 5.1 channels. This colorful BATTLE-AX B450M-K M.2 V14 mATX Motherboard is 230mm x 197mm and fits comfortably into tiny enclosures without sacrificing connectivity or performance.
Specifications
- Chipset
- AMD B450
- M.2 slots
- 1
- RAM type
- Support DDR4-4000(OC)/3733(OC)/3600(OC)/3466(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2666/2400/2133MHz memory; Support Extreme Memory Profile (XMP) memory technology; Supports dual channel memory technology
- Form factor
- M-ATX; 230mm x 197mm
- Memory — Type
- DDR4
- Memory — Slots
- 2 x DIMM;
- Highlights — Model
- BATTLE-AX B450M-K M.2 V14
- Expansion Slots — PCI
- 1×PCIe 3.0 x16 slot; 1×PCIe 2.0 x1 slot
Show all 23 specificationsShow fewer
- Highlights — Features
- 1x M.2 slot, 1x RTL8111H Gigabit RJ45 LAN
- Memory — Maximum Memory
- up to 64GB of memory (a single socket can support up to 32 GB of memory)
- Basic Information — BIOS
- 128M UEFI, support multiple languages
- Connector & Ports — HDMI
- 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution
- Basic Information — Audio
- Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels
- Connector & Ports — Audio
- Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels
- Others — Special Features
- Power Management: Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot; Hardware Monitor: CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
- Highlights — Supported RAM
- 2x DDR4 Up to 4000(OC) Max. 64GB
- Connector & Ports — VGA (s)
- 1×VGA interface
- Highlights — Graphics Output
- 1x HDMI 2.0, 1x VGA
- Connector & Ports — LAN Port (s)
- 1×Gigabit network interface; RTL8111H Gigabit Network Card
- Basic Information — Supported CPU
- Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard
- Connector & Ports — Supported Storage
- 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces; M.2_1 slot: supports 2242/2280 M.2 SSD (PCIe 3.0 x4/SATA, CPU channel)
- Connector & Ports — Internal I/O Ports

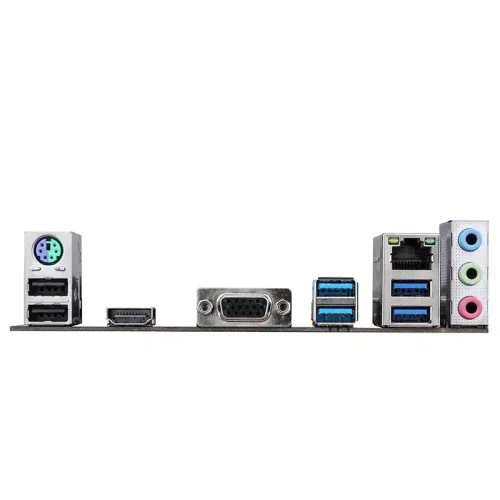

- Rear I/O :; -2×USB 2.0 interfaces; -4×USB 3.2 Gen 1 Type-A interfaces; -1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution; -1×VGA interface; -1×PS/2 interface; -1×Gigabit network interface; -3×Audio interfaces (audio input/audio output/microphone); On board:; -1×CPU fan pin; -1×System fan pin; -1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces; -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces; -1×Front audio pin; -1×Front panel pin; -1×Speaker pin; -1×Digital audio pin; -1×Clear CMOS jumper; -1×BIOS burner pin; -1×Debug light pin; -1×USB live control jumper
- Warranty Information — Manufacturing Warranty
- 03 years
Compare with similar products
 This itemColorful BATTLE-AX B450M-K M.2 V14 AM4 mATX Motherboard |  MSIMSI B450M-A PRO MAX II AMD AM4 Motherboard |  MSIMSI A520M-A Pro AM4 AMD Micro-ATX Motherboard |  AsusAsus Prime A520M-A Micro ATX AM4 Motherboard | |
|---|---|---|---|---|
| Price | ৳7,700 | ৳7,700 | ৳7,800 | ৳8,000 |
| Availability | Out of stock | Out of stock | In stock | Out of stock |
| Brand | Colorful | MSI | MSI | Asus |
| M.2 slots | 1 | — | 1 | 1 |
| RAM type | Support DDR4-4000(OC)/3733(OC)/3600(OC)/3466(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2666/2400/2133MHz memory; Support Extreme Memory Profile (XMP) memory technology; Supports dual channel memory technology | Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE); Supports Dual-Channel mode; Supports non-ECC, UDIMM memory; Supports ECC UDIMM memory (non-ECC mode); Supports un-buffered memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4600 MHz; 1DPC 2R max speed 3866 MHz; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory (non-ECC mode); Supports un-buffered memory | 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/3000/ 2800/2666/ 2400/ 2133 MHz Un-buffered Memory; ECC Memory (ECC mode) support varies by CPU |
| Form factor | M-ATX; 230mm x 197mm | mATX; 200mmx236mm | Micro-ATX Form Factor; 9.3 in. x 7.9 in. (23.6 cm x 20 cm) | mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Chipset | AMD B450 | AMD B450 | AMD B520 | AMD A520 |
