Colorful BATTLE-AX H610M-E WIFI V20 mATX Motherboard
Model: BATTLE-AX H610M-E WIFI V20Item #: colorful-battle-ax-h610m-e-wifi-v20-motherboard
৳10,200৳11,550Save 12%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel H610 Chipset
- - DDR4-3200/2933/2666/2400MHz memory; - support dual-channel memory technology RAM type
- M-ATX; 245mm x 245mm Form factor
Overview
Colorful BATTLE-AX H610M-E WIFI V20 Motherboard
The colorful BATTLE-AX H610M-E WIFI V20 Motherboard is a high-performance motherboard built to satisfy current computing demands, with a bright and dynamic design and innovative functions. This motherboard is designed for 14th/13th/12th generation Intel CPUs and has an LGA 1700 slot for compatibility with CoreTM, Pentium, and Cylon processors. The motherboard, which is powered by the Intel H610 chipset, enables dual-channel DDR4-3200MHz memory, guaranteeing seamless multitasking and efficient data processing. A PCIe 3.0 x4 M.2 SSD slot expands storage possibilities by enabling rapid data transfer speeds for a responsive computing experience. The colorful BATTLE-AX H610M-E WIFI V20 has an HDMI+VGA display interface, allowing it to connect to a wide range of monitors and screens. With its Realtek 8111H Gigabit wired network card, RTL8821CE/AC3165 WiFi 5 Wireless network, and Bluetooth 4.2 compatibility, the motherboard prioritizes communication, offering customers with dependable and diverse networking choices. The motherboard has a Realtek ALC897 sound card chip with up to 5.1 channel capability, delivering a high-quality audio experience for gaming, entertainment, and content production. The motherboard has USB interface possibilities on both the rear and front panels. The back panel has two USB 3.2 Gen 1 Type-A ports and two USB 2.0 interfaces, while the front panel has two USB 3.2 Gen 1 Type-A connections and two USB 2.0 interfaces for convenience. This extensive USB setup enables users to easily connect a wide range of peripherals and devices. The colorful BATTLE-AX H610M-E WIFI V20 Motherboard is a feature-rich solution that combines powerful performance, sophisticated networking choices, and a visually appealing appearance, making it an excellent choice for gaming, content production, and general computing.
Buy Colorful BATTLE-AX H610M-E WIFI V20 mATX Motherboard from the best Motherboard Shop in BD
Specifications
- Chipset
- Intel H610
- RAM type
- - DDR4-3200/2933/2666/2400MHz memory; - support dual-channel memory technology
- Form factor
- M-ATX; 245mm x 245mm
- Memory — Type
- DDR4
- Memory — Slots
- 2
- Highlights — Model
- BATTLE-AX H610M-E WIFI V20
- Graphics — Graphics
- Integrated Graphics Processor-Intel HD Graphics support:; 1 x HDMI 2.0 interface, Up to 4K 60Hz resolution; - 1×VGA interface
- Expansion Slots — PCI
- 1xPCIe 4.0 x16 slot; 1xPCIe 3.0 x1 slot
Show all 22 specificationsShow fewer
- Highlights — Features
- RTL8111H Gbit network card, WiFi 5
- Memory — Maximum Memory
- support up to 64 GB of memory (a single slot can support up to 32 GB of memory)
- Basic Information — BIOS
- 128M UEFI, supporting multiple languages
- Connector & Ports — HDMI
- 1x HDMI
- Basic Information — Audio
- 5.1 sound card
- Highlights — Supported RAM
- 2x DDR4, Max 64GB 3200(OC)
- Connector & Ports — VGA (s)
- - 1×VGA interface
- Highlights — Graphics Output
- 1×VGA, 1x HDMI
- Connector & Ports — LAN Port (s)
- RTL8111H Gigabit network card
- Basic Information — Supported CPU
- Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor
- Connector & Ports — Supported Storage
- A total of 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces are supported; - M2_ 1 slot: supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel)
- Connector & Ports — Internal I/O Ports

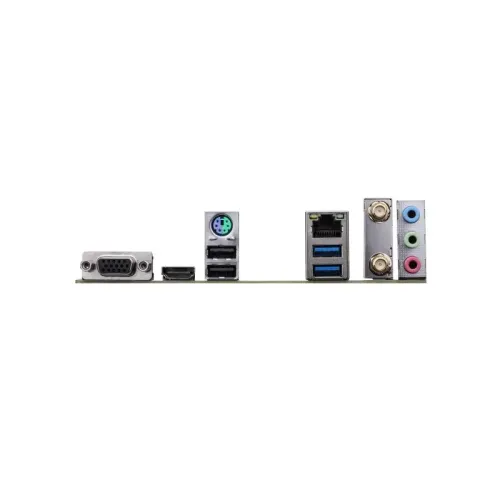

- Rear I/O:; - 1×PS/2 interface; - 4×USB 2.0 interfaces; - 2×USB 3.2 Gen 1 Type-A interfaces; - 1×HDMI 2.0 interface, Up to 4K 60Hz resolution; - 1×VGA interface; - 1×Gigabit network interface; - 3×Audio interfaces (audio input/audio output/microphone); On board:; - 1×CPU fan pin; - 2×System fan pins; - 1×water cooling pump pin; - 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces; - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces; - 1×Front audio pin; - 1×Front panel pin; - 1×Speaker pin; - 1×COM port pin; - 1×ME write protection jumper; - 1×Clear CMOS jumper; - 1×BIOS burner pin; - 1×POST Card pin; - 1×Wake-up control jumper
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — Wireless Communication module
- RTL8821CE/AC3165 WiFi 5 Wireless network, Bluetooth 4.2
Compare with similar products

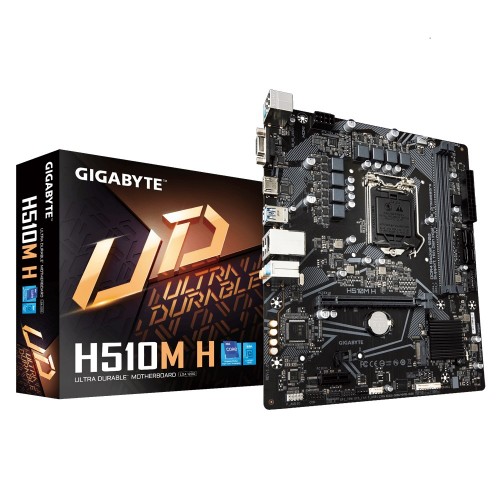

 This itemColorful BATTLE-AX H610M-E WIFI V20 mATX Motherboard |  AsusASUS PRIME H610M-F D4 R2.0 DDR4 LGA1700 mATX Motherboard |  GIGABYTEGIGABYTE H610M H V3 DDR4 Micro ATX Motherboard |  GIGABYTEGIGABYTE H510M H Intel 10th and 11th Gen Micro ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳10,200 | ৳10,200 | ৳10,200 | ৳10,200 |
| Availability | In stock | In stock | In stock | Out of stock |
| Brand | Colorful | Asus | GIGABYTE | GIGABYTE |
| RAM type | - DDR4-3200/2933/2666/2400MHz memory; - support dual-channel memory technology | 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory; Dual channel memory architecture; Supports Intel Extreme Memory Profile (XMP) memory module | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | 11th Generation Intel Core i9/i7/i5 processors:; Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules; 10th Generation Intel Core i9/i7 processors:; Support for DDR4 2933/2666/2400/2133 MHz memory modules; 10th Generation Intel Core i5/i3/Pentium/Celeron processors:; Support for DDR4 2666/2400/2133 MHz memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Form factor | M-ATX; 245mm x 245mm | mATX Form Factor; 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) | Micro ATX Form Factor; 22.3cm x 19.3cm | Micro ATX Form Factor; 24.4cm x 21.0cm; |
| Chipset | Intel H610 | Intel H610 Chipset | Intel H610 Express Chipset | Intel H510 Express Chipset; |
| M.2 slots | — | 1 | — | 1 |
