GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard

Name: GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
Brand: GIGABYTE
Price: 10200 BDT
Availability: InStock

Model: H610M H V3 DDR4Item #: gigabyte-h610m-h-v3-ddr4-motherboard

৳10,200~~৳11,000~~Save 7%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel H610 Express Chipset
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
Micro ATX Form Factor; 22.3cm x 19.3cm

Overview

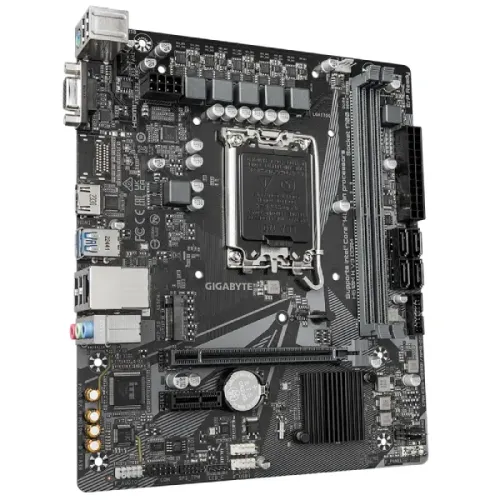

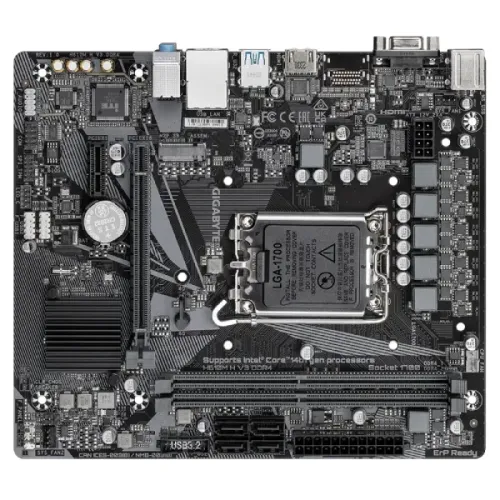

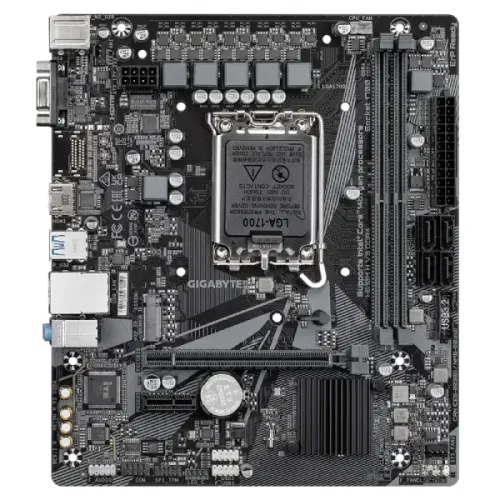

The GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard is designed to deliver exceptional performance and reliability for a wide range of computing needs. It supports 14th, 13th, and 12th generation Intel Core, Pentium Gold, and Celeron processors with its LGA1700 socket, ensuring compatibility with the latest CPUs. The motherboard features a robust 4+1+1 Hybrid Digital VRM design, providing stable power delivery to the CPU. It supports dual-channel non-ECC unbuffered DDR4 memory with two DIMM slots, allowing for up to 64GB of RAM, which is ideal for multitasking and demanding applications. The inclusion of a PCIe 4.0 x16 slot enhances graphics performance, while the PCIe 3.0 x4 M.2 slot supports high-speed NVMe SSDs for faster storage solutions. Connectivity options include Realtek GbE LAN for reliable internet connections and multiple display outputs such as HDMI, DVI-D, and D-Sub ports. The motherboard also boasts high-quality audio capacitors and an audio noise guard for an immersive sound experience. Designed for durability, it incorporates anti-sulfur resistors and solid capacitors to improve longevity and performance. The Smart Fan 6 technology ensures efficient cooling, keeping the system running smoothly under heavy loads. Whether you are building a new PC or upgrading an existing one, the GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard offers a perfect blend of performance, reliability, and advanced features to meet your computing needs.

Specifications

Chipset: Intel H610 Express Chipset
RAM type: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor: Micro ATX Form Factor; 22.3cm x 19.3cm
Memory — Type: DDR4
Memory — Slots: 2 x DDR DIMM sockets
Highlights — Model: H610M H V3 DDR4
Graphics — Graphics: Integrated Graphics Processor-Intel® HD Graphics support:; - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support native HDMI 2.1 TMDS compatible ports.
Expansion Slots — PCI: CPU:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; Chipset:; - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Show all 26 specifications

Highlights — Features: Realtek GbE LAN
Memory — Maximum Memory: Up to 64 GB (32 GB single DIMM capacity) of system memory
Basic Information — BIOS: 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI 2.1 port
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: Norton® Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for APP Center; * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; ; ; - @BIOS; - EasyTune; - Smart Backup; - System Information Viewer; Support for Q-Flash
Highlights — Supported RAM: 2 x DDR4 up to 64 GB 3200MHz
Connector & Ports — USB (s): Chipset:; - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header); - 4 x USB 2.0/1.1 ports on the back panel; Chipset+USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports available through the internal USB headers
Highlights — Graphics Output: 1 x D-Sub, 1 x HDMI
Connector & Ports — D-Sub (s): 1 x D-Sub port
Connector & Ports — LAN Port (s): Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Basic Information — Supported CPU: LGA1700 socket: Support for 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors; L3 cache varies with CPU
Connector & Ports — Supported Storage: Chipset:; - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD; support); - 4 x SATA 6Gb/s connectors

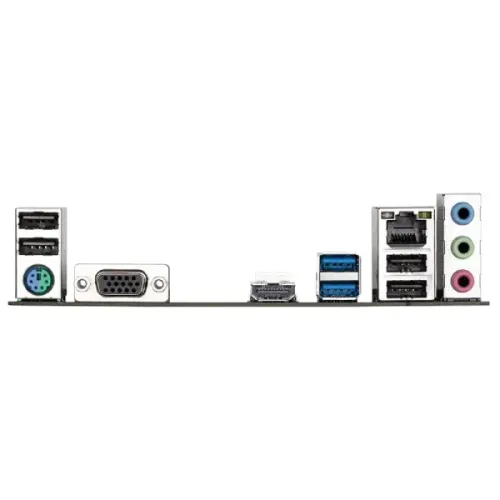

Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x RGB LED strip header; 1 x front panel header; 1 x front panel audio header; 1 x speaker header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x Clear CMOS jumper; 1 x chassis intrusion header; Back Panel Connectors; 1 x PS/2 keyboard/mouse port; 1 x D-Sub port; 1 x HDMI port; 2 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks;
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)

Compare with similar products

	This itemGIGABYTE H610M H V3 DDR4 Micro ATX Motherboard	ColorfulColorful BATTLE-AX H610M-E WIFI V20 mATX Motherboard	AsusASUS PRIME H610M-F D4 R2.0 DDR4 LGA1700 mATX Motherboard	GIGABYTEGIGABYTE H510M H Intel 10th and 11th Gen Micro ATX Motherboard
Price	৳10,200	৳10,200	৳10,200	৳10,200
Availability	In stock	In stock	In stock	Out of stock
Brand	GIGABYTE	Colorful	Asus	GIGABYTE
RAM type	Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules	- DDR4-3200/2933/2666/2400MHz memory; - support dual-channel memory technology	3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory; Dual channel memory architecture; Supports Intel Extreme Memory Profile (XMP) memory module	11th Generation Intel Core i9/i7/i5 processors:; Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules; 10th Generation Intel Core i9/i7 processors:; Support for DDR4 2933/2666/2400/2133 MHz memory modules; 10th Generation Intel Core i5/i3/Pentium/Celeron processors:; Support for DDR4 2666/2400/2133 MHz memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor	Micro ATX Form Factor; 22.3cm x 19.3cm	M-ATX; 245mm x 245mm	mATX Form Factor; 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm )	Micro ATX Form Factor; 24.4cm x 21.0cm;
Chipset	Intel H610 Express Chipset	Intel H610	Intel H610 Chipset	Intel H510 Express Chipset;
M.2 slots	—	—	1	1
