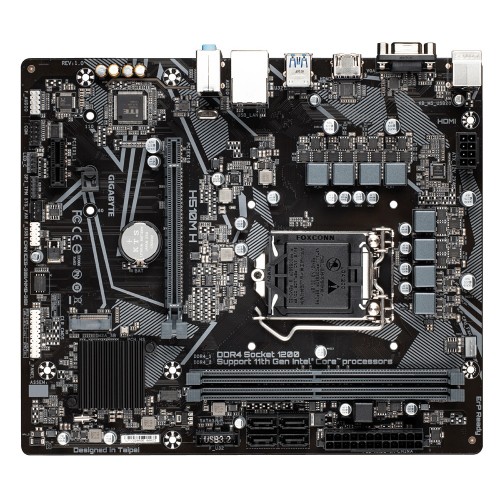

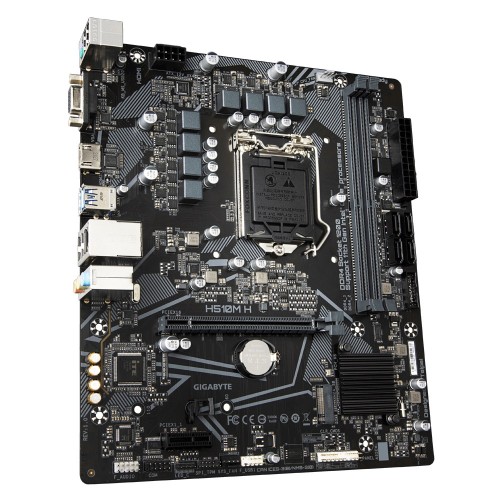

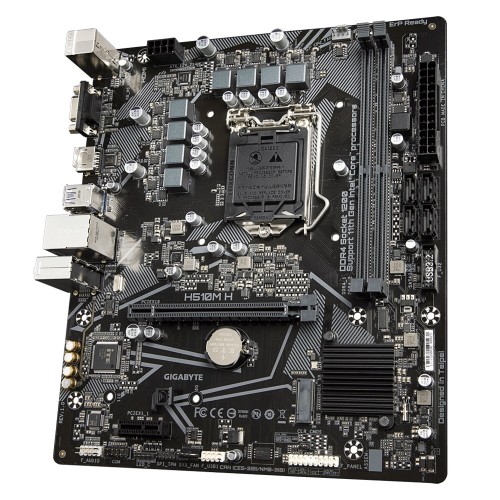

GIGABYTE H510M H Intel 10th and 11th Gen Micro ATX Motherboard
Model: H510M HItem #: gigabyte-h510m-h-motherboard
৳10,200
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel H510 Express Chipset;
- 1 M.2 slots
- 11th Generation Intel Core i9/i7/i5 processors:; Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules; 10th Generation Intel Core i9/i7 processors:; Support for DDR4 2933/2666/2400/2133 MHz memory modules; 10th Generation Intel Core i5/i3/Pentium/Celeron processors:; Support for DDR4 2666/2400/2133 MHz memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
- Micro ATX Form Factor; 24.4cm x 21.0cm;
Overview
GIGABYTE H510M H Motherboard supports 11th and 10th Gen Intel Core Series Processors and comes with Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs. It features Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface. It is powered by GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management. Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users with the most comprehensive features and the fastest and smoothest Internet experience. GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. It features an audio noise guard that essentially separates the board’s sensitive analogue audio components from potential noise pollution at the PCB level. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. The Smart Fan 6 contains several unique cooling features that ensure the gaming PC maintain their performance while staying cool and quiet. Each fan headers support PWM and DC fan and Water cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection. The fan can stop completely below users' specified temperature point. It supports GIGABYTE APP Center and you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version. It is very simple and easy to use. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning. It has 3 years Warranty.
Specifications
- Chipset
- Intel H510 Express Chipset;
- M.2 slots
- 1
- RAM type
- 11th Generation Intel Core i9/i7/i5 processors:; Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules; 10th Generation Intel Core i9/i7 processors:; Support for DDR4 2933/2666/2400/2133 MHz memory modules; 10th Generation Intel Core i5/i3/Pentium/Celeron processors:; Support for DDR4 2666/2400/2133 MHz memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
- Form factor
- Micro ATX Form Factor; 24.4cm x 21.0cm;
- Memory — Type
- Dual channel memory architecture;
- Memory — Slots
- 2 x DDR4 DIMM
- Highlights — Model
- H510M H
- Graphics — Graphics
- Integrated Graphics Processor-Intel HD Graphics support:; 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz; * Support for HDMI 1.4 version and HDCP 2.3.
Show all 24 specificationsShow fewer
- Expansion Slots — PCI
- 1 x PCI Express x16 slot, running at x16 (PCIEX16); * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; (The PCIEX16 slot conforms to PCI Express 4.0 standard.); * Supported by 11th Generation processors only.; 1 x PCI Express x1 slot (PCIEX1_1); (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
- Memory — Maximum Memory
- 64 GB (32 GB single DIMM capacity)
- Basic Information — BIOS
- 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Connector & Ports — HDMI
- 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz;
- Basic Information — Audio
- Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
- Connector & Ports — Audio
- 3 x audio jacks;
- Others — Bundled Software
- Norton Internet Security (OEM version); Realtek 8118 Gaming LAN Bandwidth Control Utility
- Others — Special Features
- Support for APP Center; @BIOS; Ambient LED; EasyTune; Fast Boot; Game Boost; ON/OFF Charge; Smart Backup; System Information Viewer; Support for Q-Flash; Support for Xpress Install
- Connector & Ports — USB (s)
- Chipset:; 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header); 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- Connector & Ports — D-Sub (s)
- 1 x D-Sub port;
- Connector & Ports — LAN Port (s)
- Realtek GbE LAN chip (1 Gbit/100 Mbit);
- Basic Information — Supported CPU
- 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors; 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors; * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
- Connector & Ports — Supported Storage
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support); 4 x SATA 6Gb/s connectors; * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
- Connector & Ports — Internal I/O Ports
- 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x system fan header; 1 x RGB LED strip header; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x serial port header; 1 x Clear CMOS jumper
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only);
Compare with similar products
 This itemGIGABYTE H510M H Intel 10th and 11th Gen Micro ATX Motherboard |  ColorfulColorful BATTLE-AX H610M-E WIFI V20 mATX Motherboard |  AsusASUS PRIME H610M-F D4 R2.0 DDR4 LGA1700 mATX Motherboard |  GIGABYTEGIGABYTE H610M H V3 DDR4 Micro ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳10,200 | ৳10,200 | ৳10,200 | ৳10,200 |
| Availability | Out of stock | In stock | In stock | In stock |
| Brand | GIGABYTE | Colorful | Asus | GIGABYTE |
| M.2 slots | 1 | — | 1 | — |
| RAM type | 11th Generation Intel Core i9/i7/i5 processors:; Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules; 10th Generation Intel Core i9/i7 processors:; Support for DDR4 2933/2666/2400/2133 MHz memory modules; 10th Generation Intel Core i5/i3/Pentium/Celeron processors:; Support for DDR4 2666/2400/2133 MHz memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | - DDR4-3200/2933/2666/2400MHz memory; - support dual-channel memory technology | 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory; Dual channel memory architecture; Supports Intel Extreme Memory Profile (XMP) memory module | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Form factor | Micro ATX Form Factor; 24.4cm x 21.0cm; | M-ATX; 245mm x 245mm | mATX Form Factor; 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) | Micro ATX Form Factor; 22.3cm x 19.3cm |
| Chipset | Intel H510 Express Chipset; | Intel H610 | Intel H610 Chipset | Intel H610 Express Chipset |
