XENTHRA XN-H81M-VH 4th Gen mATX Motherboard
1600 / 1333 / 1066 MHz · Micro-ATX (180 mm x 216 mm) · Intel B85 Express Chipset
৳4,200৳4,500Save 7%
In stock
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Shop all GIGABYTE products

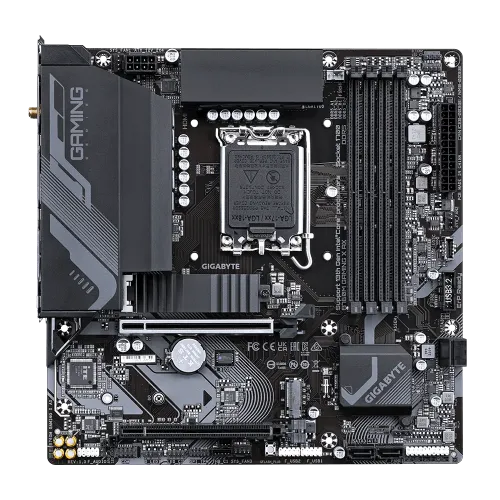

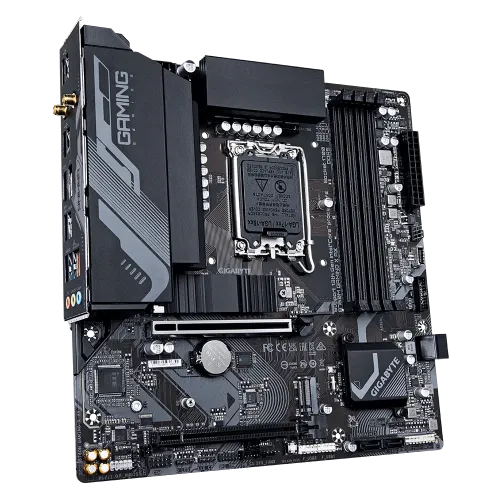

GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard
Model: B760M GAMING X AX DDR5Item #: gigabyte-b760m-gaming-x-ax-ddr5-intel-motherboard
৳19,300
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel B760 Express Chipset
- Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
- Micro ATX Form Factor; 24.4cm x 24.4cm
Overview
The GIGABYTE B760M GAMING X AX is a high-performance motherboard designed for gaming enthusiasts and power users. It supports both 14th, 13th and 12th-generation Intel processors with its LGA 1700 socket, ensuring compatibility with the latest CPU technologies. This 14th Gen Motherboard is its Hybrid 8+1+1 Phases Digital VRM solution, which provides exceptional power delivery and stability for optimal performance. This ensures that the motherboard can handle demanding tasks and overclocking without any issues. The motherboard supports Dual Channel DDR5 memory, allowing for faster data transfer rates and improved multitasking capabilities. With four DIMM slots and XMP memory module support, users can easily install and configure high-speed RAM for smooth and responsive system performance. The GIGABYTE B760M GAMING X AX motherboard. It features two PCIe 4.0 x4 M.2 connectors, enabling lightning-fast storage solutions. Additionally, the motherboard incorporates an advanced thermal design and M.2 Thermal Guard to maintain VRM power stability and optimize M.2 SSD performance, preventing thermal throttling and ensuring reliable operation. The EZ-Latch feature of the PCIe 4.0x16 slot allows for easy installation and removal of graphics cards, making it convenient for users who frequently upgrade their GPUs. The motherboard also offers fast networking capabilities with 2.5GbE LAN and Wi-Fi 6E 802.11ax support, ensuring low latency and high-speed connectivity for online gaming and other network-intensive tasks. The GIGABYTE B760M GAMING X AX provides a front USB-C® port with a 10Gb/s transfer speed, as well as DisplayPort (DP) and HDMI ports for multiple display setups. This allows users to connect various peripherals and external devices with ease. The Smart Fan 6 feature is designed to keep the system cool and quiet. It includes multiple temperature sensors and hybrid fan headers with FAN STOP technology, enabling precise control over fan speeds and optimizing cooling performance while minimizing noise levels. The Q-Flash Plus, allows users to update the motherboard's BIOS firmware without the need to install the CPU, memory, and graphics card. This feature provides a convenient and hassle-free method for keeping the system up to date with the latest firmware releases. The GIGABYTE B760M GAMING X AX DDR5 motherboard offers a comprehensive range of features and technologies for gamers and power users seeking exceptional performance, reliable connectivity, and convenient upgradability.
Buy GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard from the best Motherboard Shop in BD
Specifications
- Chipset
- Intel B760 Express Chipset
- RAM type
- Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
- Form factor
- Micro ATX Form Factor; 24.4cm x 24.4cm
- Memory — Type
- DDR5
- Memory — Slots
- 4
- Highlights — Model
- B760M GAMING X AX DDR5
- Graphics — Graphics
- Integrated Graphics Processor-Intel HD Graphics support:; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
- Expansion Slots — PCI
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16); 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Show all 28 specificationsShow fewer
- Highlights — Features
- Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E AX210
- Memory — Maximum Memory
- 192GB
- Basic Information — BIOS
- 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Connector & Ports — HDMI
- 1x HDMI
- Connector & Ports — RAID
- RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
- Basic Information — Audio
- Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out
- Connector & Ports — Audio
- 1 x front panel audio header; 3 x audio jacks
- Others — Bundled Software
- Norton Internet Security (OEM version); LAN bandwidth management software
- Others — Special Features
- Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Q-Flash Plus
- Highlights — Supported RAM
- 4x DDR5, Max 192GB 7600(OC)
- Connector & Ports — USB (s)
- Chipset:; 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header; 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header); 1 x USB 2.0/1.1 port on the back panel; Chipset+2 USB 2.0 Hubs:; 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
- Highlights — Graphics Output
- 1x HDMI, 1x DisplayPort
- Connector & Ports — LAN Port (s)
- Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps); 1 x RJ-45 port
- Basic Information — Supported CPU
- LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors; L3 cache varies with the CPU
- Connector & Ports — Display Port (s)
- 1x DisplayPort
- Connector & Ports — Supported Storage
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); 4 x SATA 6Gb/s connectors
- Connector & Ports — Internal I/O Ports

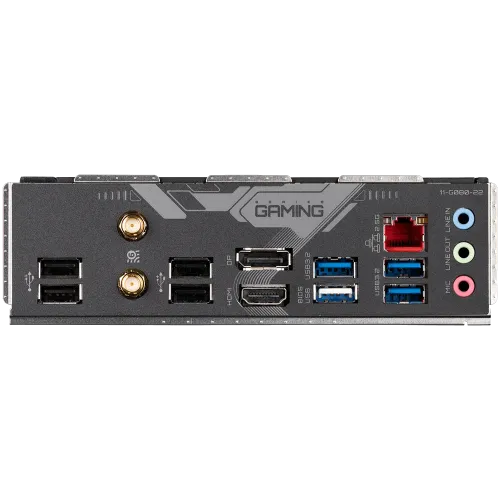

- 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 3 x system fan headers; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB Type-C header, with USB 3.2 Gen 2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 2 x Thunderbolt add-in card connectors; 1 x serial port header; 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper; ; Back Panel Connectors; 3 x USB 3.2 Gen 1 ports; 5 x USB 2.0/1.1 ports; 2 x SMA antenna connectors (2T2R); 1 x HDMI 2.0 port; 1 x DisplayPort; 1 x RJ-45 port; 3 x audio jacks
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — Wireless Communication module
- Intel Wi-Fi 6E AX210 (PCB rev. 1.0); WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.3; Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate; Intel Wi-Fi 6E AX211 (PCB rev. 1.1); WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.3; Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate; Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.2); WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.3; Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate;
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Compare with similar products

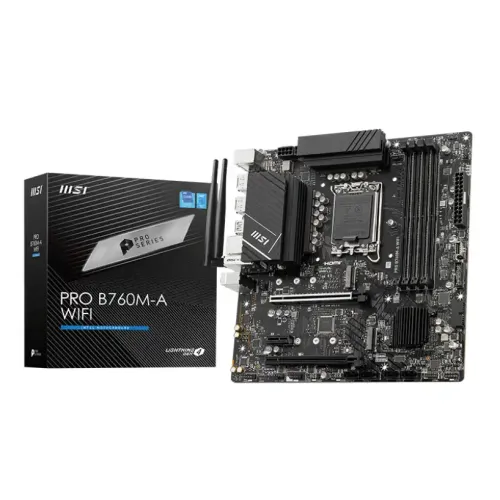

 This itemGIGABYTE B760M GAMING X AX DDR5 mATX Motherboard |  AsusASUS B760M-AYW WIFI mATX Motherboard |  AsusASUS TUF GAMING A620M-PLUS WIFI AMD AM5 Micro-ATX Motherboard |  MSIMSI PRO B760M-A WIFI mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳19,300 | ৳19,200 | ৳19,200 | ৳19,200 |
| Availability | Out of stock | In stock | In stock | Out of stock |
| Brand | GIGABYTE | Asus | Asus | MSI |
| RAM type | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP) | DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO); OptiMem II | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6800+ MHz; • 1DPC 2R Max speed up to 6400+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Intel XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory |
| Form factor | Micro ATX Form Factor; 24.4cm x 24.4cm | mATX Form Factor; 9.6 inch x 8.3 inch (24.4cm x 21.1cm) | Micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm); | mATX; 243.84mmx243.84mm |
| Chipset | Intel B760 Express Chipset | Intel B760 Chipset | AMD A620 Chipset | INTEL B760 |
