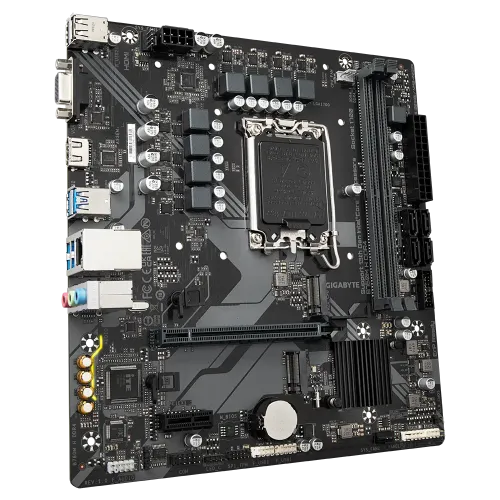

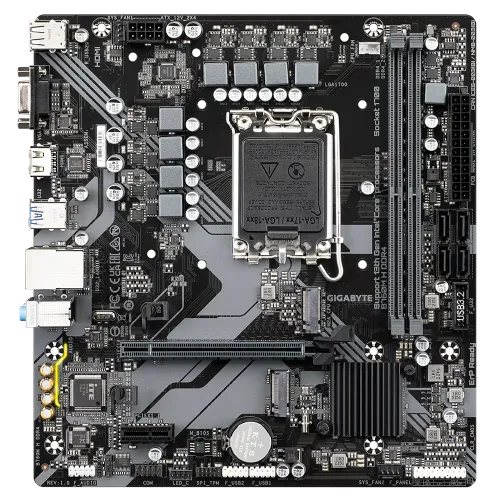

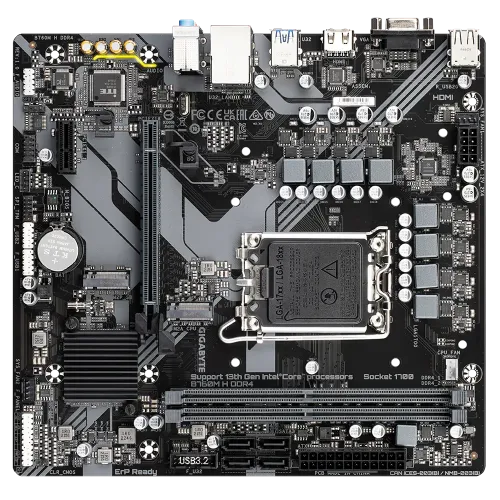

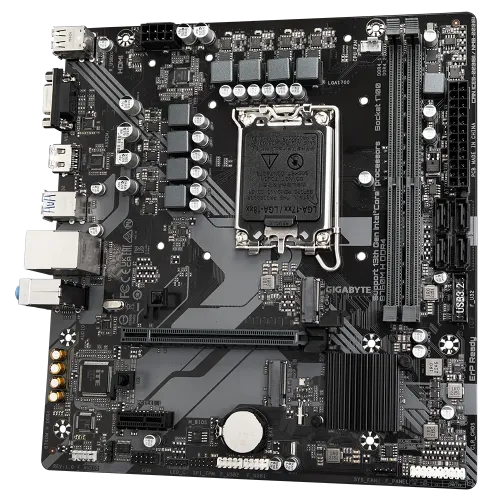

GIGABYTE B760M H DDR4 mATX Motherboard
Model: B760M H DDR4Item #: gigabyte-b760m-h-ddr4-motherboard
৳13,400
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel B760 Express Chipset
- Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; RAM type
- Micro ATX Form Factor; 23.0cm x 21.5cm
Overview
The GIGABYTE B760M H DDR4 mATX Motherboard is designed for Intel Socket LGA 1700 and supports 14th, 13th, and 12th Generation Series Processors. The motherboard's Hybrid 6+1+1 Phases Digital VRM Solution provides unrivaled performance for dependable computing. The Dual Channel DDR4 with 2 DIMMs supports the XMP Memory Module for greater memory capacities. The motherboard has two PCIe 4.0 x4 M.2 connectors for storage, ensuring compatibility with next-generation storage devices. The 14th Gen Motherboard includes an EZ-Latch PCIe 4.0 x16 Slot with a Quick Release Design for easy hardware installation. It also offers dependable network connectivity with GbE LAN and expanded connectivity possibilities with HDMI and D-Sub connectors. The Smart Fan 6 technology improves cooling performance even further by using numerous temperature sensors and hybrid fan headers with FAN STOP functionality, making the GIGABYTE B760M H DDR4 mATX Motherboard a reliable and effective alternative for a variety of computing applications.
Specifications
- Chipset
- Intel B760 Express Chipset
- RAM type
- Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules;
- Form factor
- Micro ATX Form Factor; 23.0cm x 21.5cm
- Memory — Type
- DDR4
- Memory — Slots
- 2
- Highlights — Model
- B760M H DDR4
- Graphics — Graphics

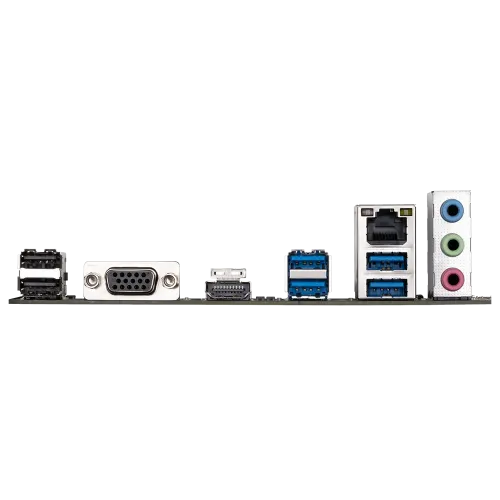

- Integrated Graphics Processor-Intel HD Graphics support:; - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.0 version and HDCP 2.3.
- Expansion Slots — PCI
- CPU:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; Chipset:; - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Show all 27 specificationsShow fewer
- Highlights — Features
- Realtek GbE LAN chip
- Memory — Maximum Memory
- up to 64GB (32 GB single DIMM capacity) of system memory
- Basic Information — BIOS
- 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Connector & Ports — HDMI
- 1x HDMI
- Connector & Ports — RAID
- RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
- Basic Information — Audio
- Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.; Support for S/PDIF Out
- Connector & Ports — Audio
- 3 x audio jacks
- Others — Bundled Software
- Norton Internet Security (OEM version); LAN bandwidth management software
- Others — Special Features
- Support for GIGABYTE Control Center (GCC); Support for Q-Flash
- Highlights — Supported RAM
- 2 x DDR4, Max 64GB 3200 Mhz
- Connector & Ports — USB (s)
- Chipset:; - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header); - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers);
- Highlights — Graphics Output
- 1x HDMI, 1 x D-Sub
- Connector & Ports — D-Sub (s)
- 1x D-Sub
- Connector & Ports — LAN Port (s)
- Realtek GbE LAN chip (1 Gbps/100 Mbps)
- Basic Information — Supported CPU
- LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors; L3 cache varies with the CPU
- Connector & Ports — Supported Storage
- CPU:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); - 4 x SATA 6Gb/s connectors;
- Connector & Ports — Internal I/O Ports
- 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x serial port header; 1 x Clear CMOS jumper
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Compare with similar products
 This itemGIGABYTE B760M H DDR4 mATX Motherboard |  ASRockASRock B840M-HVS AMD AM5 mATX Motherboard |  GIGABYTEGigabyte B550M K WIFI6E AMD AM4 mATX Motherboard |  ASRockASRock B760M-HDV/M.2 D4 Micro ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳13,400 | ৳13,500 | ৳13,500 | ৳13,500 |
| Availability | Out of stock | In stock | In stock | Out of stock |
| Brand | GIGABYTE | ASRock | GIGABYTE | ASRock |
| RAM type | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; | Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC); Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules | Dual Channel DDR4 Memory Technology; Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC); Supports ECC UDIMM memory modules (operate in non-ECC mode); Supports Intel Extreme Memory Profile (XMP) 2.0; ; 1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.; 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. |
| Form factor | Micro ATX Form Factor; 23.0cm x 21.5cm | Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm; 2oz Copper PCB | Micro ATX Form Factor; 24.4cm x 24.4cm | Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm |
| Chipset | Intel B760 Express Chipset | AMD B840 | AMD B550 | Intel B760 |
| M.2 slots | — | 1 | 1 | — |
