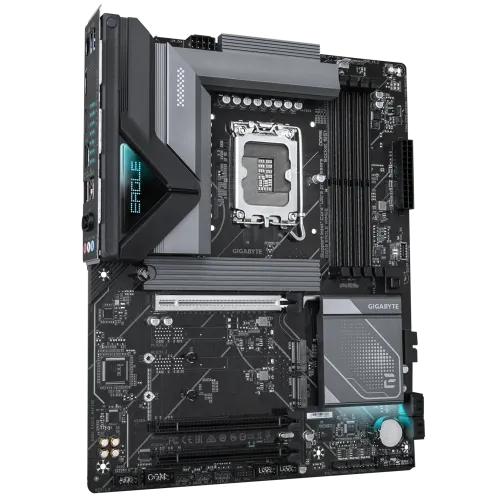

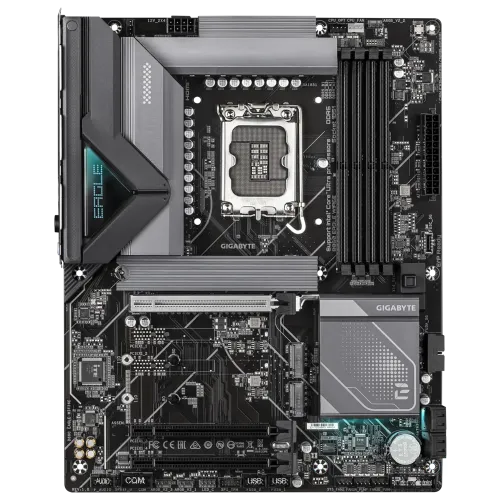

GIGABYTE B860 EAGLE WIFI6E LGA1851 ATX Motherboard

Name: GIGABYTE B860 EAGLE WIFI6E LGA1851 ATX Motherboard
Brand: GIGABYTE
Price: 33400 BDT
Availability: InStock

Model: B860 EAGLE WIFI6EItem #: gigabyte-b860-eagle-wifi6e-motherboard

৳33,400~~৳33,900~~Save 1%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B860 Express Chipset
1 M.2 slots
Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules RAM type
ATX Form Factor; 30.5cm x 24.4cm

Overview

The GIGABYTE B860 EAGLE WIFI6E ATX Motherboard is a high-performance, feature-rich motherboard designed to support Intel Core Ultra Processors, delivering outstanding efficiency and power. Built on the Intel B860 Express Chipset, this GIGABYTE B860 EAGLE WIFI6E ATX Motherboard offers exceptional memory support, accommodating up to 256GB of DDR5 RAM with speeds reaching 9066 MT/s OC, ensuring ultra-fast performance for gaming and content creation. For graphics, the GIGABYTE B860 EAGLE WIFI6E Motherboard supports Intel HD Graphics, providing HDMI 2.1 output with resolutions up to 4096x2160 at 60Hz and DisplayPort 2.1 with 3840x2160 at 144Hz, delivering stunning visuals. This GIGABYTE B860 EAGLE WIFI6E features a PCIe 5.0 x16 slot, perfect for high-end GPUs or NVMe SSDs, alongside two PCIe 4.0 x1 slots for additional expansion. Storage is optimized with three M.2 connectors supporting PCIe 5.0 and PCIe 4.0 SSDs and four SATA 6Gb/s ports supporting RAID 0, 1, 5, and 10 configurations. The GIGABYTE Motherboard ensures immersive audio with Realtek High Definition Audio, supporting 7.1-channel surround sound and S/PDIF Out for crystal-clear sound quality. For connectivity, the GIGABYTE B860 EAGLE WIFI6E Motherboard integrates Realtek 2.5GbE LAN for ultra-fast networking, Intel Wi-Fi 6E, and Bluetooth 5.3, ensuring seamless wireless communication. The rear I/O panel includes USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2 Type-A, and multiple USB 2.0 ports, offering extensive connectivity for peripherals. Additionally, this GIGABYTE B860 EAGLE WIFI6E ATX Motherboard features customizable RGB lighting with addressable Gen2 LED headers, enhanced cooling with multiple fan and water pump headers, and GIGABYTE-exclusive features like Q-Flash Plus for effortless BIOS updates and Smart Backup for data security. The GIGABYTE B860 EAGLE WIFI6E ATX Motherboard is a top-tier choice for gamers, enthusiasts, and professionals looking for a reliable, high-performance, and future-ready GIGABYTE Motherboard that delivers cutting-edge technology, superior connectivity, and robust durability.

Specifications

Chipset: Intel B860 Express Chipset
M.2 slots: 1
RAM type: Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
Form factor: ATX Form Factor; 30.5cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: B860 EAGLE WIFI6E
Graphics — Graphics: Integrated Graphics Processor-Intel® HD Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 2.1 version.

Show all 29 specifications

Expansion Slots — PCI: CPU:; - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; ; ; Chipset:; - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_3/4)
Highlights — Features: 3x M.2, Intel Wi-Fi 6E, Bluetooth 5.3
Memory — Maximum Memory: Up to 256 GB (64 GB single DIMM capacity)
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
Connector & Ports — Audio: 1 x front panel audio header; 3 x audio jacks;
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Q-Flash Plus; Support for Smart Backup
Highlights — Supported RAM: 4x DDR5, Max 256GB,Supports Up to 9066(O.C)
Connector & Ports — USB (s): Chipset:; - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support; - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header; - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel; - 2 x USB 3.2 Gen 1 ports available through the internal USB headers; - 4 x USB 2.0/1.1 ports on the back panel; Chipset+USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports available through the internal USB headers
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort
Connector & Ports — LAN Port (s): Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Basic Information — Supported CPU: Intel Core Ultra Processors; L3 cache
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: CPU:; - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU); Chipset:; - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB); - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2P_SB); - 4 x SATA 6Gb/s connectors

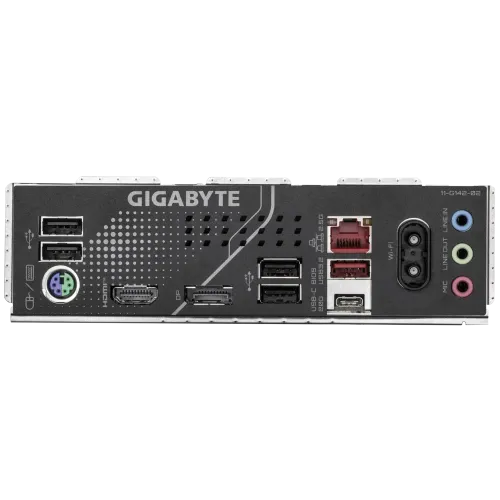

Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 2 x system fan headers; 2 x system fan/water cooling pump headers; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 3 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper; ; Back Panel Connectors:; 1 x PS/2 keyboard/mouse port; 1 x HDMI port (Note); 1 x DisplayPort (Note); 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support; 1 x USB 3.2 Gen 2 Type-A port (red); 4 x USB 2.0/1.1 ports; 2 x antenna connectors (2T2R); 1 x RJ-45 port; 3 x audio jacks;
Warranty Information — Manufacturing Warranty: 3 Year Warranty
Connector & Ports — Wireless Communication module: Intel Wi-Fi 6E AX211 (PCB rev. 1.0); - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless standard; Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1); - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless standard; (Actual data rate may vary depending on environment and equipment.)
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
