Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard

Name: Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard
Brand: GIGABYTE
Price: 23900 BDT
Availability: OutOfStock

Model: B860M DS3H WIFI6EItem #: gigabyte-b860m-ds3h-wifi6e-motherboard

৳23,900

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B860 Express Chipset;
1 M.2 slots
Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
Micro ATX Form Factor; 24.4cm x 24.4cm

Overview

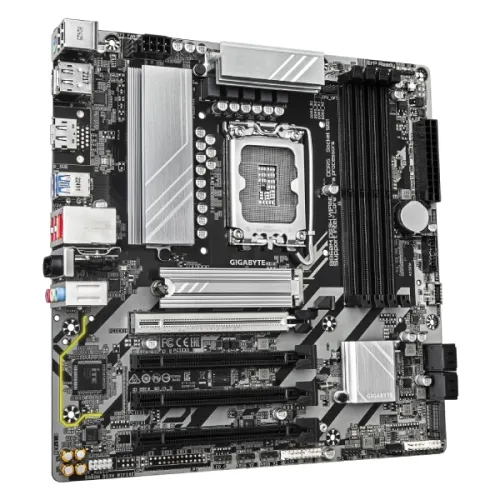

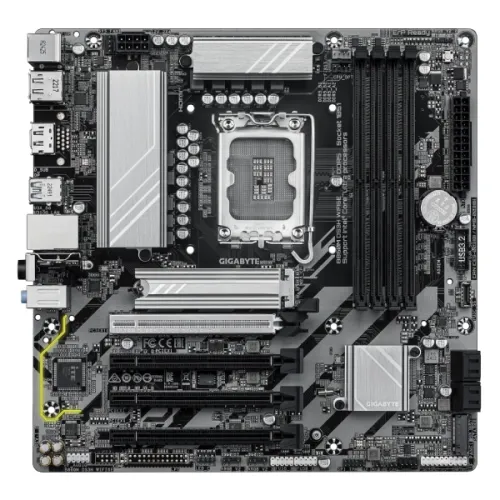

The Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX motherboard supports Intel Core Ultra CPUs. Its Intel B860 Express chipset provides exceptional performance, with support for up to 256GB of DDR5 RAM and overclocking rates of up to 9066 MT/s. This dual-channel memory architecture improves multitasking and responsiveness, making it suitable for gaming, content creation, and professional applications. The Gigabyte B860M DS3H WIFI6E motherboard offers Intel HD Graphics, allowing for triple-display output via HDMI and dual DisplayPort connectors, with resolutions of up to 4096x2160 at 60Hz and 3840x2160 at 144Hz, resulting in smooth and immersive images. The Gigabyte B860M DS3H WIFI6E LGA1851 motherboard includes a PCIe 5.0 M.2 slot for high-speed NVMe SSDs, a second PCIe 4.0 M.2 slot, and four SATA 6Gb/s ports that support RAID 0, 1, 5, and 10. A PCIe 5.0 x16 slot is reserved for powerful GPUs or NVMe storage, while three PCIe 4.0 x1 slots are available for extra devices. The Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX motherboard improves network connectivity with Realtek 2.5GbE LAN and Intel Wi-Fi 6E, which offer dual-band frequencies for quicker and more robust wireless connections, as well as Bluetooth 5.3 for easy device pairing. The Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX motherboard has broad USB connection, including USB 3.2 Gen 2 and Gen 1 ports, as well as USB Type-C support.

Specifications

Chipset: Intel B860 Express Chipset;
M.2 slots: 1
RAM type: Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: B860M DS3H WIFI6E
Graphics — Graphics: Integrated Graphics Processor-Intel® HD Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; - 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 2.1 version.; (Graphics specifications may vary depending on CPU support.); Support for up to triple-display at the same time

Show all 29 specifications

Expansion Slots — PCI: CPU:; - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; - 3 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1/2/3)
Highlights — Features: 2x M.2 slots, Realtek 2.5GbE LAN, Intel Wi-Fi 6E AX211
Memory — Maximum Memory: up to 256 GB (64 GB single DIMM capacity) of system memory
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI port
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-Flash; Support for Smart Backup
Highlights — Supported RAM: 4x DDR5, Max 256GB, Supports Up to 9066 (O.C)
Connector & Ports — USB (s): Chipset:; - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header; - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel; - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header); - 3 x USB 2.0/1.1 ports on the back panel; Chipset+USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports available through the internal USB headers
Highlights — Graphics Output: 2x DisplayPort, 1x HDMI port
Connector & Ports — LAN Port (s): Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Basic Information — Supported CPU: LGA1851 socket: Support for Intel Core Ultra Processors; L3 cache varies with CPU
Connector & Ports — Display Port (s): 2 x DisplayPort
Connector & Ports — Supported Storage: CPU:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU); Chipset:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB); - 4 x SATA 6Gb/s connectors

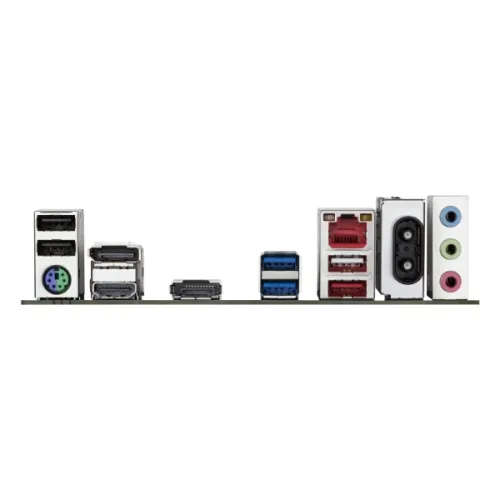

Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 1 x system fan header; 1 x system fan/water cooling pump header; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper; Back Panel Connectors; 1 x PS/2 keyboard/mouse port; 1 x HDMI port (Note); 2 x DisplayPorts (Note); 1 x USB 3.2 Gen 2 Type-A port (red); 2 x USB 3.2 Gen 1 ports; 3 x USB 2.0/1.1 ports; 2 x antenna connectors (2T2R); 1 x RJ-45 port; 3 x audio jacks; (Note) Actual support may vary by CPU.
Warranty Information — Manufacturing Warranty: 3 Year
Connector & Ports — Wireless Communication module: Intel Wi-Fi 6E AX211 (PCB rev. 1.0); - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless standard; Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1); - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless standard; (Actual data rate may vary depending on environment and equipment.)
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
