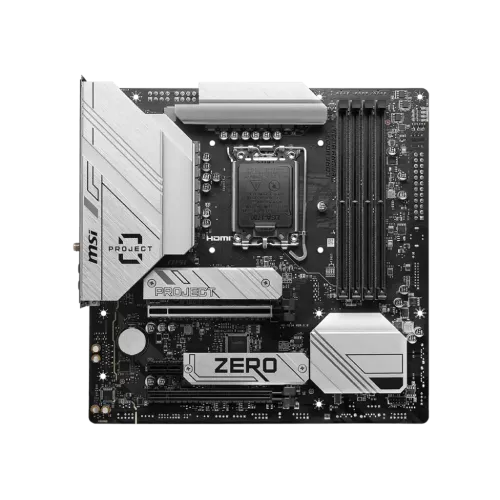

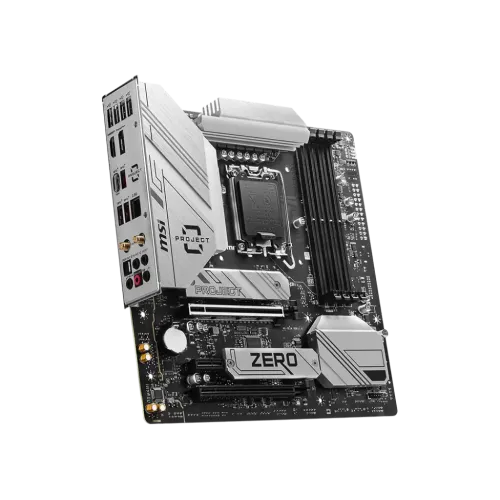

MSI B760M PROJECT ZERO m-ATX Motherboard
Model: B760M PROJECT ZEROItem #: msi-b760m-project-zero-motherboard
৳24,000৳24,990Save 4%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- INTEL B760 Chipset
- 1 M.2 slots
- Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7800+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile RAM type
- mATX; 243.84mmx243.84mm Form factor
Overview
The MSI B760M PROJECT ZERO m-ATX Motherboard is a powerhouse built to improve your computing experience. This motherboard is designed to handle a broad range of processors, including Intel Core 14th, 13th, and 12th Generation CPUs, as well as Intel Pentium Gold and Celeron processors, all of which fit perfectly into the LGA 1700 socket. The B760M PROJECT ZERO is equipped with cutting-edge technology and supports DDR5 Memory, which can achieve speeds of up to 7800+(OC) MHz. Its Enhanced Power Design has a 12+1+1 Duet Rail Power System, two 8-pin CPU power connections, Core Boost, and Memory Boost to provide peak performance for demanding jobs and applications. Immerse yourself in a lightning-fast gaming experience thanks to features such as the PCIe 5.0 slot, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2x2. The Premium Thermal Solution, which includes the Extended Heatsink Design and M.2 Shield Frozr, is designed for high-performance systems, allowing for continuous, efficient workloads without compromising temperature management. Audio fans will like the Audio Boost function, which provides a studio-grade sound experience while improving the overall audio quality of your system. The motherboard also has a high-quality PCB with a 6-layer design made of 2oz thicker copper and server-grade components, assuring longevity and dependability over time. The MSI B760M PROJECT ZERO m-ATX Motherboard offers a seamless balance of performance, power efficiency, and dependability, making it an excellent choice for gamers, content creators, and professionals alike.
Specifications
- Chipset
- INTEL B760
- M.2 slots
- 1
- RAM type
- Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7800+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile
- Form factor
- mATX; 243.84mmx243.84mm
- Memory — Type
- DDR5
- Memory — Slots
- 4x DIMM
- Highlights — Model
- B760M PROJECT ZERO
- Graphics — Graphics
- Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*; Support DP 1.4, maximum resolution of 4K 60Hz*
Show all 26 specificationsShow fewer
- Expansion Slots — PCI
- 2x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- Highlights — Features
- Realtek 2.5Gbps LAN, Intel Wi-Fi 6E
- Memory — Maximum Memory
- 192GB
- Connector & Ports — HDMI
- 1x HDMI 1.4
- Connector & Ports — RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Basic Information — Audio
- Realtek ALC897 Codec; 7.1-Channel High Performance Audio; Supports S/PDIF output
- Others — Special Features
- 4x EZ Debug LED
- Highlights — Supported RAM
- 4x DDR5, Max 192GB
- Connector & Ports — USB (s)
- 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 3.2 Gen1 Type A (Front); 3x USB 3.2 Gen2 Type A (Rear); 1x USB 3.2 Gen2 Type C (Front); 1x USB 3.2 Gen2x2 Type C (Rear)
- Highlights — Graphics Output
- 1x HDMI, 1x DisplayPort
- Connector & Ports — LAN Port (s)
- Realtek 2.5Gbps LAN
- Basic Information — Supported CPU
- Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA 1700
- Connector & Ports — Display Port (s)
- 1x DisplayPort
- Connector & Ports — Supported Storage
- 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G
- Connector & Ports — Internal I/O Ports

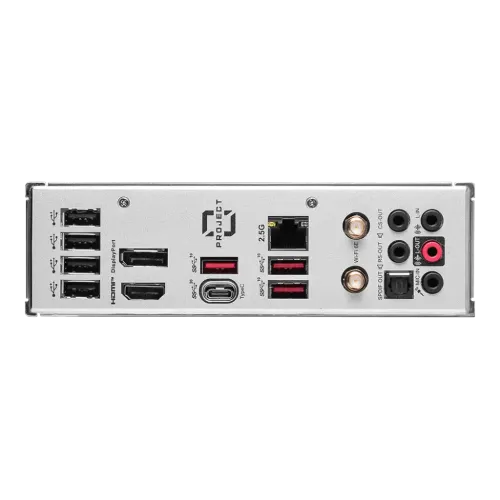

- Internal I/O Ports:; ; 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 4x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x TBT connector (JTBT, supports RTD3); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 2x RGB LED connector(JRGB); 4x USB 2.0 ports; 2x USB 3.2 Gen1 Type A ports; 1x USB 3.2 Gen2 Type C ports; ; BACK PANEL PORTS:; ; USB 2.0; DisplayPort 1.4; USB 3.2 Gen 2 10Gbps Type-A; 2.5G LAN Port; Wi-Fi / Bluetooth Antenna; HD Audio Connectors; HDMI™ 2.1 Port; USB 3.2 Gen 2x2 20Gbps Type-C; Optical S/PDIF OUT
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — Wireless Communication module
- Intel Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; ; Supports Bluetooth 5.3, FIPS, FISMA
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM pin header(Support TPM 2.0)
Compare with similar products
 This itemMSI B760M PROJECT ZERO m-ATX Motherboard |  GIGABYTEGigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard |  GIGABYTEGIGABYTE B760 AORUS ELITE DDR4 ATX Motherboard |  MSIMSI PRO Z790-S WiFi DDR5 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳24,000 | ৳23,900 | ৳24,000 | ৳24,000 |
| Availability | In stock | Out of stock | Out of stock | Out of stock |
| Brand | MSI | GIGABYTE | GIGABYTE | MSI |
| M.2 slots | 1 | 1 | 1 | — |
| RAM type | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7800+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile | Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| Form factor | mATX; 243.84mmx243.84mm | Micro ATX Form Factor; 24.4cm x 24.4cm | ATX Form Factor; 30.5cm x 24.4cm; | ATX; 243.84mmx304.8mm |
| Chipset | INTEL B760 | Intel B860 Express Chipset; | Intel B760 Express Chipset | INTEL Z790 |
