MSI PRO Z790-S WiFi DDR5 ATX Motherboard
Model: PRO Z790-SItem #: msi-pro-z790-s-wifi-ddr5-atx-motherboard
৳24,000
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- INTEL Z790 Chipset
- 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz RAM type
- ATX; 243.84mmx304.8mm Form factor
Overview

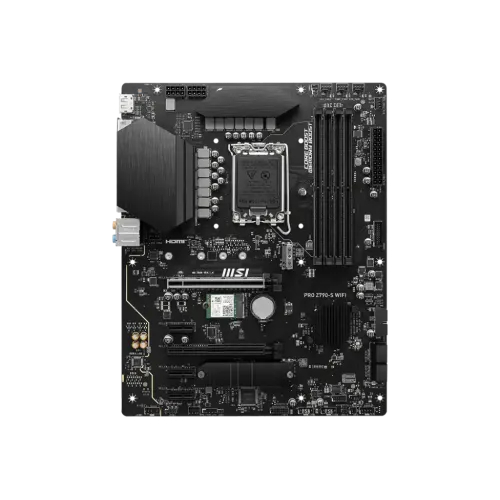

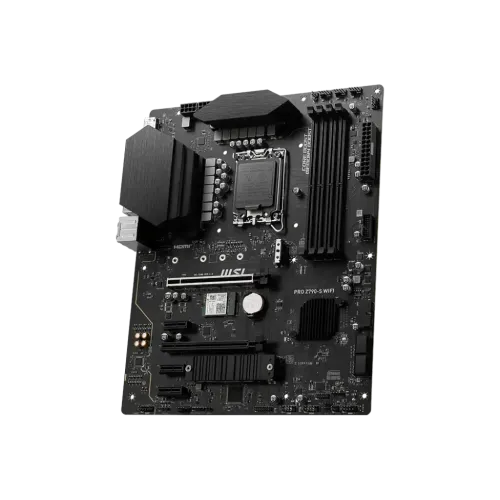

The MSI PRO Z790-S WiFi DDR5 ATX Motherboard is a powerful platform with cutting-edge technologies for high-performance computing. This motherboard, designed to handle 14th, 13th, and 12th Generation Intel Core, Pentium, and Celeron processors via the LGA 1700 socket, provides a strong foundation for a wide range of computer applications. The presence of four DDR5 RAM slots, each with a maximum capacity of 192GB and an overclocking potential of 6600+MHz (OC), provides not only abundant memory resources, but also the ability to improve performance and multitasking efficiency. The motherboard has 1x HDMI1.4 for graphics output, giving a dependable and diverse display solution with support for high-definition pictures. Dual 2.5Gbps LAN ensures lightning-fast and robust cable connections, and Wi-Fi 6E technology for high-speed wireless connectivity are among the sophisticated networking capabilities. Furthermore, the motherboard supports DisplayPort, which adds flexibility to the display arrangement and allows for high-resolution graphics for immersive computing experiences. Aside from its processor and memory capabilities, the MSI PRO Z790-S motherboard includes a number of features that improve overall system functioning. This motherboard delivers a feature-rich platform for demanding activities, whether for gaming aficionados, content makers, or professionals. The MSI PRO Z790-S WiFi DDR5 ATX Motherboard is a dependable and high-performance alternative for consumers looking for top-tier performance and adaptability in their computing systems, thanks to its powerful CPU compatibility, amazing RAM capacity and speed, and sophisticated networking and display capabilities.
Specifications
- Chipset
- INTEL Z790
- RAM type
- 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
- Form factor
- ATX; 243.84mmx304.8mm
- Memory — Type
- DDR5
- Memory — Slots
- 4
- Highlights — Model
- PRO Z790-S
- Graphics — Graphics
- 1x HDMI; Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz
- Expansion Slots — PCI
- 2x PCI-E x16 slot; 3x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset); PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Show all 23 specificationsShow fewer
- Highlights — Features
- Dual 2.5Gbps LAN with latest Wi-Fi 6E, DisplayPort1. 4
- Memory — Maximum Memory
- 192GB
- Connector & Ports — RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices;
- Basic Information — Audio
- Realtek ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output
- Connector & Ports — Audio
- 7.1-Channel High Definition Audio
- Highlights — Supported RAM
- 4x DDR5, Max 192GB, 6600+MHz (OC)
- Connector & Ports — USB (s)

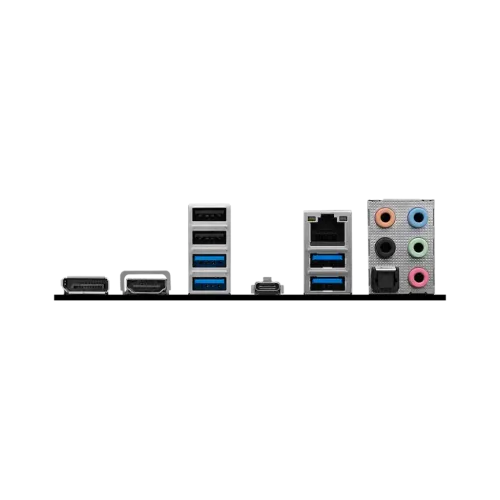

- 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 4x USB 3.2 Gen1 Type A (Rear); 4x USB 3.2 Gen1 Type A (Front); 1x USB 3.2 Gen2x2 Type C (Rear)
- Highlights — Graphics Output
- 1x HDMI1.4
- Connector & Ports — LAN Port (s)
- Realtek® RTL8125BG 2.5Gbps LAN
- Basic Information — Supported CPU
- Supports 14th/12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors; LGA 1700
- Connector & Ports — Display Port (s)
- 1x DisplayPort 1.4
- Connector & Ports — Internal I/O Ports
- 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 4x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x TBT connector (JTBT, supports RTD3); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 3.2 Gen1 Type A ports
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — Wireless Communication module
- Intel® Wi-Fi 6E; The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM pin header(Support TPM 2.0);
Compare with similar products
 This itemMSI PRO Z790-S WiFi DDR5 ATX Motherboard |  GIGABYTEGigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard |  MSIMSI B760M PROJECT ZERO m-ATX Motherboard |  GIGABYTEGIGABYTE B760 AORUS ELITE DDR4 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳24,000 | ৳23,900 | ৳24,000 | ৳24,000 |
| Availability | Out of stock | Out of stock | In stock | Out of stock |
| Brand | MSI | GIGABYTE | MSI | GIGABYTE |
| RAM type | 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz | Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7800+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile | Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Form factor | ATX; 243.84mmx304.8mm | Micro ATX Form Factor; 24.4cm x 24.4cm | mATX; 243.84mmx243.84mm | ATX Form Factor; 30.5cm x 24.4cm; |
| Chipset | INTEL Z790 | Intel B860 Express Chipset; | INTEL B760 | Intel B760 Express Chipset |
| M.2 slots | — | 1 | 1 | 1 |
