GIGABYTE X870 GAMING X WIFI7 DDR5 AMD AM5 ATX Motherboard

Name: GIGABYTE X870 GAMING X WIFI7 DDR5 AMD AM5 ATX Motherboard
Brand: GIGABYTE
Price: 36800 BDT
Availability: OutOfStock

Model: X870 GAMING X WIFI7Item #: gigabyte-x870-gaming-x-wifi7-am5-motherboard

৳36,800

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD X870 Chipset
Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules; ; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) RAM type
ATX Form Factor; 30.5cm x 24.4cm

Overview

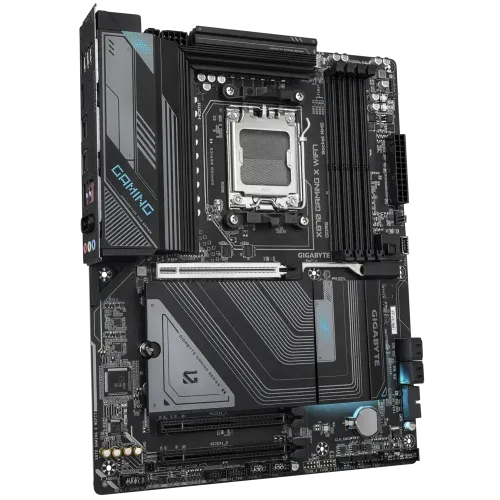

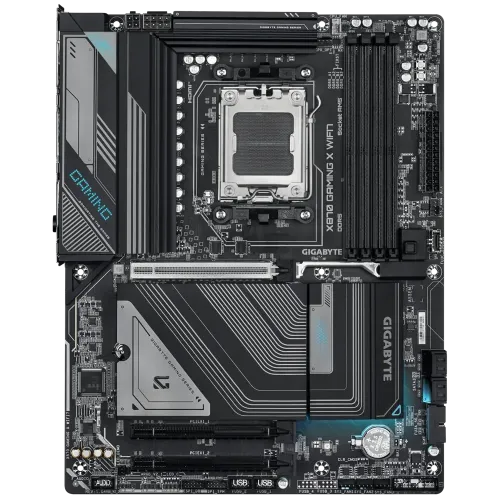

The GIGABYTE X870 GAMING X WIFI7 DDR5 AMD AM5 ATX Motherboard is a high-performance motherboard designed to support AMD Ryzen™ 9000, 8000, and 7000 Series processors, leveraging the power of the AMD Socket AM5 and advanced DDR5 memory technology. With four DIMM slots supporting dual-channel DDR5 memory and AMD EXPO Memory Module Support, it offers overclocking capabilities up to 8600MT/s, ensuring top-tier performance and compatibility. The motherboard features a robust digital twin 16+2+2 phases VRM solution, providing consistent and high-powered performance, ideal for overclocking and demanding applications. Efficient cooling solutions, such as the DDR Wind Blade for active cooling of memory modules and VRM Thermal Armor Advanced with I/O ZONE, keep your system cool under pressure. It also offers ultra-fast storage options with four M.2 slots, including three PCIe 5.0 x4 slots, for quick data access and transfer. Enhanced connectivity features such as 2.5GbE LAN, Wi-Fi 7, dual USB4 Type-C with DP-Alt, and HDMI provide versatile and high-speed networking options. The user-friendly design includes M.2 EZ-Match magnetic alignment, EZ-Latch Plus for PCIe and M.2 slots, and a friendly UI with multi-theme support, making installation and management a breeze. Additionally, the motherboard delivers superior audio quality with Realtek ALC1220 HD Audio and WIMA audiophile-grade capacitors, ensuring an immersive audio experience. Overall, the GIGABYTE X870 GAMING X WIFI7 DDR5 AMD AM5 ATX Motherboard is the ultimate choice for those seeking to unleash the full potential of their system with advanced memory support, robust power delivery, efficient cooling solutions, and extensive connectivity options

Specifications

Chipset: AMD X870
RAM type: Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules; ; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Form factor: ATX Form Factor; 30.5cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4 DIMMs
Highlights — Model: X870 GAMING X WIFI7
Graphics — Graphics: Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:; - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz; * Support for DisplayPort 1.4 version and HDR.; ; ; Integrated Graphics Processor with AMD Radeon™ Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version, HDCP 2.3, and HDR.; ** Support native HDMI 2.1 TMDS compatible ports.
Expansion Slots — PCI: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode; AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

Show all 27 specifications

Highlights — Features: Realtek 2.5GbE LAN, MediaTek Wi-Fi 7 MT7925
Memory — Maximum Memory: up to 256 GB (64 GB single DIMM capacity) of system memory;
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI port
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
Connector & Ports — Audio: Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-Flash; Support for Q-Flash Plus; Support for Smart Backup
Highlights — Supported RAM: 4x DDR5, Max 256GB, 8000(OC)
Connector & Ports — USB (s): CPU+ASMedia USB4® controller:; - 2 x USB4® USB Type-C® ports on the back panel; CPU:; - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel; - 1 x USB 3.2 Gen 1 port on the back panel; CPU+USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports on the back panel; Chipset:; - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header; - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header); - 4 x USB 2.0/1.1 ports available through the internal USB headers
Highlights — Graphics Output: 1 x HDMI, 2 x USB4 (Type-C)
Connector & Ports — LAN Port (s): Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Basic Information — Supported CPU: AMD Socket AM5, support for AMD Ryzen 9000, 8000 & 7000 Series Processors
Connector & Ports — Supported Storage: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:; AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs; AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs; 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs; * The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when a PCIe 4.0 x4 SSD is installed in the M2B_SB connector.; 4 x SATA 6Gb/s connectors;

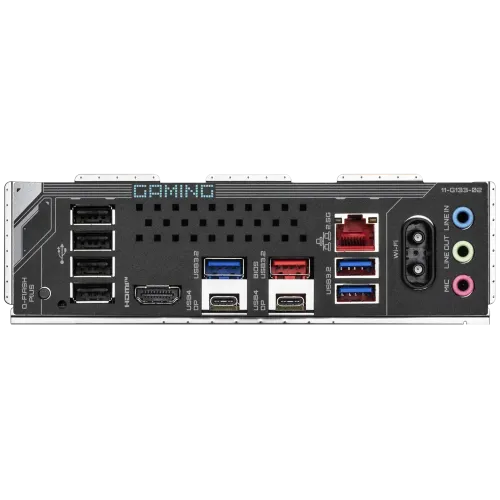

Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x 4-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 4 x system fan headers; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 4 x SATA 6Gb/s connectors; 3 x M.2 Socket 3 connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x power button; 1 x reset button; 1 x reset jumper; 1 x Clear CMOS jumper; ; Back Panel Connectors; 1 x Q-Flash Plus button; 2 x antenna connectors (2T2R); 1 x HDMI port(Note); 2 x USB4® USB Type-C® ports (DisplayPort*); 1 x USB 3.2 Gen 2 Type-A port (red); 3 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: AMD Wi-Fi 6E RZ616 (MT7922A22M); WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.2; Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Compare with similar products

	This itemGIGABYTE X870 GAMING X WIFI7 DDR5 AMD AM5 ATX Motherboard	MSIMSI PRO Z890-S WIFI LGA 1851 ATX Motherboard	AsusAsus TUF GAMING B850M-PLUS WIFI7 W mATX Motherboard	MSIMSI PRO X870E-P WIFI AM5 ATX Motherboard
Price	৳36,800	৳36,700	৳36,800	৳36,800
Availability	Out of stock	Out of stock	In stock	Out of stock
Brand	GIGABYTE	MSI	Asus	MSI
RAM type	Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules; ; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)	Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 8800+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 5600+ MT/s; Supports Intel POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel® XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM	Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP)	Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8200+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 6000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only; * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.; • The DIMM slots on this motherboard have double-sided latches.
Form factor	ATX Form Factor; 30.5cm x 24.4cm	ATX; 243.84mmx304.8mm	micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)	ATX; 243.84mmx304.8mm
Chipset	AMD X870	INTEL Z890	AMD B850	AMD X870E
M.2 slots	—	3	3	3
