MSI PRO X870E-P WIFI AM5 ATX Motherboard

Name: MSI PRO X870E-P WIFI AM5 ATX Motherboard
Brand: MSI
Price: 36800 BDT
Availability: OutOfStock

Model: PRO X870E-P WIFIItem #: msi-pro-x870e-p-wifi-motherboard

৳36,800

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD X870E Chipset
3 M.2 slots
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8200+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 6000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only; * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.; • The DIMM slots on this motherboard have double-sided latches. RAM type
ATX; 243.84mmx304.8mm Form factor

Overview

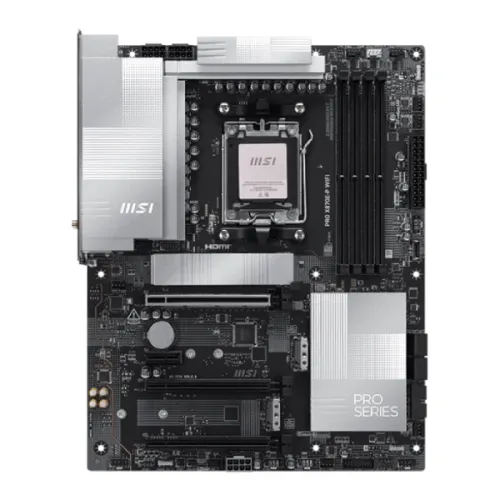

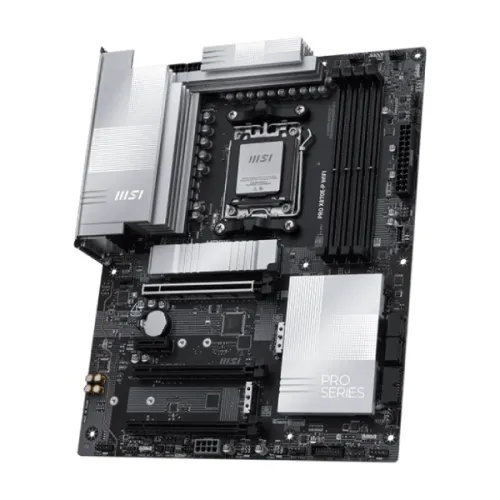

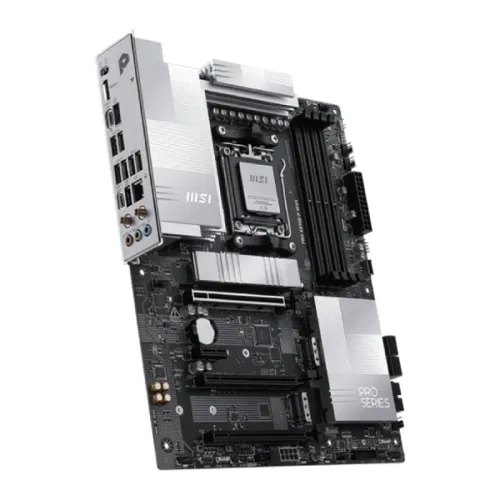

The MSI PRO X870E-P WIFI AM5 ATX motherboard is a high-performance option that supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors using the AM5 socket. With four DDR5 UDIMM slots, it supports up to 256 GB of memory at rates ranging from DDR5 8200 to 4800 MT/s, as well as AMD EXPO, JEDEC, and memory overclocking capabilities. The MSI PRO X870E-P WIFI motherboard supports dual-channel operation, non-ECC unbuffered RAM, and clock driver bypass mode for advanced tweaking. Onboard graphics include HDMI 2.1 and USB4 Type-C DisplayPort 1.4 outputs, both of which offer 4K resolution at 60 Hz. The MSI AM5 motherboard has four PCIe slots, including PCI\_E1, which provides Gen 5.0 x16 capability for Ryzen 9000 and 7000 series processors. The Realtek ALC897 codec powers the audio, allowing for high-definition sound in 7.1 channels. Storage compatibility includes three M.2 slots with PCIe 5.0 and 4.0 interfaces, as well as four SATA 6G connections. The MSI PRO X870E-P WIFI motherboard has M.2\_1 operating at PCIe 5.0 x4 for Ryzen 9000 and 7000 series, and the board supports RAID 0, 1, and 10 for SATA, and RAID 0, 1, and 5 for NVMe on Ryzen 9000 CPUs. Wi-Fi 7, Bluetooth 5.4, and a Realtek 8126VB 5G LAN enable high-speed networking. USB compatibility is extensive, with USB 2.0, 5Gbps, 10Gbps, 20Gbps, and a USB4 40Gbps Type-C port. The MSI PRO X870E-P WIFI AM5 ATX motherboard also features internal headers for CPU and system fan connectors, RGB and ARGB headers, TPM 2.0, a tuning controller connector, and EZ Debug and Memory Detection LEDs. This ATX motherboard is 243.84 mm by 304.8 mm and runs Windows 11 64-bit, making it suitable for high-end gaming and workstation setups that require cutting-edge connection, performance, and future-proof features.

Specifications

Chipset: AMD X870E
M.2 slots: 3
RAM type: Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8200+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 6000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only; * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.; • The DIMM slots on this motherboard have double-sided latches.
Form factor: ATX; 243.84mmx304.8mm
Memory — Type: DDR5
Memory — Slots: 4x UDIMM
Highlights — Model: PRO X870E-P WIFI
Graphics — Graphics: 1x HDMI; Support HDMITM 2.1, maximum resolution of 4K 60Hz; 1x Type-C DisplayPort; USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Show all 27 specifications

Expansion Slots — PCI: 3x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E1 slot; Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors); Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors); Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processors)
Highlights — Features: 3x M.2 Slot, Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
Memory — Maximum Memory: 256GB
Basic Information — BIOS: Flash BIOS Button
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices; *RAID 5 configuration is only supported by Ryzen 9000 series processors.
Basic Information — Audio: Realtek ALC897; 7.1-Channel High Definition Audio
Others — Special Features: 4x EZ Debug LED; 1x EZ Memory Detection LED
Highlights — Supported RAM: 4x DDR5 UDIMM, Up to 8200 (OC) Mhz

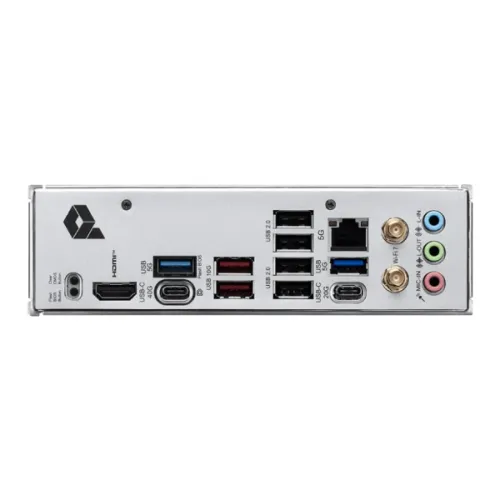

Connector & Ports — USB (s): 4x USB 2.0 (Rear); 6x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 4x USB 5Gbps Type A (Front); 2x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear); 1x USB 40Gbps Type C (Rear)
Highlights — Graphics Output: 1x HDMI, 1x Type-C DisplayPort
Connector & Ports — LAN Port (s): Realtek 8126VB 5G LAN
Basic Information — Supported CPU: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5
Connector & Ports — Display Port (s): 1x Type-C DisplayPort
Connector & Ports — Supported Storage: 3x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices; 4x SATA 6G; M2_1 slot; • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors); *Please refer to the manual for M.2 SSD heatsink restrictions.
Connector & Ports — Internal I/O Ports: 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 6x System Fan; 1x EZ Conn-header (JAF_1); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 6x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; Supports Bluetooth 5.4, MLO, 4KQAM; * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Connector & Ports — TPM (Trusted Platform Module ): 1x TPM pin header(Support TPM 2.0)
