MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
Model: PRO Z890-S WIFIItem #: msi-pro-z890-s-wifi-motherboard
৳36,700
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- INTEL Z890 Chipset
- 3 M.2 slots
- Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 8800+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 5600+ MT/s; Supports Intel POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel® XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM RAM type
- ATX; 243.84mmx304.8mm Form factor
Overview
MSI PRO Z890-P WIFI LGA 1851 ATX Motherboard

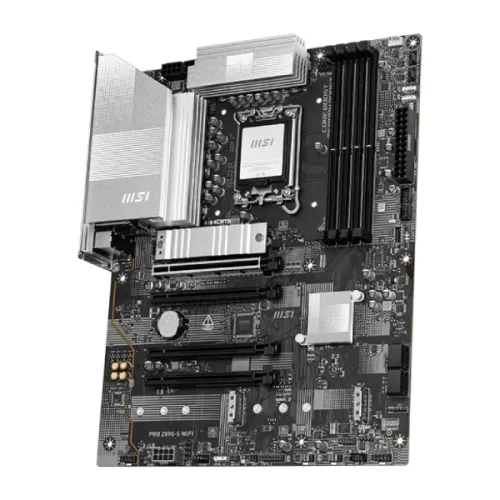

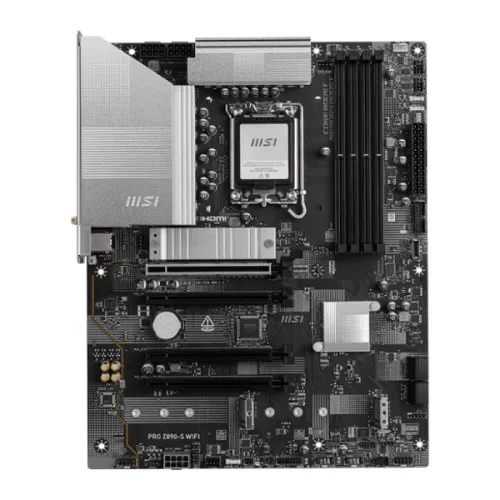

The MSI PRO Z890-S WIFI LGA 1851 ATX motherboard is a powerhouse that supports Intel Core Ultra Processors (Series 2) and has an LGA 1851 socket, providing great performance and durability. This MSI Z890 Motherboard supports DDR5 memory with dual-channel architecture, allowing speeds of up to 8800+ MT/s (OC) and a maximum capacity of 256GB. With a 6-layer server-grade PCB, dual 8-pin CPU power connectors, and a sturdy 12+1+1+1 Duet Rail Power System, it guarantees excellent power supply and stability for high-performance systems. Thermal efficiency is improved by cooling solutions such as the M.2 Shield Frozr, 7W/mK MOSFET thermal pads, and expanded heatsink. Installation is made easy and convenient by EZ DIY features like EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna. The MSI PRO Z890-S WIFI motherboard features cutting-edge connectivity with PCIe 5.0 slots, Lightning Gen 5 x4 M.2, and a Thunderbolt 4 connection supporting 40Gbps transfer speeds, 8K displays, and USB 4.0 compatibility. In addition, this MSI Intel Ultra Series Motherboard has Bluetooth 5.4 for smooth device integration, 2.5G LAN, and Intel Wi-Fi 7 for quick, safe, and reliable networking. The Realtek ALC897 Codec-powered Audio Boost technology guarantees rich audio for multimedia and gaming. The MSI PRO Z890-S WiFi LGA1851 Motherboard Storage options are diverse and flexible, with support for up to three M.2 slots, four SATA 6G connections, and RAID configurations. Onboard graphics include HDMI 2.1, DisplayPort 1.4, and a Type-C DisplayPort that supports resolutions up to 8K. Other features include 4x PCI-E x16 slots, USB 20Gbps Type-C connections, RGB and addressable LED connectors, TPM 2.0 support, and sophisticated debugging LEDs. The MSI PRO Z890-S WIFI LGA 1851 ATX motherboard is built on a long-lasting ATX PCB and is tailored for Windows 11 64-bit, giving it an excellent choice for both professionals and gamers.
Specifications
- Chipset
- INTEL Z890
- M.2 slots
- 3
- RAM type
- Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 8800+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 5600+ MT/s; Supports Intel POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel® XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM
- Form factor
- ATX; 243.84mmx304.8mm
- Memory — Type
- DDR5
- Memory — Slots
- 4x UDIMM
- Highlights — Model
- PRO Z890-S WIFI
- Graphics — Graphics
- 1x HDMI; Support HDMI 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DisplayPort 1.4, maximum resolution of 4K 60Hz*; 1x Type-C DisplayPort; Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Show all 26 specificationsShow fewer
- Expansion Slots — PCI
- 4x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
- Highlights — Features
- 3x M.2 Slot, 1x 2.5Gbps LAN, Intel Wi-Fi 7, Bluetooth 5.4
- Memory — Maximum Memory
- 256GB
- Connector & Ports — HDMI
- 1x HDMI 2.1
- Connector & Ports — RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
- Basic Information — Audio
- Realtek ALC897 Codec; 7.1-Channel High Definition Audio
- Connector & Ports — Audio
- 1x Front Audio (JAUD)
- Others — Special Features
- 4x EZ Debug LED
- Highlights — Supported RAM
- 4x DDR5, Dual Channel 8800+ MT/s (OC), Max 256GB
- Connector & Ports — USB (s)

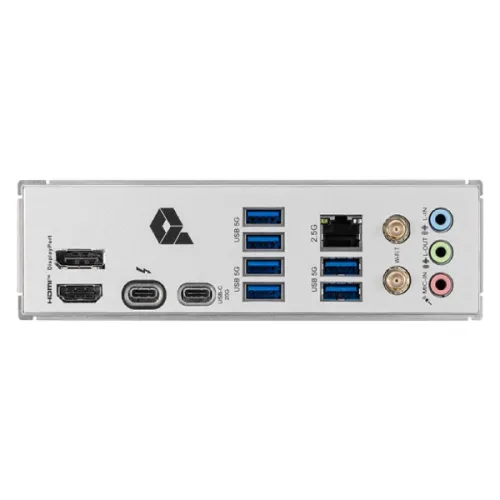

- 4x USB 2.0 (Front); 6x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 20Gbps Type C (Rear); 1x USB 20Gbps Type C (Front)
- Highlights — Graphics Output
- 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
- Connector & Ports — LAN Port (s)
- Realtek 8125D 2.5Gbps LAN
- Basic Information — Supported CPU
- Supports Intel Core Ultra Processors (Series 2); LGA 1851
- Connector & Ports — Display Port (s)
- 1x DisplayPort; 1x Type-C DisplayPort; Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
- Connector & Ports — Supported Storage
- 3x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G
- Connector & Ports — Internal I/O Ports
- 1x Thunderbolt5 card connector(JTBT5, support RTD3); 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 4x System Fan; 1x EZ Conn-header (JAF_1); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 20Gbps Type C ports
- Warranty Information — Manufacturing Warranty
- 3 Year warranty
- Connector & Ports — Wireless Communication module
- Intel Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; Supports Bluetooth 5.4**, MLO, 4KQAM
Compare with similar products
 This itemMSI PRO Z890-S WIFI LGA 1851 ATX Motherboard |  AsusAsus TUF GAMING B850M-PLUS WIFI7 W mATX Motherboard |  MSIMSI PRO X870E-P WIFI AM5 ATX Motherboard |  GIGABYTEGIGABYTE X870 GAMING X WIFI7 DDR5 AMD AM5 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳36,700 | ৳36,800 | ৳36,800 | ৳36,800 |
| Availability | Out of stock | In stock | Out of stock | Out of stock |
| Brand | MSI | Asus | MSI | GIGABYTE |
| M.2 slots | 3 | 3 | 3 | — |
| RAM type | Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 8800+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 5600+ MT/s; Supports Intel POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel® XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM | Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP) | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8200+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 6000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only; * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.; • The DIMM slots on this motherboard have double-sided latches. | Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules; ; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Form factor | ATX; 243.84mmx304.8mm | micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) | ATX; 243.84mmx304.8mm | ATX Form Factor; 30.5cm x 24.4cm |
| Chipset | INTEL Z890 | AMD B850 | AMD X870E | AMD X870 |
