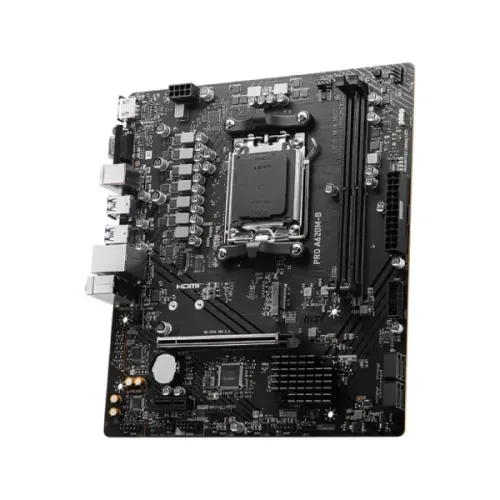

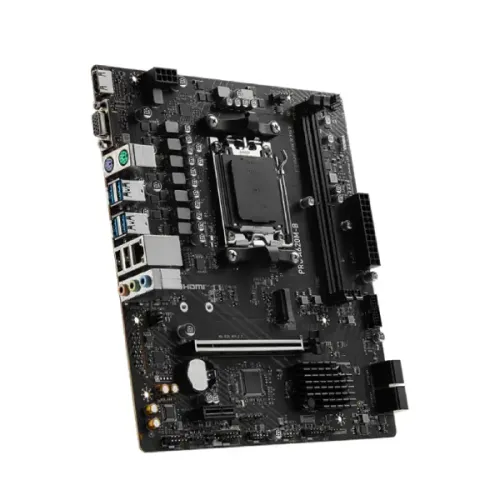

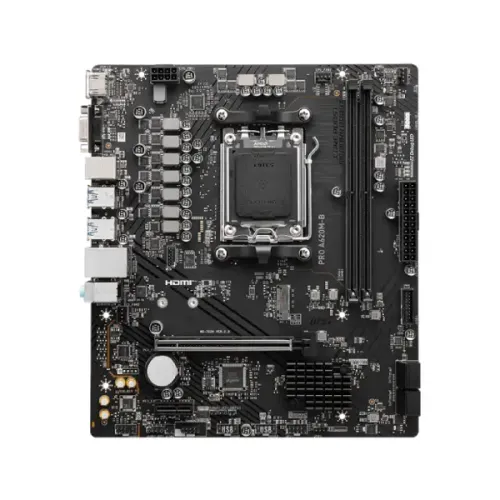

MSI PRO A620M-B AM5 mATX Motherboard
Model: PRO A620M-BItem #: msi-pro-a620m-b-motherboard
৳11,800৳12,650Save 7%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD A620 Chipset
- 1 M.2 slots
- Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s; 1DPC 1R Max speed up to 6800+ MHz; 1DPC 2R Max speed up to 6000+ MHz RAM type
- mATX; 215mmx243.84mm Form factor
Overview
The MSI PRO A620M-B AM5 mATX Motherboard is a high-performance, compact solution intended for contemporary AMD systems, making it an excellent choice for customers looking to build using cutting-edge technology. Powered by the AMD A620 chipset, the MSI PRO A620M-B Motherboard supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors via the sophisticated AM5 socket, providing long-term compatibility and cutting-edge performance. The MSI PRO A620M-B has two DDR5 memory slots and can handle up to 128GB of non-ECC, unbuffered dual-channel DDR5 RAM at overclocked speeds of up to 6800+ MHz (1DPC 1R) and 6000+ MHz (1DPC 2R), as well as complete support for AMD EXPO memory profiles. Onboard graphics capability includes an HDMI 2.1 connector with 4K at 60Hz output and a legacy VGA port, which are both accessible on CPUs with integrated graphics, increasing adaptability for various display configurations. The MSI PRO A620M-B AM5 mATX Motherboard has a PCIe 4.0 x16 slot that converts to x16, x8, or x4 depending on the CPU used, as well as an extra PCIe 3.0 x1 slot. Storage is likewise versatile, with one PCIe 4.0 x4 M.2 slot (supporting 2280 and 2260 NVMe SSDs) and four SATA 6Gbps ports that support RAID 0, 1, and 10, making the MSI PRO A620M-B Motherboard suitable for both speed and redundancy in storage setups. Networking is driven by the Realtek RTL8125BG 2.5G LAN, providing ultra-fast wired connections, while the integrated Realtek ALC897 audio codec delivers 7.1-channel high-definition sound for immersive multimedia experiences. Connectivity on the rear I/O includes USB 3.2 Gen 1 5Gbps Type-A ports, USB 2.0, HDMI, VGA, audio jacks, LAN, and PS/2 keyboard and mouse support, while internal headers provide power connections, fan headers, USB ports, audio, TPM 2.0 support, addressable RGB (JARGB_V2) and RGB (JRGB) headers for lighting, and EZ Debug LEDs for simplified troubleshooting. The MSI PRO A620M-B measures 215mm by 243.84mm and fits inside micro-ATX cases, making it ideal for small yet powerful desktop configurations. The MSI Motherboard is compatible with Windows 11 and Windows 10 64-bit, providing a future-ready platform for gamers, artists, and professionals. Whether you call it the MSI PRO A620M-B, MSI PRO A620M-B Motherboard, or simply the MSI Motherboard, this board is a solid basis for any high-performance AMD system.
Specifications
- Chipset
- AMD A620
- M.2 slots
- 1
- RAM type
- Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s; 1DPC 1R Max speed up to 6800+ MHz; 1DPC 2R Max speed up to 6000+ MHz
- Form factor
- mATX; 215mmx243.84mm
- Memory — Type
- DDR5
- Memory — Slots
- 2x DIMMs
- Highlights — Model
- PRO A620M-B
- Graphics — Graphics
- 1x HDMI; Support HDMITM 2.1, maximum resolution of 4K 60Hz*; 1x VGA; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Show all 26 specificationsShow fewer
- Expansion Slots — PCI
- 1x PCI-E x16 slot; Supports x16 (For Ryzen 9000 and 7000 Series processors); Supports x8 (For Ryzen 8700/ 8600/ 8400 Series processors); Supports x4 (For Ryzen 8500/ 8300 Series processors); 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- Highlights — Features
- Realtek RTL8125BG 5G LAN
- Memory — Maximum Memory
- 128GB
- Connector & Ports — HDMI
- 1x HDMI
- Connector & Ports — RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Basic Information — Audio
- Realtek® ALC897 Codec; 7.1-Channel High Definition Audio
- Connector & Ports — Audio
- 1x Front Audio (JAUD)
- Others — Special Features
- 4x EZ Debug LED
- Highlights — Supported RAM
- 2x DDR5, up to 6800+(OC) MT/s
- Connector & Ports — USB (s)
- 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front)
- Connector & Ports — VGA (s)
- 1x VGA
- Highlights — Graphics Output
- 1x HDMI, 1x VGA
- Connector & Ports — LAN Port (s)
- Realtek RTL8125BG 2.5G LAN
- Basic Information — Supported CPU
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5
- Connector & Ports — Supported Storage
- 1x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices; 4x SATA 6G
- Connector & Ports — Internal I/O Ports
- 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM pin header(Support TPM 2.0)
Compare with similar products
 This itemMSI PRO A620M-B AM5 mATX Motherboard |  GIGABYTEGigabyte B550M K AMD AM4 Micro ATX Motherboard |  AsusASUS Pro Q570M-C/CSM LGA1200 mATX Motherboard |  AsusAsus PRIME A620M-K AM5 mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳11,800 | ৳11,700 | ৳11,800 | ৳11,850 |
| Availability | In stock | In stock | In stock | In stock |
| Brand | MSI | GIGABYTE | Asus | Asus |
| M.2 slots | 1 | — | 11 | — |
| RAM type | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s; 1DPC 1R Max speed up to 6800+ MHz; 1DPC 2R Max speed up to 6000+ MHz | Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*; * ECC memory (ECC mode) support varies by CPU; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); Optimem; 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.; 11th Gen Intel processors support 2933/2800/2666/2400/2133 natively. | 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO) |
| Form factor | mATX; 215mmx243.84mm | Micro ATX Form Factor; 24.4cm x 24.4cm | mATX Form Factor | micro-ATX Form Factor; 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm) |
| Chipset | AMD A620 | AMD B550 | Intel Q570 Chipset | AMD A620 Chipset |
