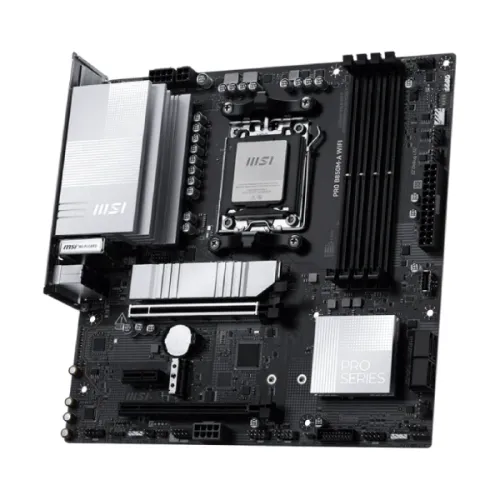

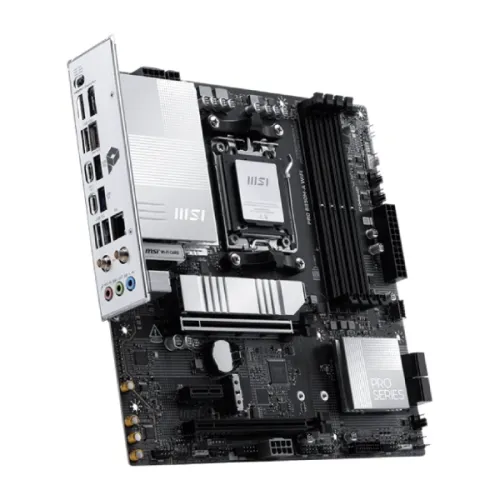

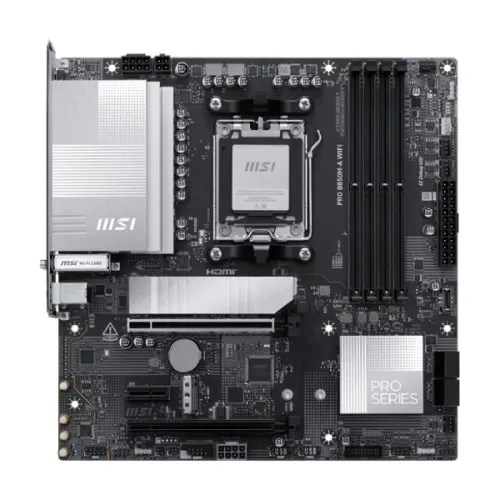

MSI PRO B850M-A WIFI AM5 mATX Motherboard
Model: PRO B850M-A WIFIItem #: msi-pro-b850m-a-wifi-motherboard
৳27,200
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B850 Chipset
- 2 M.2 slots
- Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8200+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 6000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*; * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.; The DIMM slots on this motherboard only have single-sided latches. RAM type
- mATX; 243.84mmx243.84mm Form factor
Overview
The MSI PRO B850M-A WIFI AM5 mATX Motherboard is a powerful and feature-rich solution that supports AMD Ryzen 9000, 8000, and 7000 desktop processors. This motherboard, built for stability, performance, and future-ready connectivity. With the AMD B850 chipset, this MSI motherboard delivers high-speed performance with features packed into an efficient micro-ATX form factor (243.84mm x 243.84mm).For superior memory support, the PRO B850M-A WIFI features 4x DDR5 UDIMM slots that can handle up to 256GB of high-speed RAM. It supports DDR5 speeds from 4800 MT/s (JEDEC) up to an impressive 8200+ MT/s (OC), with full compatibility for AMD EXPO technology, dual-channel architecture, and clock driver bypass mode. Whether you're overclocking for speed or running stable stock settings, this MSI PRO B850M-A WIFI ensures smooth and responsive performance.In terms of graphics and display capabilities, this is equipped with 1x HDMI 2.1 and 1x DisplayPort 1.4, both supporting up to 4K resolution at 60Hz — ideal for users running APUs with integrated graphics. Expansion is handled via 3 PCIe slots, including PCIe 5.0 x16 for GPUs (Ryzen 9000/7000), PCIe 4.0 x4, and PCIe 3.0 x1, ensuring flexible upgrade paths for graphics cards and other PCIe devices.For ultra-fast storage, the MSI PRO B850M-A WIFI Motherboard includes 2x M.2 slots with advanced PCIe lanes. The M2_1 slot supports PCIe 5.0 x4 with Ryzen 9000/7000 and PCIe 4.0 x4 with Ryzen 8000, while the M2_2 slot supports PCIe 4.0 x4 or x2, depending on CPU model. Also, 4x SATA 6Gb/s ports provide support for traditional SSDs or HDDs with RAID 0, 1, and 10 configurations. NVMe drives in M.2 slots also support RAID 0 and 1, enhancing storage flexibility and speed.On the networking front, the MSI B850M-A WIFI features Realtek 8126VB 5G LAN for ultra-fast wired internet and a built-in Wi-Fi 7 module, supporting dual-band (2.4GHz/5GHz/6GHz), MU-MIMO, and Bluetooth 5.4 — perfect for lag-free online gaming, wireless peripherals, and seamless streaming. Future-proof wireless support is ensured with Windows 11 24H2 readiness for full Wi-Fi 7 and Bluetooth 5.4 functionality.For audio, the PRO B850M-A WIFI Motherboard integrates Realtek ALC897 7.1-channel high-definition audio, delivering rich, immersive sound for gamers and media users. Internal headers and connectors include multiple USB options (including USB 10Gbps Type-C and Type-A), addressable RGB headers, TPM 2.0 support, and EZ Debug LEDs for quick troubleshooting.With robust build quality, modern connectivity, and high-speed memory and storage support, the MSI PRO B850M-A WIFI AM5 motherboard is an exceptional choice for users looking to build a reliable and performance-driven PC using the latest AMD technologies.
Specifications
- Chipset
- AMD B850
- M.2 slots
- 2
- RAM type
- Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8200+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 6000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*; * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.; The DIMM slots on this motherboard only have single-sided latches.
- Form factor
- mATX; 243.84mmx243.84mm
- Memory — Type
- DDR5
- Memory — Slots
- 4x UDIMM
- Highlights — Model
- PRO B850M-A WIFI
- Graphics — Graphics
- 1x HDMI; Support HDMITM 2.1, maximum resolution of 4K 60Hz; 1x DisplayPort; Support DisplayPort 1.4, maximum resolution of 4K 60Hz; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Show all 28 specificationsShow fewer
- Expansion Slots — PCI
- 2x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E1 slot; Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors); Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
- Highlights — Features
- 3x M.2 Slot, Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
- Memory — Maximum Memory
- 256GB
- Basic Information — BIOS
- Flash BIOS Button
- Connector & Ports — HDMI
- 1x HDMI; Support HDMITM 2.1, maximum resolution of 4K 60Hz
- Connector & Ports — RAID
- Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
- Basic Information — Audio
- Realtek ALC897; 7.1-Channel High Definition Audio
- Connector & Ports — Audio
- 1x Front Audio (JAUD)
- Others — Special Features
- 4x EZ Debug LED; 1x EZ Memory Detection LED
- Highlights — Supported RAM
- 4x DDR5 UDIMM, Up to 8200 (OC) Mhz
- Connector & Ports — USB (s)

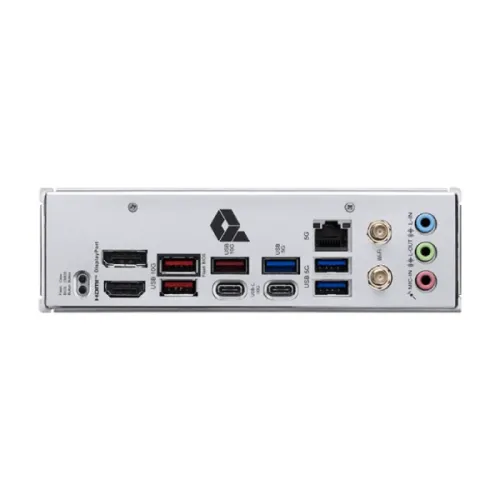

- 4x USB 2.0 (Front); 3x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 3x USB 10Gbps Type A (Rear); 2x USB 10Gbps Type C (Rear); 1x USB 10Gbps Type C (Front)
- Highlights — Graphics Output
- 1x HDMI, 1x DisplayPort
- Connector & Ports — LAN Port (s)
- Realtek 8126VB 5G LAN
- Basic Information — Supported CPU
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5
- Connector & Ports — Display Port (s)
- 1x DisplayPort; Support DisplayPort 1.4, maximum resolution of 4K 60Hz
- Connector & Ports — Supported Storage
- 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G; M2_1 slot; Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors); Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors); M2_2 slot; Supports up to PCIe 4.0 x4; Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors); *Please refer to the manual for M.2 SSD heatsink restrictions.
- Connector & Ports — Internal I/O Ports
- 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 3x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — Wireless Communication module
- Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (160MHz) up to 2.9Gbps; Supports 802.11 a/b/g/n/ac/ax/be; Supports Bluetooth 5.4, MLO, 4KQAM; * 6GHz band support may depend on every country’s regulations, and Wi-Fi 7 will be ready in Windows 11 version 24H2.; ** The Bluetooth version may be updated; please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM pin header(Support TPM 2.0)
Compare with similar products

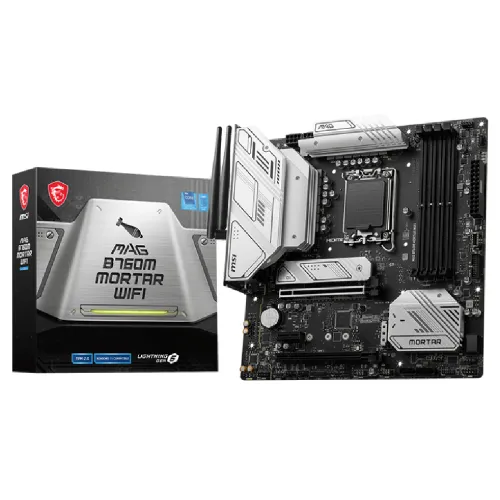

 This itemMSI PRO B850M-A WIFI AM5 mATX Motherboard |  AsusAsus PRIME B860M-A WIFI-CSM LGA 1851 micro-ATX Motherboard |  AsusAsus B850M AYW GAMING WIFI AM5 m-ATX Motherboard |  MSIMSI MAG B760M MORTAR WIFI DDR5 mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳27,200 | ৳26,900 | ৳26,900 | ৳27,000 |
| Availability | Out of stock | In stock | In stock | Out of stock |
| Brand | MSI | Asus | Asus | MSI |
| M.2 slots | 2 | 2 | 9000 | — |
| RAM type | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8200+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 6000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*; * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.; The DIMM slots on this motherboard only have single-sided latches. | Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; DIMM Fit; Supports Intel Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII); * Adjustments will be made based on the specifications of mass-produced memory products available on the market.; * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | Supports up to; 8200+MT/s(OC) with Ryzen™ 9000 Series Processors,; 8400+MT/s(OC) with Ryzen™ 8000 Series Processors,; 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,; ECC and Non-ECC Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP) | Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7000+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile (XMP) |
| Form factor | mATX; 243.84mmx243.84mm | micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) | micro-ATX Form Factor; 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm ) | mATX; 243.84mmx243.84mm |
| Chipset | AMD B850 | Intel B860 Chipset | AMD B850 Chipset | INTEL B760 |
