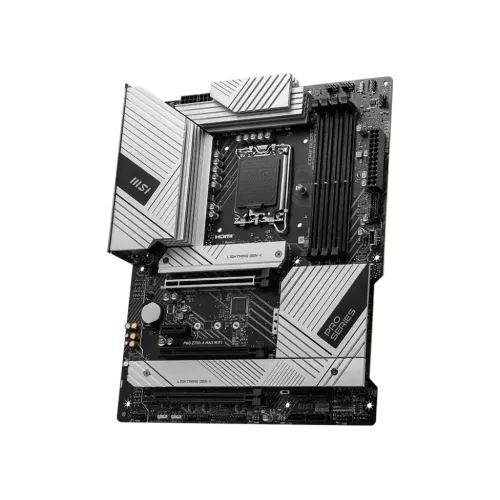

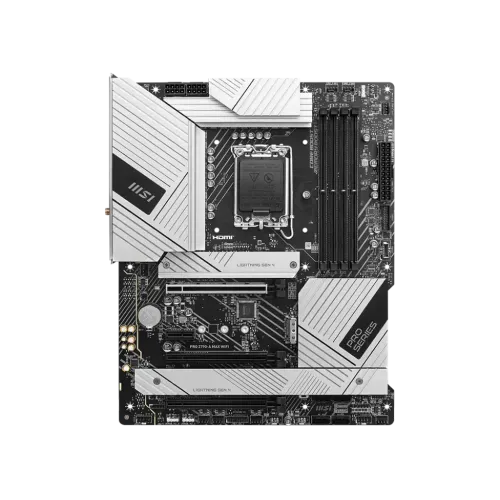

MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard

Name: MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard
Brand: MSI
Price: 34100 BDT
Availability: OutOfStock

Model: PRO Z790-A MAX WIFIItem #: msi-pro-z790-a-max-wifi-motherboard

৳34,100

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

INTEL Z790 Chipset
4 M.2 slots
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7800+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Intel XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory RAM type
ATX; 243.84mmx304.8mm Form factor

Overview

The MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard is a high-performance motherboard designed to meet current computer and gaming demands. It is designed to handle Intel Core 14th, 13th, and 12th Generation CPUs, as well as Intel Pentium Gold and Celeron processors, and it makes use of the LGA 1700 socket for broad processor compatibility. Its compatibility for DDR5 memory, which operates at Dual Channel DDR5 speeds of 7800+MHz (when overclocked), ensures fast data access and better multitasking. The motherboard delivers superior power delivery and efficiency because of its 16+1+1 digital power system, 80A smart power stages, twin 8-pin CPU power connections, Core Boost, and Memory Boost technologies. It also excels in thermal management with an extended heatsink, MOSFET thermal pads, choke thermal pads, and M.2 Shield Frozr, all contributing to sustained high performance during extended gaming sessions. Durability and dependability are ensured by a high-quality 6-layer PCB composed of 2oz thicker copper and server-grade components. PCIe 5.0 slots, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2x2 connectors provide lightning-fast connection. Intel Turbo USB 3.2 Gen 2 provides robust and fast USB communication. The 2.5G LAN with Wi-Fi 7 Solution provides professional and multimedia users with enhanced networking capabilities, enabling safe, stable, and fast network connections. Finally, AUDIO BOOST 5 pampers your ears with studio-grade sound quality, giving an immersive gaming experience with remarkable audio clarity and fidelity. The MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard is an excellent choice for gamers and content makers seeking top-tier performance and connection on a single board.

Buy MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard Shop in BD

Specifications

Chipset: INTEL Z790
M.2 slots: 4
RAM type: Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7800+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Intel XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory
Form factor: ATX; 243.84mmx304.8mm
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: PRO Z790-A MAX WIFI
Graphics — Graphics: 1x HDMI; Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 8K 60Hz*

Show all 27 specifications

Expansion Slots — PCI: 3x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Highlights — Features: 2.5G LAN with Wi-Fi 7 Solution
Memory — Maximum Memory: 192GB
Connector & Ports — HDMI: 1x HDMI 2.1
Connector & Ports — RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Basic Information — Audio: Realtek ALC4080 Codec; 7.1-Channel USB High-Performance Audio; Supports S/PDIF output
Connector & Ports — Audio: 1x Front Audio (JAUD)
Others — Special Features: LED FEATURE: 4x EZ Debug LED
Highlights — Supported RAM: 4x DDR5, 7800+MHz (OC), Max 192GB

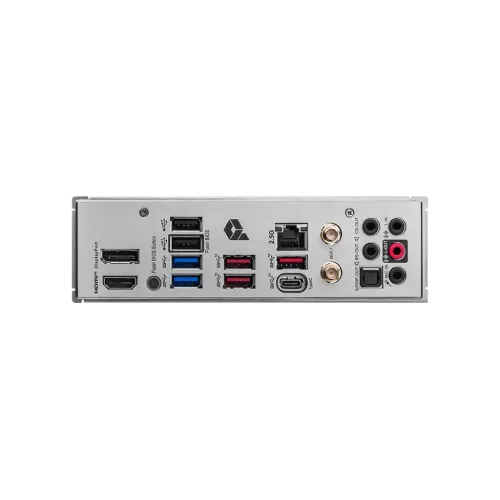

Connector & Ports — USB (s): 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 3.2 Gen1 Type A (Rear); 2x USB 3.2 Gen1 Type A (Front); 3x USB 3.2 Gen2 Type A (Rear); 1x USB 3.2 Gen2 Type C (Front); 1x USB 3.2 Gen2x2 Type C (Rear)
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort
Connector & Ports — LAN Port (s): Intel 2.5Gbps LAN;
Basic Information — Supported CPU: Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA 1700
Connector & Ports — Display Port (s): 1x DisplayPort 1.4
Connector & Ports — Supported Storage: 4x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 6x SATA 6G
Connector & Ports — Internal I/O Ports: 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 6x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x TBT connector (JTBT, supports RTD3); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 4x USB 2.0 ports; 2x USB 3.2 Gen1 Type A ports; 1x USB 3.2 Gen2 Type C ports; 1x USB4 card connector (JTBT_U4_1, supports RTD3)
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — Wireless Communication module: Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; Supports Bluetooth 5.4**, MLO, 4KQAM;
Connector & Ports — TPM (Trusted Platform Module ): 1x TPM pin header(Support TPM 2.0)

Compare with similar products

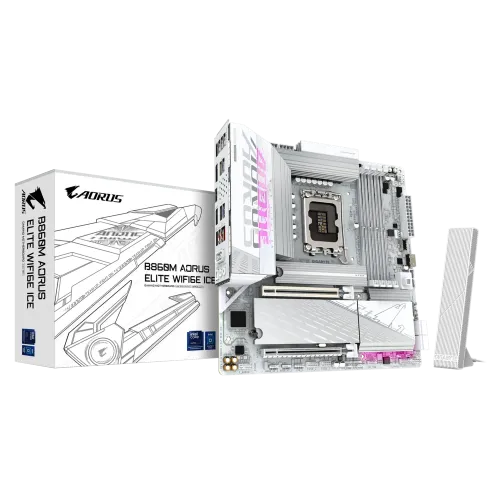

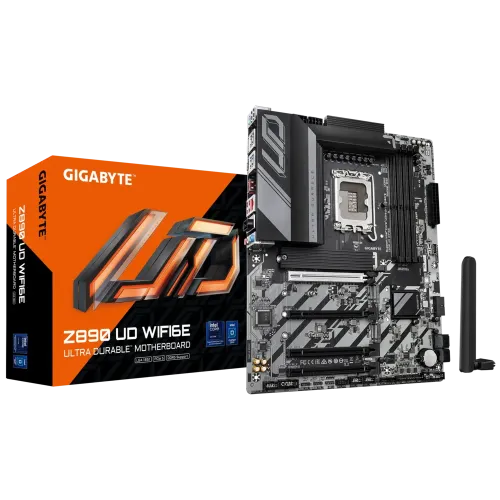

	This itemMSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard	GIGABYTEGigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard	GIGABYTEGIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard	ASRockASRock B850 STEEL LEGEND WIFI AM5 DDR5 ATX Motherboard
Price	৳34,100	৳33,900	৳33,900	৳34,000
Availability	Out of stock	In stock	In stock	Out of stock
Brand	MSI	GIGABYTE	GIGABYTE	ASRock
M.2 slots	4	1	1	1
RAM type	Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7800+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Intel XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory	Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; Support CUDIMM memory module	Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules	- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC); - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Form factor	ATX; 243.84mmx304.8mm	ATX Form Factor; 30.5cm x 24.4cm	Micro ATX Form Factor; 24.4cm x 24.4cm	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; - 8 Layer PCB
Chipset	INTEL Z790	Intel Z890 Express Chipset	Intel B860 Express Chipset	AMD B850
