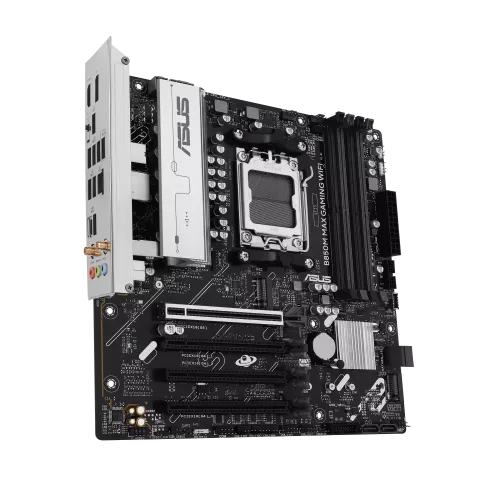

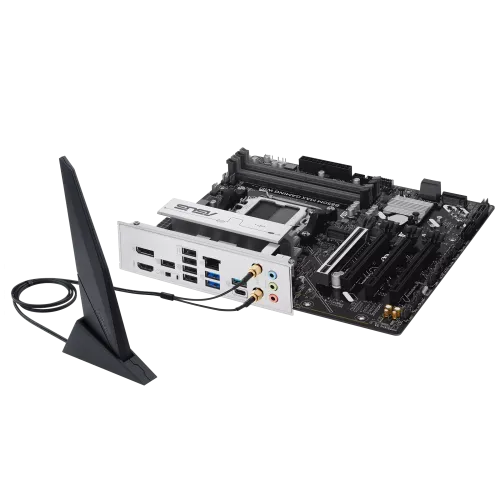

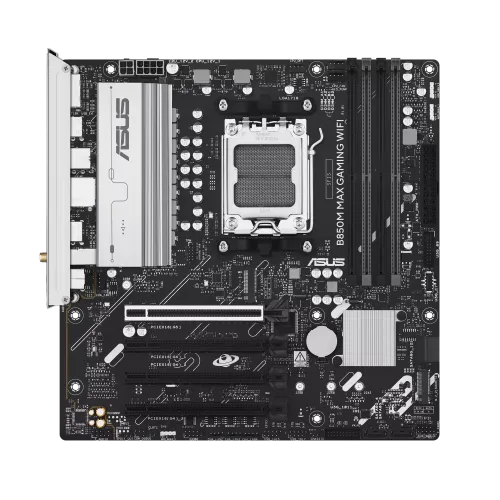

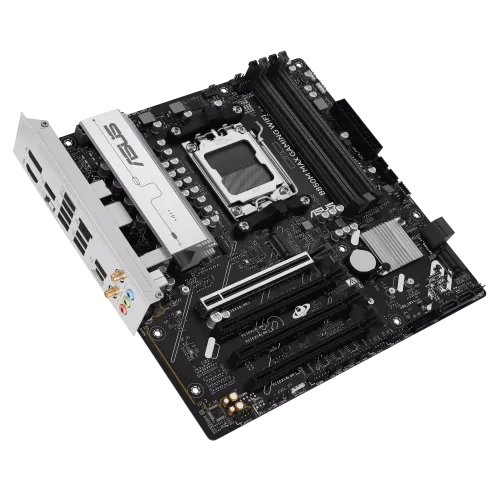

Asus B850M MAX GAMING WIFI AM5 mATX Motherboard
Model: B850M MAX GAMING WIFIItem #: asus-b850m-max-gaming-wifi-motherboard
৳28,900৳29,200Save 1%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B850 Chipset
- 3 M.2 slots
- Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO); ASUS Enhanced Memory Profile (AEMP) RAM type
- mATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Overview
The Asus B850M MAX GAMING WIFI AM5 mATX Motherboard is built on the AMD B850 chipset. The Asus Motherboard supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors, delivering exceptional speed and stability for modern computing. This Asus B850M MAX GAMING WIFI Motherboard features four DDR5 DIMM slots that support up to 256GB of memory and speeds reaching 8000+MT/s (OC), enhanced with dual-channel architecture, AMD EXPO, and ASUS Enhanced Memory Profile (AEMP) for optimized performance. Non-ECC, un-buffered DDR5 memory support with On-Die ECC ensures dependable and efficient multitasking. For visuals, the Asus B850M MAX GAMING WIFI Motherboard provides DisplayPort and HDMI outputs capable of 8K at 30Hz and 4K at 60Hz, depending on your CPU. It offers versatile expansion with PCIe 5.0 and PCIe 4.0 slots, ideal for high-speed GPUs and add-on cards. Storage capabilities are extensive, with three M.2 slots supporting PCIe 5.0 and 4.0 modes, along with four SATA 6Gb/s ports. The Asus B850M MAX GAMING WIFI Motherboard supports RAID 0, 1, 5, and 10 configurations through AMD RAIDXpert2 Technology, maximizing performance and data security. Networking and connectivity are equally robust, featuring Realtek 1Gb Ethernet with ASUS LANGuard, built-in Wi-Fi 6, and Bluetooth 5.4 for seamless online gaming and data transfers. The rear I/O provides nine USB ports, including USB Type-C and 10Gbps options, complemented by premium 7.1 surround sound with Realtek HD Audio CODEC. The Asus B850M MAX GAMING WIFI AM5 mATX Motherboard also incorporates ASUS 5X Protection III, Aura Sync RGB lighting, Fan Xpert 2+, Armoury Crate software, and BIOS FlashBack for easy updates.
Specifications
- Chipset
- AMD B850 Chipset
- M.2 slots
- 3
- RAM type
- Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO); ASUS Enhanced Memory Profile (AEMP)
- Form factor
- mATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
- Memory — Type
- DDR5
- Memory — Slots
- 4 x DIMM
- Highlights — Model
- B850M MAX GAMING WIFI
- Graphics — Graphics
- Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.; Supports max. 8K@30Hz as specified in DisplayPort 1.4.; Supports 4K@60Hz as specified in HDMI 2.1.
Show all 29 specificationsShow fewer
- Expansion Slots — PCI
- AMD Ryzen 9000 & 7000 Series Desktop Processors; 1 x PCIe 5.0 x16 slot (supports x16 mode); 3 x PCIe 4.0 x16 slot (support x1 mode); AMD Ryzen 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); 3 x PCIe 4.0 x16 slot (support x1 mode)
- Highlights — Features
- 3 x M.2 slots, Wi-Fi 6, Bluetooth v5.4, 1 x Realtek 1Gb Ethernet
- Memory — Maximum Memory
- 256GB
- Basic Information — BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1x HDMI
- Connector & Ports — RAID
- AMD RAIDXpert2 Technology; Ryzen 9000 Series Processors: RAID 0/1/5/10; Ryzen 8000 Series Processors: RAID 0/1; Ryzen 7000 Series Processors: RAID 0/1/10
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers
- Connector & Ports — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
- Others — Bundled Software
- ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert 2+; ASUS AI Advisor; ASUS Driver Hub; ASUS GlideX; TurboV Core; ASUS CPU-Z; Norton 360 Deluxe (60 Days Free Trial); WinRAR (40 Days Free Trial); UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode; - ASUS MyHotkey
- Others — Special Features
- ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage protection; - SafeSlot; - Stainless-steel back I/O; ASUS Q-Design; - Q-Dashboard; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack™ button; - BIOS FlashBack™ LED; - Pre-mounted I/O shield; - SafeSlot; Aura Sync; - Addressable RGB Gen 2 headers
- Highlights — Supported RAM
- 4 x DIMM, Max. 256GB, DDR5 Up to 8000+MT/s(OC)
- Connector & Ports — USB (s)
- Rear USB (Total 9 ports); 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C); 2 x USB 5Gbps ports (2 x Type-A); 5 x USB 2.0 ports (5 x Type-A); Front USB (Total 9 ports); 1 x USB 5Gbps connector (supports USB Type-C); 2 x USB 5Gbps header support 4 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; USB Type-C power delivery output: max. 5V/3A
- Highlights — Graphics Output
- 1 x HDMI port, 1 x DisplayPort
- Connector & Ports — LAN Port (s)
- 1 x Realtek 1Gb Ethernet; ASUS LANGuard
- Basic Information — Supported CPU
- AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
- Connector & Ports — Display Port (s)
- 1 x DisplayPort
- Connector & Ports — Supported Storage
- Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen™ 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); AMD Ryzen™ 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*; AMD B850 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode); 4 x SATA 6Gb/s ports

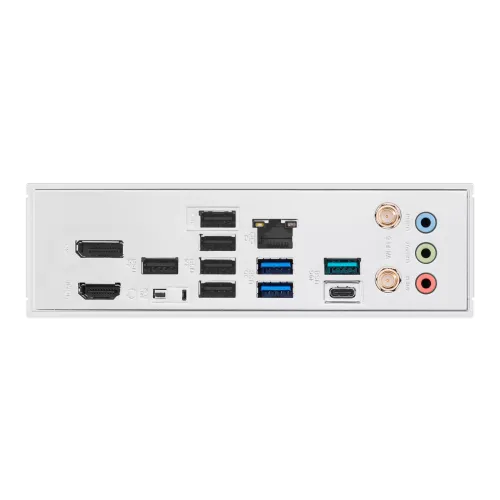

- Connector & Ports — Internal I/O Ports
- 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®); 2 x USB 5Gbps ports (2 x Type-A); 5 x USB 2.0 ports (5 x Type-A); 1 x DisplayPort; 1 x HDMI™ port; 1 x Wi-Fi module; 1 x Realtek 1Gb Ethernet port; 3 x Audio jacks; 1 x BIOS FlashBack™ button; Internal I/O Connectors; Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connectors; 1 x 4-pin +12V CPU Power connectors; Storage Related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps connector (supports USB Type-C® ); 2 x USB 5Gbps header support 4 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable RGB Gen 2 headers; 1 x Clear CMOS header; 1 x Chassis Intrusion header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin System Panel header
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — Wireless Communication module
- Wi-Fi 6; 1x1 Wi-Fi 6 (802.11ax); Supports 2.4/5GHz frequency band; Bluetooth v5.4
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x SPI TPM header (14-1 pin)
Compare with similar products

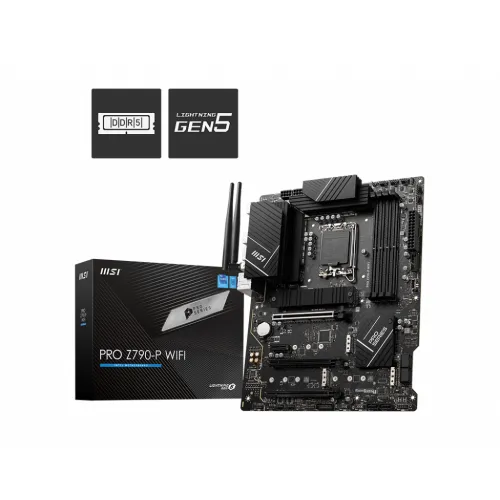

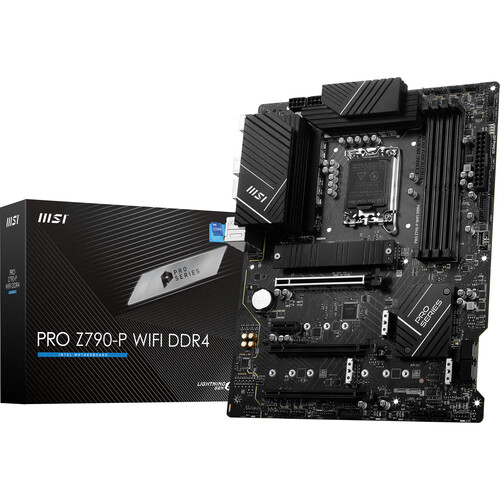

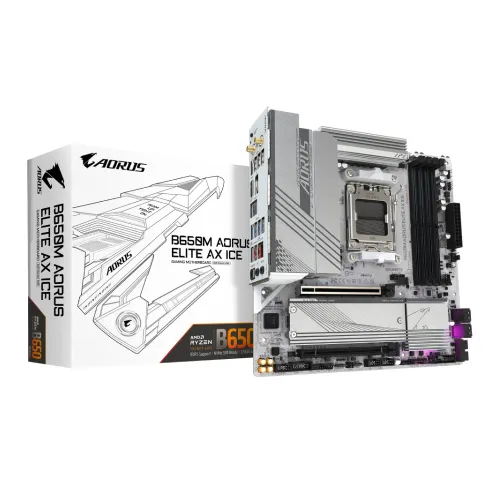

 This itemAsus B850M MAX GAMING WIFI AM5 mATX Motherboard |  GIGABYTEGIGABYTE B650M AORUS ELITE AX ICE DDR5 AMD AM5 mATX Motherboard |  MSIMSI PRO Z790-P WIFI DDR4 ATX Motherboard |  MSIMSI PRO Z790-P WIFI DDR5 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳28,900 | ৳28,800 | ৳28,800 | ৳28,900 |
| Availability | In stock | In stock | In stock | In stock |
| Brand | Asus | GIGABYTE | MSI | MSI |
| M.2 slots | 3 | 2 | 4 | 4 |
| RAM type | Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO); ASUS Enhanced Memory Profile (AEMP) | Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | 4x DDR4, Maximum Memory Capacity 128GB; Max. overclocking frequency:; 1DPC 1R Max speed up to 5333+ MHz; 1DPC 2R Max speed up to 4800+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile (XMP) | 4x DDR5, Maximum Memory Capacity 128GB; Max. overclocking frequency:; 1DPC 1R Max speed up to 7000+ MHz; 1DPC 2R Max speed up to 6600+ MHz; 2DPC 1R Max speed up to 6400+ MHz; 2DPC 2R Max speed up to 5600+ MHz; Supports Intel XMP3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory |
| Form factor | mATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) | Micro ATX Form Factor; 24.4cm x 24.4cm | ATX Form Factor; 243.84mmx304.8mm | ATX Form Factor; 243.84mmx304.8mm |
| Chipset | AMD B850 Chipset | AMD B650 | INTEL Z790 | Intel Z790 Chipset |
