MSI PRO Z790-P WIFI DDR4 ATX Motherboard
Model: PRO Z790-P WIFI DDR4Item #: msi-pro-z790-p-wifi-ddr4-atx-motherboard
৳28,800৳28,900Save 0%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- INTEL Z790 Chipset
- 4 M.2 slots
- 4x DDR4, Maximum Memory Capacity 128GB; Max. overclocking frequency:; 1DPC 1R Max speed up to 5333+ MHz; 1DPC 2R Max speed up to 4800+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile (XMP) RAM type
- ATX Form Factor; 243.84mmx304.8mm
Overview

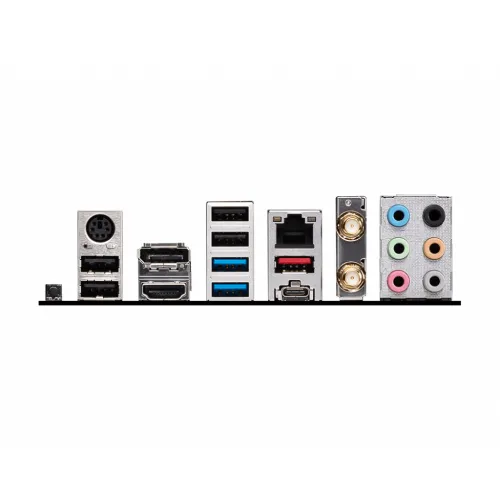

The MSI PRO Z790-P WIFI DDR4 LGA 1700 ATX Motherboard offers sufficient connection and performance. This 14th Gen motherboard, which uses the Intel Z790 chipset and the LGA 1700 socket, has four DDR4 RAM slots that allow dual-channel memory and can be overclocked to 5333 MHz. Six SATA III and four M.2 connections offer storage space and enable RAID 0, 1, 5, and 10. Install GPUs or other adaptor cards through PCIe 5.0 x16, PCIe 4.0 x16, PCIe 3.0 x16, and PCIe 3.0 x1 slots. Take advantage of speedy networking with a 2.5 GbE Intel LAN and Wi-Fi 6E; connect to wireless peripherals in a flash with Bluetooth 5.2. The Realtek ALC897 audio codec offers 7.1 channel surround sound, including rear analog output connectors. Connect connected peripherals through a USB 3.2 Gen 2x2 Type-C connector, two USB 3.2 Gen 1 ports, and four USB 2.0 Type-A connections. There is also a PS/2 port for connecting to older devices. DisplayPort and HDMI are used to output video. A Flash BIOS button is also located on the rear I/O panel, and internal headers support front-panel USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 and 2.0 Type-A ports, RGB connections, chassis intrusion, a TPM module, and other features. The MSI PRO Z790-P WIFI DDR4 ATX Motherboard comes with a 03-year warranty.
Specifications
- Chipset
- INTEL Z790
- M.2 slots
- 4
- RAM type
- 4x DDR4, Maximum Memory Capacity 128GB; Max. overclocking frequency:; 1DPC 1R Max speed up to 5333+ MHz; 1DPC 2R Max speed up to 4800+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile (XMP)
- Form factor
- ATX Form Factor; 243.84mmx304.8mm
- Memory — Type
- DDR4
- Highlights — Model
- PRO Z790-P WIFI DDR4
- Graphics — Graphics
- 1x HDMI; 1x DisplayPort; Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz; Support DP 1.4, the maximum resolution of 4K 60Hz
- Expansion Slots — PCI
- 3x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 PCIe 5.0 supports up to x16 (From CPU); PCI_E2 PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 PCIe 4.0 supports up to x4 (From Chipset); PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)
Show all 22 specificationsShow fewer
- Memory — Maximum Memory
- 128GB
- Connector & Ports — HDMI
- 1x HDMI 2.1
- Basic Information — Audio
- Realtek ALC897 Codec; 7.1-Channel High-Definition Audio
- Connector & Ports — Audio
- 1x Front Audio (JAUD)
- Others — Special Features
- LED FEATURE: 4x EZ Debug LED;
- Connector & Ports — USB (s)
- 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 3.2 Gen1 Type A (Rear); 4x USB 3.2 Gen1 Type A (Front); 1x USB 3.2 Gen2 Type A (Rear); 1x USB 3.2 Gen2 Type C (Front); 1x USB 3.2 Gen2x2 Type C (Rear)
- Connector & Ports — LAN Port (s)
- Intel 2.5Gbps LAN
- Basic Information — Supported CPU
- Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors; LGA 1700
- Connector & Ports — Display Port (s)
- 1x DisplayPort 1.4
- Connector & Ports — Supported Storage
- 4x M.2 slot; M.2_1 (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices; M.2_2 (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices; M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 6x SATA 6G port
- Connector & Ports — Internal I/O Ports
- 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 6x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x TBT connector (JTBT, supports RTD3); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 4x USB 2.0; 4x USB 3.2 Gen1 Type A; 1x USB 3.2 Gen2 Type C
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — Wireless Communication module
- Intel Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.2, FIPS, FISMA
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM pin header(Support TPM 2.0)
Compare with similar products
 This itemMSI PRO Z790-P WIFI DDR4 ATX Motherboard |  GIGABYTEGIGABYTE B650M AORUS ELITE AX ICE DDR5 AMD AM5 mATX Motherboard |  MSIMSI PRO Z790-P WIFI DDR5 ATX Motherboard |  AsusAsus B850M MAX GAMING WIFI AM5 mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳28,800 | ৳28,800 | ৳28,900 | ৳28,900 |
| Availability | In stock | In stock | In stock | In stock |
| Brand | MSI | GIGABYTE | MSI | Asus |
| M.2 slots | 4 | 2 | 4 | 3 |
| RAM type | 4x DDR4, Maximum Memory Capacity 128GB; Max. overclocking frequency:; 1DPC 1R Max speed up to 5333+ MHz; 1DPC 2R Max speed up to 4800+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile (XMP) | Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | 4x DDR5, Maximum Memory Capacity 128GB; Max. overclocking frequency:; 1DPC 1R Max speed up to 7000+ MHz; 1DPC 2R Max speed up to 6600+ MHz; 2DPC 1R Max speed up to 6400+ MHz; 2DPC 2R Max speed up to 5600+ MHz; Supports Intel XMP3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory | Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO); ASUS Enhanced Memory Profile (AEMP) |
| Form factor | ATX Form Factor; 243.84mmx304.8mm | Micro ATX Form Factor; 24.4cm x 24.4cm | ATX Form Factor; 243.84mmx304.8mm | mATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| Chipset | INTEL Z790 | AMD B650 | Intel Z790 Chipset | AMD B850 Chipset |
