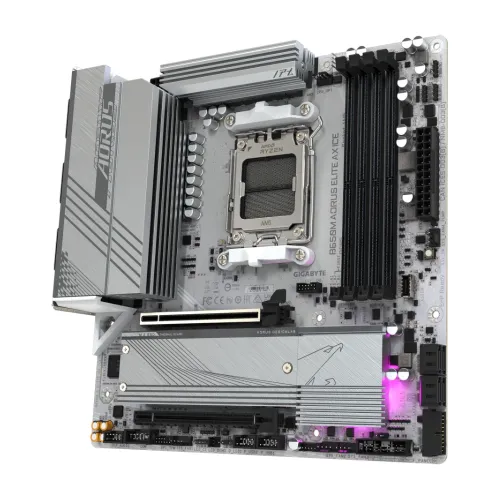

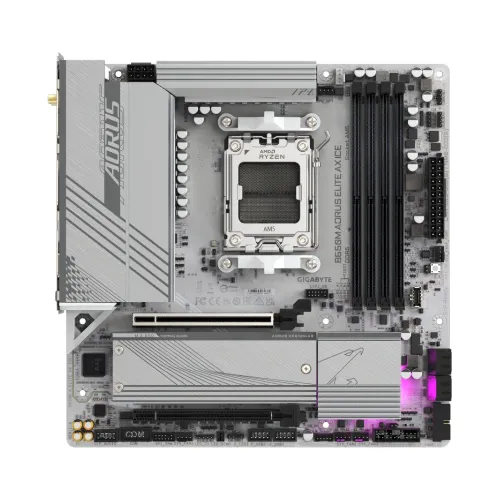

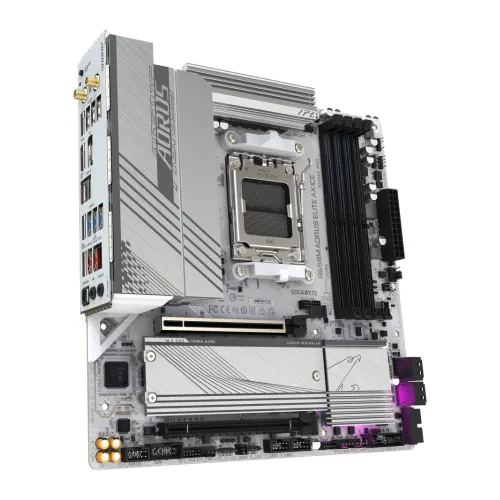

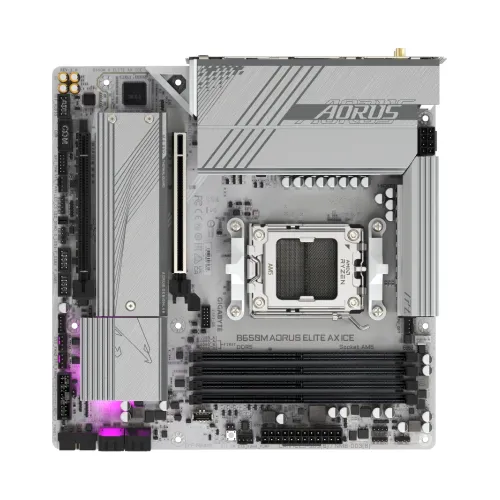

GIGABYTE B650M AORUS ELITE AX ICE DDR5 AMD AM5 mATX Motherboard

Name: GIGABYTE B650M AORUS ELITE AX ICE DDR5 AMD AM5 mATX Motherboard
Brand: GIGABYTE
Price: 28800 BDT
Availability: InStock

Model: B650M AORUS ELITE AX ICEItem #: gigabyte-b650m-aorus-elite-ax-ice-motherboard

৳28,800~~৳30,270~~Save 5%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD B650 Chipset
2 M.2 slots
Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules RAM type
Micro ATX Form Factor; 24.4cm x 24.4cm

Overview

The GIGABYTE B650M AORUS ELITE AX ICE DDR5 AMD AM5 mATX Motherboard is a premium platform built for gamers and creators who demand speed, stability, and advanced features. Powered by the AMD B650 chipset, this GIGABYTE B650M AORUS ELITE AX ICE DDR5 Motherboard supports AMD Ryzen 7000, 8000, and 9000 Series processors on the AM5 socket. With DDR5 memory support, PCIe 5.0 storage, and Wi-Fi 6E, this Gigabyte B650M White Motherboard delivers next-generation performance in a stylish micro ATX design.

Memory, Graphics, and Expansion

The GIGABYTE B650M AORUS ELITE AX ICE micro atx Motherboard supports up to 256GB DDR5 memory with speeds reaching 8000+ MT/s (OC), offering extreme bandwidth for multitasking and gaming. Integrated AMD Radeon graphics provide 4K resolution via DisplayPort 1.4 at 144Hz and HDMI 2.1 at 60Hz. Expansion options include PCIe 4.0 x16 and PCIe 4.0 x4 slots, ensuring compatibility with modern GPUs and add-in cards. This GIGABYTE B650M AORUS ELITE AX ICE DDR5 Motherboard is engineered for performance-driven builds with advanced overclocking support.

Connectivity and Features

Networking is powered by Realtek 2.5GbE LAN and Wi-Fi 6E with Bluetooth 5.3, ensuring ultra-fast connections. Storage options include dual M.2 slots supporting PCIe 5.0 and PCIe 4.0 NVMe SSDs, plus four SATA 6Gb/s connectors with RAID support. USB connectivity is extensive, featuring USB 3.2 Gen 2x2 Type-C, multiple USB 3.2 Gen 2 and Gen 1 ports, and legacy USB 2.0 support. Enhanced with Realtek HD Audio, RGB headers, EZ Debug LEDs, and TPM 2.0 support, the Gigabyte B650M White Motherboard combines speed, security, and customization for modern gaming and productivity setups.

Specifications

Chipset: AMD B650
M.2 slots: 2
RAM type: Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Form factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4 x DDR5 DIMM
Highlights — Model: B650M AORUS ELITE AX ICE
Graphics — Graphics: Integrated Graphics Processor with AMD Radeon™ Graphics support:; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version and HDR.; ; ; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support for native HDMI 2.1 TMDS compatible ports.

Show all 29 specifications

Expansion Slots — PCI: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode; AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; ; Chipset:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Highlights — Features: Realtek 2.5GbE LAN & AMD Wi-Fi 6E, Bluetooth 5.3
Memory — Maximum Memory: 256GB
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
Connector & Ports — Audio: Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Q-Flash Plus
Highlights — Supported RAM: 4x DDR5, up to 256GB, 8000MT/s (OC)
Connector & Ports — USB (s): CPU:; - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support; - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel; CPU + USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports on the back panel; Chipset:; - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header; - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header); - 4 x USB 2.0/1.1 ports available through the internal USB headers; Chipset+USB 3.2 Gen 1 Hub:; - 4 x USB 3.2 Gen 1 ports on the back panel
Highlights — Graphics Output: 1x Display Port, 1 x HDMI
Connector & Ports — LAN Port (s): Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Basic Information — Supported CPU: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Connector & Ports — Display Port (s): 1 x DisplayPorts
Connector & Ports — Supported Storage: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:; AMD Ryzen 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs; AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; ; 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:; AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs; ; 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices

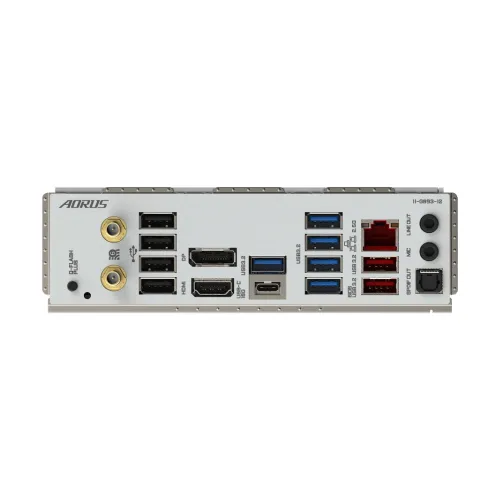

Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 3 x system fan headers; 1 x system fan/water cooling pump header; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 1 x CPU cooler LED strip/RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x serial port header; 1 x THB_U4 add-in card connector; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only); 1 x reset button; 1 x reset jumper; 1 x Clear CMOS jumper; Back Panel Connectors; 1 x Q-Flash Plus button; 2 x SMA antenna connectors (2T2R)jk; 1 x DisplayPort; 1 x HDMI port; 1 x USB Type-C® port, with USB 3.2 Gen 2 support; 2 x USB 3.2 Gen 2 Type-A ports (red); 5 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 1 x optical S/PDIF Out connector; 2 x audio jacks
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0); - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless standard; ; Intel® Wi-Fi 6E AX210 (PCB rev. 1.1); - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless standard
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)

Compare with similar products

	This itemGIGABYTE B650M AORUS ELITE AX ICE DDR5 AMD AM5 mATX Motherboard	MSIMSI PRO Z790-P WIFI DDR4 ATX Motherboard	MSIMSI PRO Z790-P WIFI DDR5 ATX Motherboard	AsusAsus B850M MAX GAMING WIFI AM5 mATX Motherboard
Price	৳28,800	৳28,800	৳28,900	৳28,900
Availability	In stock	In stock	In stock	In stock
Brand	GIGABYTE	MSI	MSI	Asus
M.2 slots	2	4	4	3
RAM type	Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules	4x DDR4, Maximum Memory Capacity 128GB; Max. overclocking frequency:; 1DPC 1R Max speed up to 5333+ MHz; 1DPC 2R Max speed up to 4800+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile (XMP)	4x DDR5, Maximum Memory Capacity 128GB; Max. overclocking frequency:; 1DPC 1R Max speed up to 7000+ MHz; 1DPC 2R Max speed up to 6600+ MHz; 2DPC 1R Max speed up to 6400+ MHz; 2DPC 2R Max speed up to 5600+ MHz; Supports Intel XMP3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory	Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO); ASUS Enhanced Memory Profile (AEMP)
Form factor	Micro ATX Form Factor; 24.4cm x 24.4cm	ATX Form Factor; 243.84mmx304.8mm	ATX Form Factor; 243.84mmx304.8mm	mATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Chipset	AMD B650	INTEL Z790	Intel Z790 Chipset	AMD B850 Chipset
