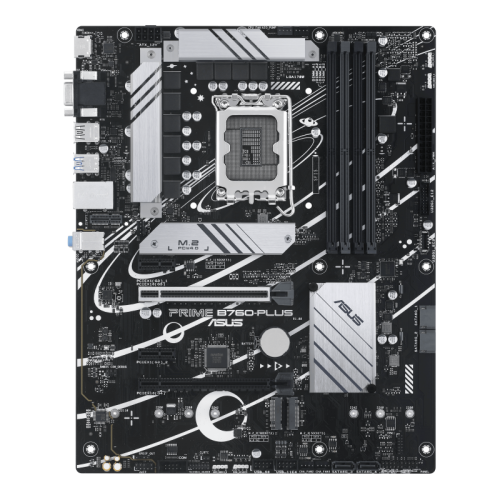

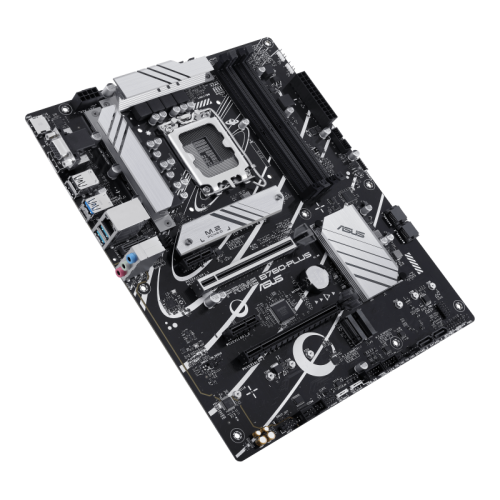

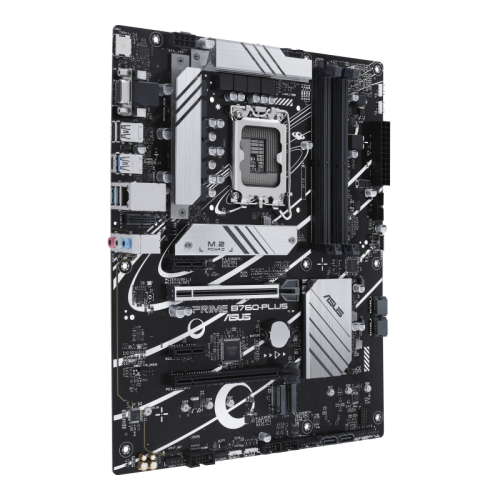

ASUS PRIME B760-PLUS ATX Motherboard

Name: ASUS PRIME B760-PLUS ATX Motherboard
Brand: Asus
Price: 21900 BDT
Availability: InStock

Model: PRIME B760-PLUSItem #: asus-prime-b760-plus-motherboard

৳21,900~~৳23,000~~Save 5%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Chipset
DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem RAM type
ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Overview

ASUS PRIME B760-PLUS Motherboard supports 14th 13th/ 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket. It comes with four dual-channel RAM slots, and three M.2 slots allowing you to take advantage of the full power of 13th & 12th generation Intel processors. The four SATA III ports allow users to create large storage drive arrays for large file libraries. Two PCIe x16 and one PCIe x1 slot allow you to install high-end graphics cards and other expansion cards. USB 2.0 ports are also available for lower-powered devices such as mice and keyboards.

Enhanced Power Design

This 14th Gen Motherboard is designed for gamers and enthusiasts, with a 12+1+1 dual rail power system and 8+8 pin power connectors to support the Core Boost technology, which boosts the performance of your multi-core Intel processor. The Digital Power Design, Overvoltage Protection, Load-Line Calibration, Double Power Connectors, and Supplemental PCIe Power Connectors on the motherboard all work together to provide proper electrical management through your system to stabilize your system, especially under high loads.

Premium Thermal Solution

The ASUS PRIME B760-PLUS Motherboard features Extended Heatsink Design and M.2 Shield Frozr and is designed for high-performance systems and continuous operation. This motherboard's increased cooling capabilities will keep your components working at optimal temperatures. M.2 Shield Frozr, Fully Fan Control, Frozr AI Cooling, and System Cooling all work together to keep your components cool even while under high loads when gaming or generating content.

High-Quality PCB for Enhanced Protection

The ASUS PRIME B760-PLUS features a PCB optimized for higher bandwidth and faster transfer speeds, as well as reliable circuit transmission with 2oz thickened copper that allows the motherboard to easily withstand overclocking while improving heat dissipation and system reliability. The grounding layer around the mounting holes is doubled for double ESD protection, preventing static discharge spikes from damaging the motherboard.

Specifications

Chipset: Intel B760 Chipset
RAM type: DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem
Form factor: ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: PRIME B760-PLUS
Graphics — Graphics: 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4.); 1 x VGA port; 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.)
Expansion Slots — PCI: Intel 13th & 12th Gen Processors; 1 x PCIe 5.0 x16 slot; Intel B760 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 2 x PCIe 3.0 x1 slots

Show all 29 specifications

Highlights — Features: 3x M.2 slot, Realtek 2.5Gb Ethernet
Memory — Maximum Memory: 192GB
Basic Information — BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Basic Information — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers
Connector & Ports — Audio: 3 x Audio jacks
Others — Bundled Software: ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert 2+; - Power Saving; AI Suite 3; - DIGI+ VRM; - PC Cleaner; ASUS CPU-Z; Norton 360 Deluxe (60 Days Free Trial); WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
Others — Special Features: ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage Protection; - SafeSlot Core+; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - ProCool; Aura Sync; - Aura RGB header; - Addressable Gen 2 headers
Highlights — Supported RAM: 4 x DIMM, Max. 192GB, DDR5 7200+(OC)

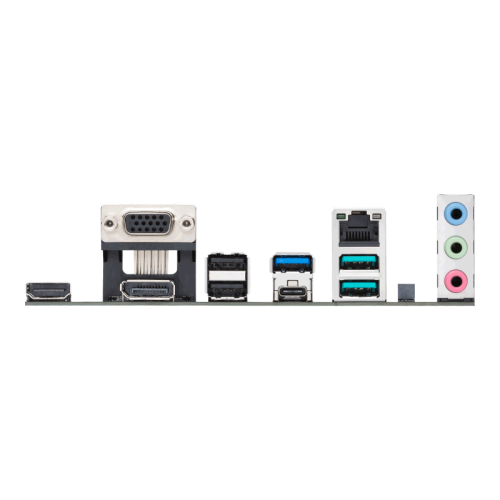

Connector & Ports — USB (s): Rear USB (Total 6 ports); 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 2 x USB 3.2 Gen 2 ports (2 x Type-A); 1 x USB 3.2 Gen 1 port (1 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 7 ports); 1 x USB 3.2 Gen 1 connector (supports USB Type-C); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Connector & Ports — VGA (s): 1 x VGA port
Highlights — Graphics Output: 1x DisplayPort, 1x VGA port, 1x HDMI
Connector & Ports — LAN Port (s): 1 x Realtek 2.5Gb Ethernet
Basic Information — Supported CPU: Intel Socket LGA1700 for 14th, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron; Processors; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Connector & Ports — Display Port (s): 1x DisplayPort
Connector & Ports — Supported Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; Intel 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode); 4 x SATA 6Gb/s ports
Connector & Ports — Internal I/O Ports: Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 connector (supports USB Type-C); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt (USB4) header
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — Wireless Communication module: Vertical M.2 slot only (Key E, CNVi & PCIe)*; * Wi-Fi module is sold separately.
Connector & Ports — TPM (Trusted Platform Module ): 1 x SPI TPM header (14-1pin)

Compare with similar products

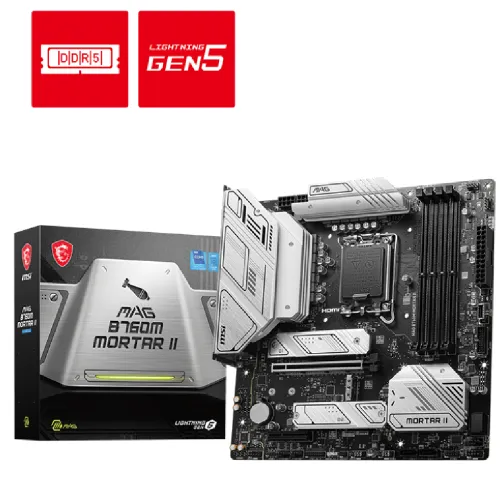

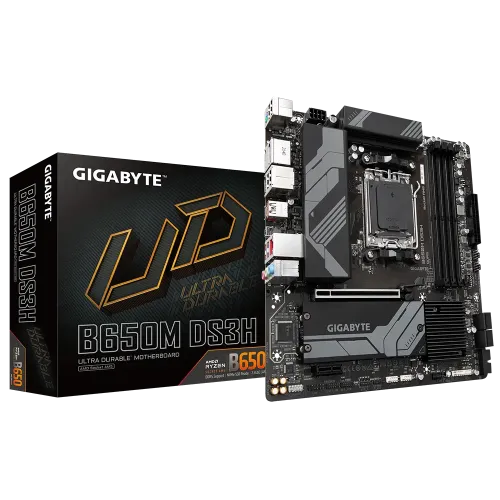

	This itemASUS PRIME B760-PLUS ATX Motherboard	MSIMSI PRO B650-P WIFI DDR5 AMD AM5 ATX Motherboard	MSIMSI MAG B760M MORTAR II DDR5 mATX Motherboard	GIGABYTEGIGABYTE B650M DS3H DDR5 AMD AM5 Micro-ATX Motherboard
