MSI MAG B760M MORTAR II DDR5 mATX Motherboard
Model: MAG B760M MORTAR IIItem #: msi-mag-b760m-mortar-ii-motherboard
৳21,800
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- INTEL B760 Chipset
- 3 M.2 slots
- Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7800+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile RAM type
- mATX; 243.84mmx243.84mm Form factor
Overview
MSI MAG Z790 TOMAHAWK MAX WIFI ATX Motherboard

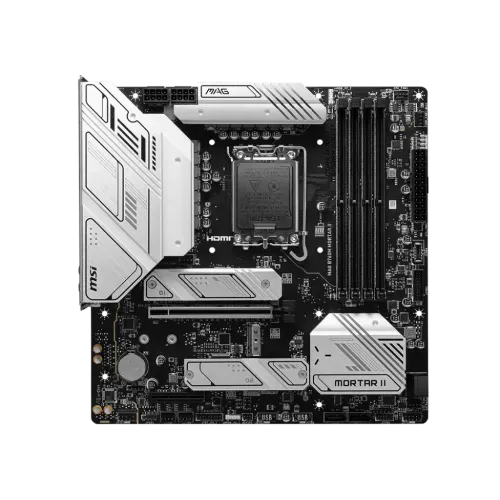

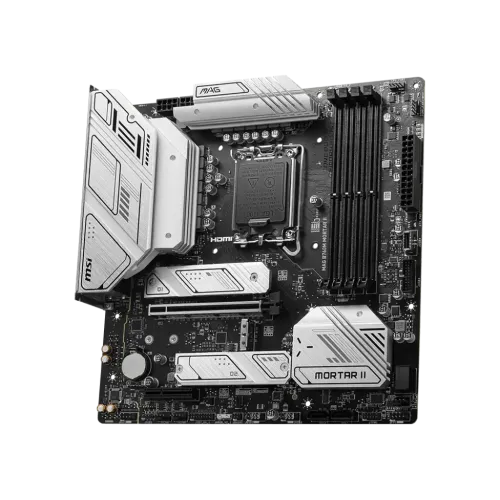

The MSI MAG B760M MORTAR II DDR5 mATX Motherboard is a high-performance motherboard that supports a broad range of Intel processors, including 14th, 13th, and 12th generation Intel CPUs, as well as Intel Pentium Gold and Celeron processors, which are all LGA 1700 compatible. Notable features include DDR5 memory compatibility, which can be overclocked to rates of up to 7800+ MHz, allowing it to perform demanding workloads and games. The motherboard also has an upgraded power architecture, which includes a 12+1+1 Duet Rail Power System, twin 8-pin CPU power connections, Core Boost, and Memory Boost, which ensures reliable and efficient power supply to the CPU and memory modules for greater system performance. A PCIe 5.0 slot, Lightning Gen 4 x4 M.2 slot, and USB 3.2 Gen 2 x2 connections provide a lightning-fast gaming experience with high-speed data transmission and gaming performance. It has an Extended Heatsink Design with an M.2 Shield Frozr to keep temperatures low during heavy use. The MSI MAG B760M MORTAR II Motherboard also contains Audio Boost for studio-level sound quality, as well as a high-quality PCB with 6 layers of 2oz thicker copper and server-grade components, which improves longevity and system stability. Overall, this motherboard is a great option for gamers, content makers, and PC aficionados looking for top-tier performance and features.
Buy MSI MAG B760M MORTAR II DDR5 mATX Motherboard Shop in BD
Specifications
- Chipset
- INTEL B760
- M.2 slots
- 3
- RAM type
- Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7800+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile
- Form factor
- mATX; 243.84mmx243.84mm
- Memory — Type
- DDR5
- Memory — Slots
- 4 x DIMM
- Highlights — Model
- MAG B760M MORTAR II
- Graphics — Graphics
- 1x HDMI; Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 8K 60Hz*
Show all 25 specificationsShow fewer
- Expansion Slots — PCI
- 1x PCI-E x16 slot; Supports x16/x4; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
- Highlights — Features
- Realtek 2.5Gbps LAN
- Memory — Maximum Memory
- 192GB
- Connector & Ports — HDMI
- 1x HDMI 2.1
- Connector & Ports — RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Basic Information — Audio
- Realtek ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output
- Others — Special Features
- LED FEATURE: 4x EZ Debug LED
- Highlights — Supported RAM
- 4x DDR5, 7800+MHz (OC), Max 192GB
- Connector & Ports — USB (s)

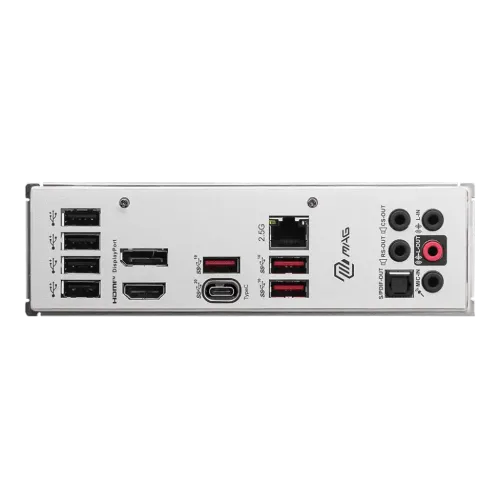

- 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 3.2 Gen1 Type A (Front); 3x USB 3.2 Gen2 Type A (Rear); 1x USB 3.2 Gen2 Type C (Front); 1x USB 3.2 Gen2x2 Type C (Rear)
- Highlights — Graphics Output
- 1x HDMI, 1x DisplayPort
- Connector & Ports — LAN Port (s)
- Realtek 2.5Gbps LAN
- Basic Information — Supported CPU
- Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA 1700
- Connector & Ports — Display Port (s)
- 1x DisplayPort 1.4
- Connector & Ports — Supported Storage
- 3x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices; 4x SATA 6G
- Connector & Ports — Internal I/O Ports
- 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 4x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 4x USB 2.0 ports; 2x USB 3.2 Gen1 Type A ports; 1x USB 3.2 Gen2 Type C ports; 1x USB4 card connector (JTBT_U4_1, supports RTD3)
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM pin header(Support TPM 2.0)
Compare with similar products
 This itemMSI MAG B760M MORTAR II DDR5 mATX Motherboard |  MSIMSI PRO B650-P WIFI DDR5 AMD AM5 ATX Motherboard |  AsusASUS PRIME B760-PLUS ATX Motherboard |  GIGABYTEGIGABYTE B650M DS3H DDR5 AMD AM5 Micro-ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳21,800 | ৳21,500 | ৳21,900 | ৳22,000 |
| Availability | Out of stock | Out of stock | In stock | Out of stock |
| Brand | MSI | MSI | Asus | GIGABYTE |
| M.2 slots | 3 | — | — | — |
| RAM type | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7800+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6400+ MHz; • 1DPC 2R Max speed up to 5800+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 4000+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO | DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Form factor | mATX; 243.84mmx243.84mm | ATX; 243.84mmx304.8mm | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Chipset | INTEL B760 | AMD B650 | Intel B760 Chipset | AMD B650 |
