ASUS PRIME H510M-K R2.0-SI Micro-ATX Motherboard (BULK)

Name: ASUS PRIME H510M-K R2.0-SI Micro-ATX Motherboard (BULK)
Brand: Asus
Price: 9900 BDT
Availability: OutOfStock

Model: PRIME H510M-K R2.0Item #: asus-prime-h510m-k-r2-0-si-motherboard-bulk

৳9,900

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel H470 Chipset
1 M.2 slots
DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP) RAM type
micro-ATX Form Factor; 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )

Overview

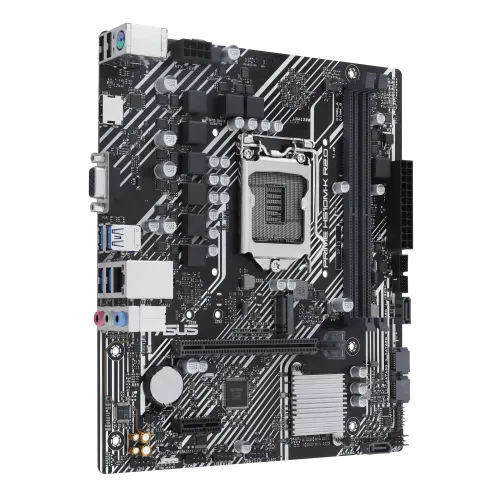

The ASUS PRIME H510M-K R2.0 is a versatile micro-ATX motherboard designed for compatibility with both 10th and 11th Gen Intel processors through its LGA 1200 socket. Featuring an Intel H510 chipset, this motherboard supports ultrafast connectivity with PCIe 4.0, a 32Gbps M.2 slot for rapid storage, 1 Gb Ethernet for reliable networking, and USB 3.2 Gen 1 Type-A ports for quick data transfer. For cooling, it includes a PCH heatsink and FAN Xpert technology to ensure optimal thermal management. Additionally, the motherboard offers 5X Protection III, a suite of hardware safeguards that provides overvoltage, short-circuit, and other protective features for enhanced durability and stability. This combination of features makes the ASUS PRIME H510M-K R2.0 a reliable and efficient choice for building a high-performance computing system.

Specifications

Chipset: Intel H470 Chipset
M.2 slots: 1
RAM type: DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP)
Form factor: micro-ATX Form Factor; 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )
Memory — Type: DDR4
Memory — Slots: 2 x DIMM
Highlights — Model: PRIME H510M-K R2.0
Graphics — Graphics: Only Intel 11th Gen processors support HDMI 2.1 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

Show all 25 specifications

Expansion Slots — PCI: Intel 11th & 10th Gen Processors; 1 x PCIe 4.0/3.0 x16 slot; - Intel 11th Gen processors support PCIe 4.0 x16; - Intel 10th Gen processors support PCIe 3.0 x16; Intel H470 Chipset; 1 x PCIe 3.0 x1 slot
Highlights — Features: 1 x Realtek 1Gb Ethernet
Memory — Maximum Memory: Max. 64GB
Basic Information — BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Connector & Ports — HDMI: 1x HDMI 1.4
Connector & Ports — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers
Others — Special Features: ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage Protection; - SafeSlot Core; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - Aluminum heatsink design; ASUS Lighting Control; - RGB header
Highlights — Supported RAM: 2x DDR4, Max 64GB 3200(O.C.)

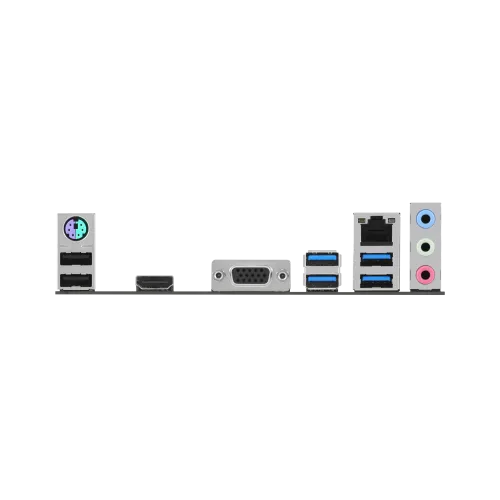

Connector & Ports — USB (s): Rear USB (Total 6 ports); 4 x USB 3.2 Gen 1 ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 6 ports); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Connector & Ports — VGA (s): 1x VGA port
Highlights — Graphics Output: 1x HDMI port, 1x VGA port
Connector & Ports — LAN Port (s): 1 x Realtek 1Gb Ethernet port
Basic Information — Supported CPU: Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel 14 nm CPU; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Connector & Ports — Supported Storage: Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports; Intel H470 Chipset; M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes); 4 x SATA 6Gb/s ports
Connector & Ports — Internal I/O Ports: Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 1 x RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x 10-1 pin System Panel header
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — TPM (Trusted Platform Module ): 1 x SPI TPM header (14-1pin)

Compare with similar products

	This itemASUS PRIME H510M-K R2.0-SI Micro-ATX Motherboard (BULK)	GIGABYTEGigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard	MSIMSI PRO H610M-E DDR4 mATX Motherboard	GIGABYTEGIGABYTE H510M K Intel Micro ATX Motherboard
Price	৳9,900	৳9,800	৳9,900	৳9,900
Availability	Out of stock	In stock	In stock	Out of stock
Brand	Asus	GIGABYTE	MSI	GIGABYTE
M.2 slots	1	1	—	—
RAM type	DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP)	DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules	Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR); Supports Dual-Channel mode; Supports non-ECC, un-buffered memory	1th Generation Intel Core i9/i7/i5 processors:; Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 10th Generation Intel Core i9/i7 processors:; Support for DDR4 2933/2666/2400/2133 MT/s memory modules; 10th Generation Intel Core i5/i3/Pentium®/Celeron processors:; Support for DDR4 2666/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor	micro-ATX Form Factor; 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )	Micro ATX Form Factor; 24.4cm x 24.4cm	mATX; 9.3 in. x 7.9 in. (23.6 cm x 20 cm)	Micro ATX Form Factor; 22.6cm x 18.5cm;
Chipset	Intel H470 Chipset	AMD A520	Intel H610 Chipset	Intel B560 Express Chipset
