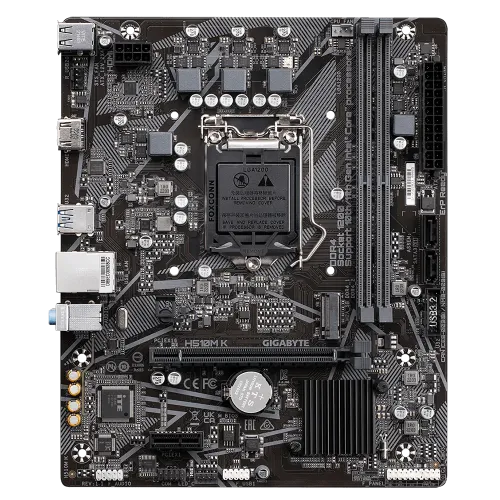

GIGABYTE H510M K Intel Micro ATX Motherboard
Model: H510M KItem #: gigabyte-h510m-k-motherboard
৳9,900
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel B560 Express Chipset
- 1th Generation Intel Core i9/i7/i5 processors:; Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 10th Generation Intel Core i9/i7 processors:; Support for DDR4 2933/2666/2400/2133 MT/s memory modules; 10th Generation Intel Core i5/i3/Pentium®/Celeron processors:; Support for DDR4 2666/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
- Micro ATX Form Factor; 22.6cm x 18.5cm;
Overview
The GIGABYTE H510M K Intel Micro ATX Motherboard is a reliable and efficient choice for building a compact and versatile desktop system. Designed to support 11th and 10th Gen Intel Core Processors with an LGA1200 socket, this motherboard offers compatibility with a wide range of CPUs. It supports DDR4 memory with two DIMM slots, allowing for a maximum capacity of up to 64 GB. For graphics output, it features an HDMI port, providing a convenient connection for displays. Equipped with a Realtek GbE LAN chip, the GIGABYTE H510M K offers network speeds of up to 1 Gbps, ensuring fast and stable internet connectivity. The motherboard also delivers high-quality audio through its 8-channel HD Audio with high-quality capacitors, making it suitable for immersive sound experiences. It includes an NVMe PCIe Gen3 x4 2280 M.2 connector, allowing for high-speed storage solutions. The Smart Fan 5 technology with multiple temperature sensors and hybrid fan headers, including a FAN STOP feature, ensures efficient cooling and quiet operation. The GIGABYTE APP Center provides an easy-to-use interface for managing various system utilities, enhancing the user experience. Additionally, the anti-sulfur resistor design helps protect against sulfur corrosion, ensuring durability and longevity. Overall, the GIGABYTE H510M K is a solid foundation for a variety of builds, catering to gaming, productivity, and general use.
Buy GIGABYTE H510M K Intel Micro ATX Motherboard from the best Motherboard Shop in BD
Specifications
- Chipset
- Intel B560 Express Chipset
- RAM type
- 1th Generation Intel Core i9/i7/i5 processors:; Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 10th Generation Intel Core i9/i7 processors:; Support for DDR4 2933/2666/2400/2133 MT/s memory modules; 10th Generation Intel Core i5/i3/Pentium®/Celeron processors:; Support for DDR4 2666/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
- Form factor
- Micro ATX Form Factor; 22.6cm x 18.5cm;
- Memory — Type
- DDR4
- Memory — Slots
- 2 x DIMM
- Highlights — Model
- H510M K
- Graphics — Graphics
- Integrated Graphics Processor-Intel HD Graphics support; 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz; * Support for HDMI 1.4 version and HDCP 2.3.
- Expansion Slots — PCI
- CPU:; 1 x PCI Express x16 slot:; Supporting PCIe 4.0 and running at x16; (PCIe 4.0 is only supported by 11th-generation processors.); ; Chipset:; 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Show all 23 specificationsShow fewer
- Highlights — Features
- Realtek GbE LAN chip (1 Gbps/100 Mbps)
- Memory — Maximum Memory
- 64GB (32 GB single DIMM capacity)
- Basic Information — BIOS
- 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Connector & Ports — HDMI
- 1 x HDMI port
- Basic Information — Audio
- Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
- Others — Bundled Software
- Norton Internet Security (OEM version); LAN bandwidth management software
- Others — Special Features
- Support for APP Center; * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; @BIOS; Ambient LED; EasyTune; Smart Backup; System Information Viewer; Support for Q-Flash; Support for Xpress Install
- Highlights — Supported RAM
- DDR4, 2 DIMMs, up to 64 GB
- Connector & Ports — USB (s)
- Chipset:; 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header); 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- Highlights — Graphics Output
- 1 x HDMI
- Connector & Ports — LAN Port (s)
- Realtek GbE LAN chip (1 Gbps/100 Mbps)
- Basic Information — Supported CPU
- 11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors; 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors; L3 cache varies with CPU
- Connector & Ports — Supported Storage
- Chipset:; 1 x M.2 connector:; Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD; 2 x SATA 6Gb/s connectors
- Connector & Ports — Internal I/O Ports

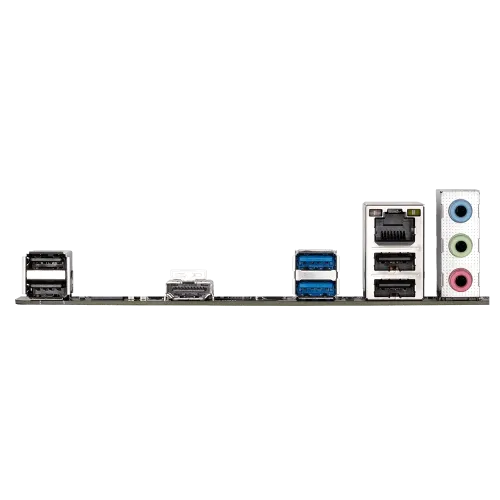

- Internal I/O Connectors; 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x system fan header; 1 x RGB LED strip header; 1 x M.2 Socket 3 connector; 2 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x serial port header; 1 x Clear CMOS jumper; ; Back Panel Connectors; 1 x HDMI port; 2 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
- Warranty Information — Manufacturing Warranty
- 03 Years Warranty
Compare with similar products
 This itemGIGABYTE H510M K Intel Micro ATX Motherboard |  GIGABYTEGigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard |  MSIMSI PRO H610M-E DDR4 mATX Motherboard |  AsusASUS PRIME H510M-K R2.0-SI Micro-ATX Motherboard (BULK) | |
|---|---|---|---|---|
| Price | ৳9,900 | ৳9,800 | ৳9,900 | ৳9,900 |
| Availability | Out of stock | In stock | In stock | Out of stock |
| Brand | GIGABYTE | GIGABYTE | MSI | Asus |
| RAM type | 1th Generation Intel Core i9/i7/i5 processors:; Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 10th Generation Intel Core i9/i7 processors:; Support for DDR4 2933/2666/2400/2133 MT/s memory modules; 10th Generation Intel Core i5/i3/Pentium®/Celeron processors:; Support for DDR4 2666/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR); Supports Dual-Channel mode; Supports non-ECC, un-buffered memory | DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP) |
| Form factor | Micro ATX Form Factor; 22.6cm x 18.5cm; | Micro ATX Form Factor; 24.4cm x 24.4cm | mATX; 9.3 in. x 7.9 in. (23.6 cm x 20 cm) | micro-ATX Form Factor; 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm ) |
| Chipset | Intel B560 Express Chipset | AMD A520 | Intel H610 Chipset | Intel H470 Chipset |
| M.2 slots | — | 1 | — | 1 |
