MSI PRO H610M-E DDR4 mATX Motherboard
Model: PRO H610M-E DDR4Item #: msi-pro-h610m-e-ddr4-motherboard
৳9,900৳10,000Save 1%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel H610 Chipset
- Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR); Supports Dual-Channel mode; Supports non-ECC, un-buffered memory RAM type
- mATX; 9.3 in. x 7.9 in. (23.6 cm x 20 cm) Form factor
Overview

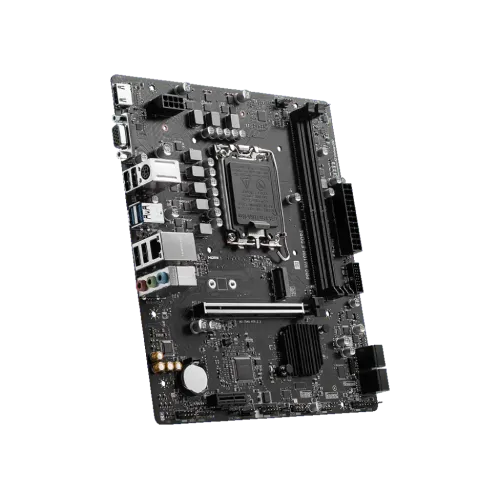

The MSI PRO H610M-E DDR4 12th Gen, 13th Gen & 14th Gen mATX Motherboard is a high-performance motherboard for the LGA 1700 socket that supports 12th/13th Gen Intel Core, Pentium Gold, and Celeron CPUs. This motherboard includes DDR4 memory compatibility, which can run at up to 3200(MAX) MHz. It also has Core Boost technology, a premium layout, and a digital power architecture, which improves performance and enables additional cores. Memory Boost technology, which produces pure data signals, ensures the highest performance, stability, and compatibility with the MSI PRO H610M-E DDR4 12th Gen & 13th Gen mATX Motherboard. It has PCIe 4.0, which allows for extremely rapid data transfers. Audio Boost technology provides studio-level sound quality to your ears, making it a perfect motherboard for gamers and music aficionados. The MSI PRO H610M-E DDR4 12th Gen & 13th Gen mATX Motherboard also has Steel Armor, which protects VGA cards from bending and EMI while improving performance, stability, and robustness. This motherboard is a good choice for individuals looking for a high-performance motherboard that can handle demanding programs and games, thanks to its sophisticated features and superb design.
Buy MSI PRO H610M-E DDR4 mATX Motherboard best Motherboard Shop in BD
Specifications
- Chipset
- Intel H610 Chipset
- RAM type
- Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR); Supports Dual-Channel mode; Supports non-ECC, un-buffered memory
- Form factor
- mATX; 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
- Memory — Type
- DDR4
- Memory — Slots
- 2
- Highlights — Model
- PRO H610M-E DDR4
- Graphics — Graphics
- supporting a maximum resolution of 4K 30Hz; supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz ; Available only on processors featuring integrated graphics.; Graphics specifications may vary depending on the CPU installed.
- Expansion Slots — PCI
- 1x PCIe x16 slot (From CPU); Supports up to PCIe 4.0 x16; 1x PCIe x1 slot (From H610 chipset); Supports PCIe 3.0 x1
Show all 24 specificationsShow fewer
- Highlights — Features
- 1x M.2 slot, Realtek RTL8111H Gigabit LAN
- Memory — Maximum Memory
- 64GB
- Connector & Ports — HDMI
- 1x HDMI 1.4 with HDR port
- Basic Information — Audio
- Realtek ALC897 Codec; 7.1-Channel High-Definition Audio
- Connector & Ports — Audio
- 1x Front panel audio connector
- Others — Special Features
- 1x 4-pin RGB LED connector; 4x EZ Debug LED
- Highlights — Supported RAM
- 2x DDR4, Max 64GB
- Connector & Ports — USB (s)
- 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset); Supports additional 2 USB 3.2 Gen 1 5Gbps ports; 2x USB 2.0 Type-A connectors (From Hub-GL850G); Supports additional 4 USB 2.0 ports
- Connector & Ports — VGA (s)
- 1x VGA
- Highlights — Graphics Output
- 1x HDMI, 1x VGA
- Connector & Ports — LAN Port (s)
- 1x Realtek RTL8111H 1Gbps LAN controller
- Basic Information — Supported CPU
- Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors; LGA 1700
- Connector & Ports — Supported Storage
- 1x M.2 slot (Key M) (from CPU); Supports up to PCIe 3.0 x4; Supports 2242/ 2260/ 2280 storage devices
- Connector & Ports — Internal I/O Ports
- 1x 24-pin ATX main power connector; 1x 8-pin +12V power connector; 1x 4-pin CPU fan connector; 2x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x Serial port connector; 1x Clear CMOS jumper
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM module connector;
Compare with similar products

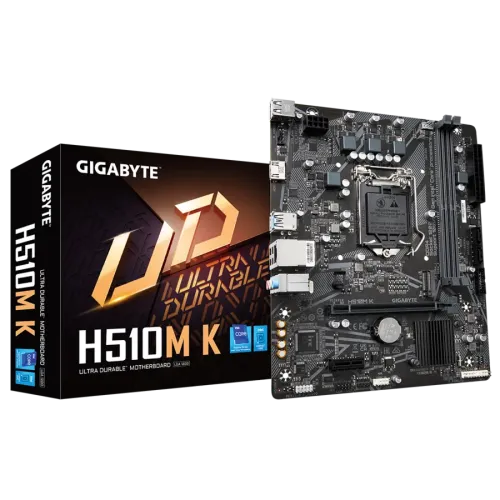

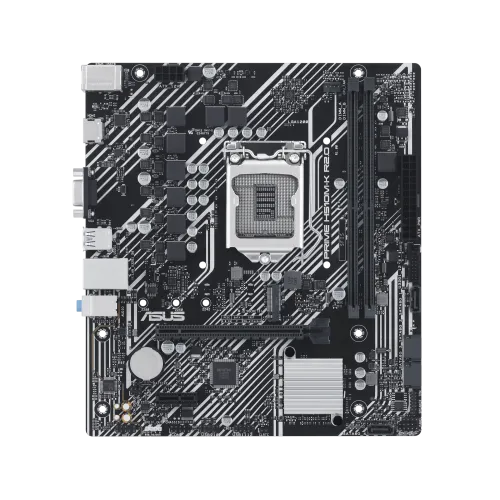

 This itemMSI PRO H610M-E DDR4 mATX Motherboard |  GIGABYTEGigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard |  AsusASUS PRIME H510M-K R2.0-SI Micro-ATX Motherboard (BULK) |  GIGABYTEGIGABYTE H510M K Intel Micro ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳9,900 | ৳9,800 | ৳9,900 | ৳9,900 |
| Availability | In stock | In stock | Out of stock | Out of stock |
| Brand | MSI | GIGABYTE | Asus | GIGABYTE |
| RAM type | Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR); Supports Dual-Channel mode; Supports non-ECC, un-buffered memory | DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP) | 1th Generation Intel Core i9/i7/i5 processors:; Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 10th Generation Intel Core i9/i7 processors:; Support for DDR4 2933/2666/2400/2133 MT/s memory modules; 10th Generation Intel Core i5/i3/Pentium®/Celeron processors:; Support for DDR4 2666/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Form factor | mATX; 9.3 in. x 7.9 in. (23.6 cm x 20 cm) | Micro ATX Form Factor; 24.4cm x 24.4cm | micro-ATX Form Factor; 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm ) | Micro ATX Form Factor; 22.6cm x 18.5cm; |
| Chipset | Intel H610 Chipset | AMD A520 | Intel H470 Chipset | Intel B560 Express Chipset |
| M.2 slots | — | 1 | 1 | — |
