Colorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard

Name: Colorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard
Brand: Colorful
Price: 17000 BDT
Availability: PreSale

Model: BATTLE-AX B760M-PLUS V20Item #: colorful-battle-ax-b760m-plus-v20-motherboard

৳17,000

Upcomingverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Chipset
DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz memory; - Intel is supported Extreme Memory Profile (XMP) memory technology; - supports dual channel memory technology RAM type
M-ATX; 245mm x 245mm Form factor

Overview

The colorful BATTLE-AX B760M-PLUS V20 Motherboard is a high-performance motherboard that elevates your gaming and computer experience. This motherboard is packed with cutting-edge features and remarkable characteristics, and it is intended to fulfill the needs of current PC enthusiasts and gamers. The BATTLE-AX B760M-PLUS V20 motherboard has a powerful 12+1 phase reinforced power supply, guaranteeing steady and efficient power delivery to your components. This design is suited for overclocking and demanding applications. This motherboard includes three PCIe 4.0 x4 M.2 SSD slots, letting you make full use of high-speed NVMe storage devices for lightning-fast data access and speedy load times in your games and applications. The motherboard has one USB 3.2 Gen 2 Type-C and two USB 3.2 Gen 1 Type-A high-speed back connectors. These interfaces offer lightning-fast data transmission rates and good interoperability with a wide range of peripherals. This motherboard's Realtek 2.5G high-speed wired network card offers seamless and lag-free online gaming and multimedia streaming. You will have minimal latency and high-speed internet access. The CNVI WiFi/BT slot supports an extended WiFi module, allowing you to connect wirelessly and enjoy the convenience of Bluetooth connectivity. The iGame Center light efficiency control software is compatible with the BATTLE-AX B760M-PLUS V20 motherboard. This program allows you to synchronize and personalize the lighting effects of the radiator, cooling fan, and memory, giving your system a personal touch. Safety and stability are critical, and this motherboard has six safety technologies to provide dependable and uninterrupted performance, protecting your components from harm. Each BATTLE-AX B760M-PLUS V20 motherboard is subjected to a rigorous quality control process before reaching your hands. Colorful ensures the finest quality product through 200 rigorous testing methods. The PCB atomization process has been significantly improved, increasing the motherboard's longevity and performance. It aids in increased longevity and heat dissipation.

Buy Colorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard from the best Motherboard Shop in BD

Specifications

Chipset: Intel B760
RAM type: DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz memory; - Intel is supported Extreme Memory Profile (XMP) memory technology; - supports dual channel memory technology
Form factor: M-ATX; 245mm x 245mm
Memory — Type: DDR4
Memory — Slots: 4
Highlights — Model: BATTLE-AX B760M-PLUS V20
Graphics — Graphics: Integrated Graphics Processor-Intel HD Graphics support:; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Expansion Slots — PCI: 1×PCIe 5.0 x16 slot; 1×PCIe 3.0 x4 slot

Show all 21 specifications

Highlights — Features: RTL8125 2.5Gbit network card
Memory — Maximum Memory: up to 128 GB of memory (a single socket can support up to 32 GB of memory)
Basic Information — BIOS: 128M UEFI, supporting multiple languages
Connector & Ports — HDMI: 1x HDMI
Basic Information — Audio: 5.1 Channel sound card
Highlights — Supported RAM: 4x DDR4, Max 128GB 4800(OC)
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort
Connector & Ports — LAN Port (s): RTL8125 2.5Gbit network card
Basic Information — Supported CPU: Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium ® And Cylon processor
Connector & Ports — Display Port (s): 1x DisplayPort
Connector & Ports — Supported Storage: A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices; - M.2_ 1 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, CPU channel); - M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel); - M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)

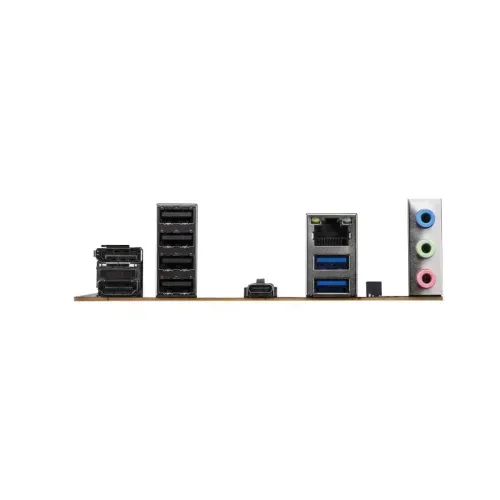

Connector & Ports — Internal I/O Ports: Rear I/O interface:; - 4×USB 2.0 interfaces; - 2×USB 3.2 Gen 1 Type-A interfaces; - 1×USB 3.2 Gen 2 Type-C interface; - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution; - 1×HDMI 2.0 interface, Up to 4K 60Hz resolution; - 1×2.5G network interface; - 3×audio interfaces (audio input/audio output/microphone); On board device interface:; - 1×CPU fan pin; - 3 system fan pins; - 1×water-cooled pump pin; - 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces; - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces; - 1×USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface; - 2×5V 3-pin ARGB pins; - 2×12V 4-pin RGB pin; - 1×Front audio pin; - 1×front panel pin; - 1×speaker pin; - 1×clear CMOS jumper; - 1×COM port pin; - 1×BIOS burner pin; - 1×POST card pin; - 1×ME write protection jumper; - 1×RGB lamp effect control jumper
Warranty Information — Manufacturing Warranty: 3 years

Compare with similar products

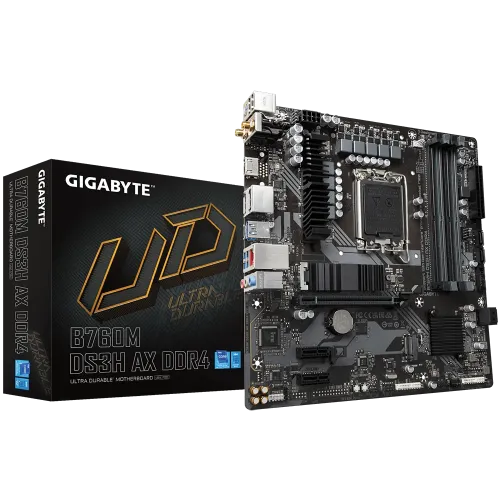

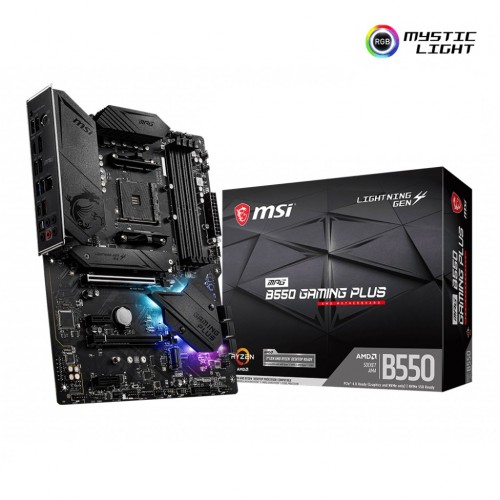

	This itemColorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard	ColorfulColorful BATTLE-AX B850M-E WIFI V14 AM5 mATX Motherboard	MSIMSI MPG B550 Gaming Plus AM4 ATX Motherboard	GIGABYTEGIGABYTE B760M DS3H AX DDR4 mATX Motherboard
Price	৳17,000	৳17,000	৳17,000	৳17,000
Availability	Upcoming	In stock	Out of stock	Out of stock
Brand	Colorful	Colorful	MSI	GIGABYTE
RAM type	DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz memory; - Intel is supported Extreme Memory Profile (XMP) memory technology; - supports dual channel memory technology	Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory; - Support Extreme Memory Profile (XMP) memory technology; - Support EXtended Profiles for Overclocking (EXPO) memory technology; - Supports dual channel memory technolog	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4400 MHz; 1DPC 2R max speed 3866 MHz; 2DPC 1R max speed 4000 MHz; 2DPC 2R max speed 3600 MHz; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory (non-ECC mode); Supports un-buffered memory	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor	M-ATX; 245mm x 245mm	M-ATX; 244mm x 235 mm	ATX Form Factor; 12 in. x 9.6 in. (30.5 cm x 24.4 cm)	Micro ATX Form Factor; 24.4cm x 24.4cm
Chipset	Intel B760	AMD B850	AMD B550 Chipset	Intel B760 Express Chipset
M.2 slots	—	2	2	1
