GIGABYTE B760M DS3H AX DDR4 mATX Motherboard

Name: GIGABYTE B760M DS3H AX DDR4 mATX Motherboard
Brand: GIGABYTE
Price: 17000 BDT
Availability: OutOfStock

Model: B760M DS3H AX DDR4Item #: gigabyte-b760m-ds3h-ax-ddr4-motherboard

৳17,000

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Express Chipset
1 M.2 slots
Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
Micro ATX Form Factor; 24.4cm x 24.4cm

Overview

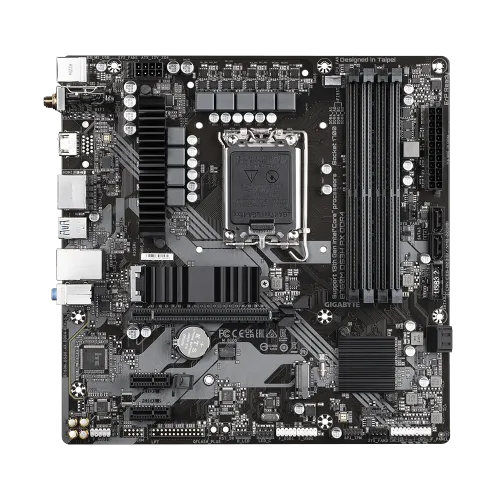

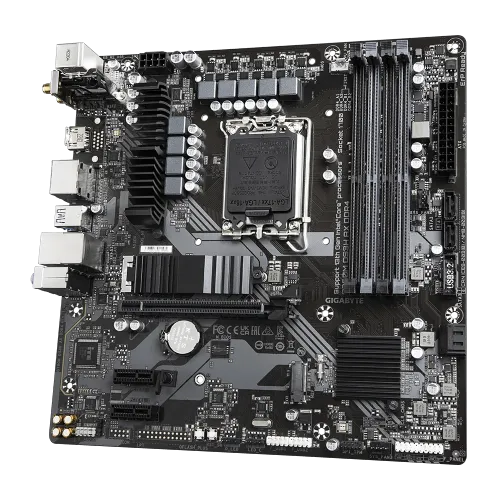

The GIGABYTE B760M DS3H AX DDR4 is a mATX motherboard that supports Intel Socket LGA 1700 and 13th and 12th Gen Intel Series Processors. This 14th Gen Motherboard has an unrivaled Hybrid 6+2+1 Phases Digital VRM Solution. It also includes dual-channel DDR4 memory with four DIMM slots that support XMP memory modules. This motherboard provides next-generation storage solutions with two PCIe 4.0 x4 M.2 ports. M.2 Thermal Guard is provided to guarantee that M.2 SSD performance is optimal. In addition, the motherboard has an EZ-Latch PCIe 4.0x16 slot with a rapid-release design. It includes a 2.5GbE LAN and Wi-Fi 6E 802.11ax for fast networks. The motherboard's rear panel provides additional connectivity options, including USB-C 10Gb/s, DP, and HDMI. Smart Fan 6 has many temperature sensors as well as hybrid fan headers with FAN STOP. Finally, the Q-Flash Plus functionality enables BIOS upgrades without the need for the CPU, RAM, or graphics card to be installed.

Buy GIGABYTE B760M DS3H AX DDR4 mATX Motherboard from the best Motherboard Shop in BD

Specifications

Chipset: Intel B760 Express Chipset
M.2 slots: 1
RAM type: Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Memory — Type: DDR4
Memory — Slots: 4
Highlights — Model: B760M DS3H AX DDR4
Graphics — Graphics: Integrated Graphics Processor-Intel HD Graphics support:; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Show all 28 specifications

Expansion Slots — PCI: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16); 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Highlights — Features: Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E AX211
Memory — Maximum Memory: 128GB
Basic Information — BIOS: 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out
Connector & Ports — Audio: 1 x front panel audio header; 3 x audio jacks
Others — Special Features: 2 x addressable LED strip headers; 2 x RGB LED strip headers; iTE I/O Controller Chip; Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Q-Flash Plus
Highlights — Supported RAM: 4x DDR4, Max 128GB 5333(OC)

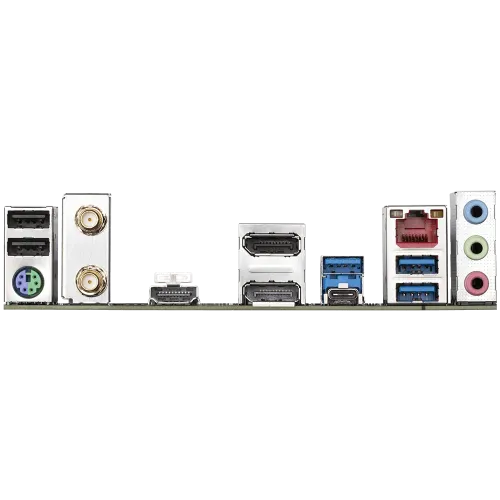

Connector & Ports — USB (s): 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support; 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header); 2 x USB 2.0/1.1 ports on the back panel; 4 x USB 2.0/1.1 ports available through the internal USB headers
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort
Connector & Ports — LAN Port (s): Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps); 1 x RJ-45 port
Basic Information — Supported CPU: LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core,; Pentium Gold and Celeron Processors; L3 cache varies with the CPU
Connector & Ports — Display Port (s): 1x DisplayPort
Connector & Ports — Supported Storage: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); 4 x SATA 6Gb/s connectors
Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 3 x system fan headers; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x S/PDIF Out header; 1 x Q-Flash Plus button; 1 x reset button; 1 x reset jumper; 1 x Clear CMOS jumpe
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — Wireless Communication module: Intel Wi-Fi 6E AX211; WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.3; Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate;
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
