Colorful BATTLE-AX B850M-E WIFI V14 AM5 mATX Motherboard

Name: Colorful BATTLE-AX B850M-E WIFI V14 AM5 mATX Motherboard
Brand: Colorful
Price: 17000 BDT
Availability: InStock

Model: BATTLE-AX B850M-E WIFI V14Item #: colorful-battle-ax-b850m-e-wifi-v14-motherboard

৳17,000~~৳20,500~~Save 17%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD B850 Chipset
2 M.2 slots
Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory; - Support Extreme Memory Profile (XMP) memory technology; - Support EXtended Profiles for Overclocking (EXPO) memory technology; - Supports dual channel memory technolog RAM type
M-ATX; 244mm x 235 mm Form factor

Overview

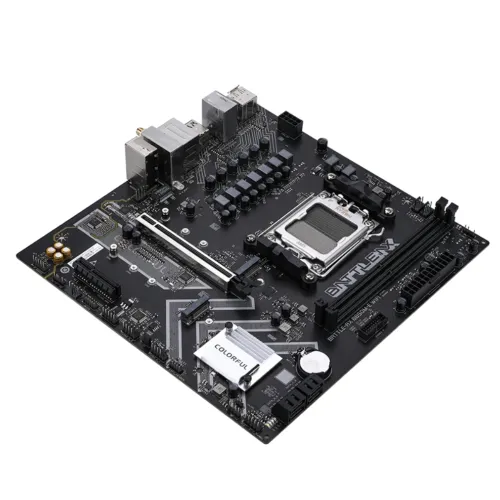

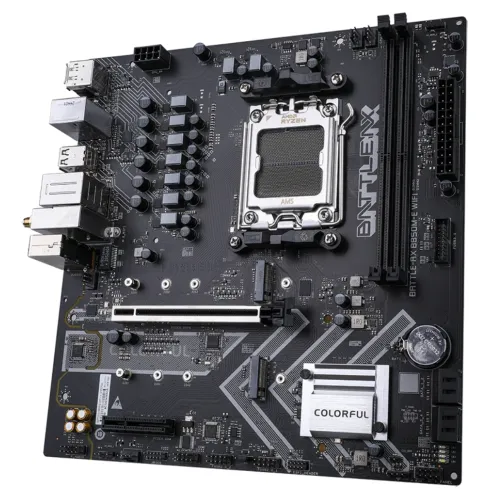

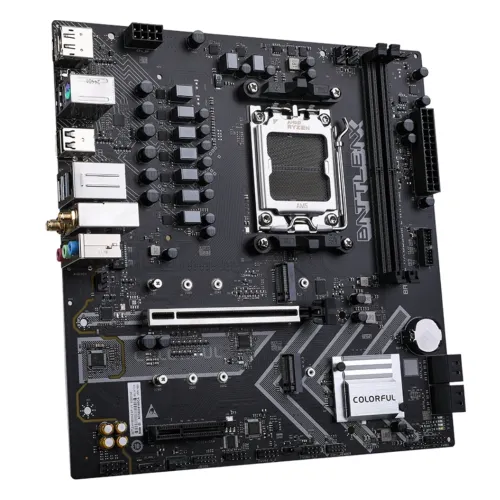

The Colorful BATTLE-AX B850M-E WiFi V14 Motherboard is a feature-rich Colorful Motherboard built on the AMD B850 chipset, offering support for the latest AM5 Ryzen processors including the 7000, 8000, and 9000 series. As a compact micro-ATX board, this Colorful 850 motherboard delivers excellent performance in a smaller form factor, making it ideal for gamers and creators who want power without sacrificing space. With dual DDR5 slots supporting up to 96GB of high-speed memory at 7600MHz (OC), it ensures smooth multitasking and responsive gameplay. Connectivity is future-ready with Intel AX200 Wi-Fi 6, Bluetooth 5.2, and Gigabit LAN, positioning it as a reliable Colorful WiFi Motherboard for fast and stable networking. Storage expansion is versatile with dual M.2 SSD slots supporting RAID, while the I/O panel includes a convenient one-click BIOS upgrade function for easy system maintenance. Built with six major protection technologies and tested through over 200 strict processes, this Colorful AMD motherboard guarantees durability and stability for long-term use. RGB lighting control via iGame Center software adds customization across fans, memory, and radiators, giving users full control over aesthetics. Combining DDR5 support, Wi-Fi 6 connectivity, Bluetooth 5.2, compact design, and robust reliability, the Colorful B850M-E WiFi V14 Motherboard is a smart choice for anyone building a modern AMD system with balanced performance and value.

Specifications

Chipset: AMD B850
M.2 slots: 2
RAM type: Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory; - Support Extreme Memory Profile (XMP) memory technology; - Support EXtended Profiles for Overclocking (EXPO) memory technology; - Supports dual channel memory technolog
Form factor: M-ATX; 244mm x 235 mm
Memory — Type: DDR5
Memory — Slots: 2 x DIMM;
Highlights — Model: BATTLE-AX B850M-E WIFI V14
Expansion Slots — PCI: 1×PCIe 4.0 x16 slot; 1×PCIe 4.0 x4 slot

Show all 25 specifications

Highlights — Features: 2x M.2 slot, Gigabit LAN, WiFi 6, Bluetooth 5.2
Memory — Maximum Memory: up to 96 GB of memory (a single socket can support up to 48 GB of memory)
Basic Information — BIOS: 256M UEFI, support multiple languages
Connector & Ports — HDMI: 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution
Connector & Ports — RAID: supporting the creation of RAID 0, RAID 1, and RAID 10 disk arrays using SATA or M.2 NVMe hard drive devices
Basic Information — Audio: Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels
Connector & Ports — Audio: Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels
Highlights — Supported RAM: 2x DDR5 Up to 7600(OC) Max. 96GB
Connector & Ports — USB (s): 4×USB 2.0 interfaces; 2×USB 3.2 Gen 1 5Gbps Type-A interfaces
Highlights — Graphics Output: 1x HDMI 2.0, 1x DisplayPort 1.2
Connector & Ports — LAN Port (s): 1×Gigabit network interface; RTL8111K 1000M LAN
Basic Information — Supported CPU: Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard
Connector & Ports — Display Port (s): 1×DP 1.2 interface, supporting up to 4K 60Hz resolution
Connector & Ports — Supported Storage: 2 M.2 slots and 4 SATA 6Gb/s hard drive interfaces, ; - M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel); - M.2_2 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel)

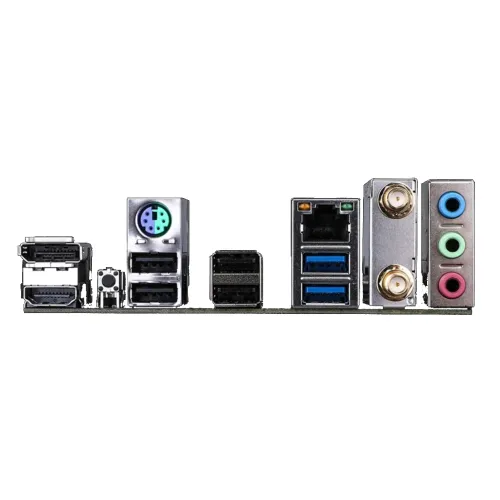

Connector & Ports — Internal I/O Ports: Rear I/O :; -4×USB 2.0 interfaces; -2×USB 3.2 Gen 1 5Gbps Type-A interfaces; -1×DP 1.2 interface, supporting up to 4K 60Hz resolution; -1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution; -1个PS/2 interface; -1×Gigabit network interface; -2×Wi-Fi 6 antenna interfaces; -3×Audio interfaces (audio input/audio output/microphone); -1×BIOS update button; On board:; -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces; -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces; -1×CPU fan pin; -2×System fan pins; -1×water cooling pump pin; -2×5V 3-pin ARGB pins; -1×Front audio pin; -1×Front panel pin; -1×Speaker pin; -1×COM port pin; -1×Clear CMOS jumper; -1×BIOS burner pin; -1×POST card pin
Warranty Information — Manufacturing Warranty: 03 years
Connector & Ports — Wireless Communication module: WiFi 6
