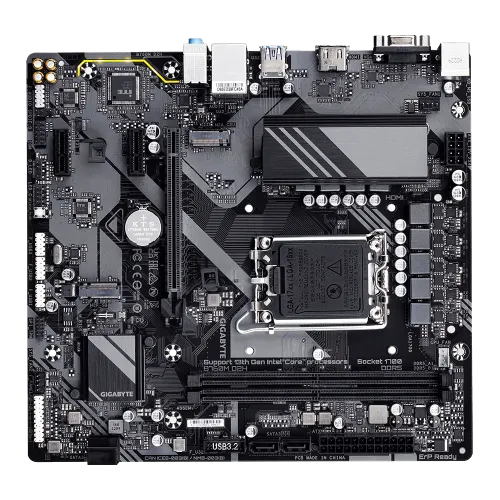

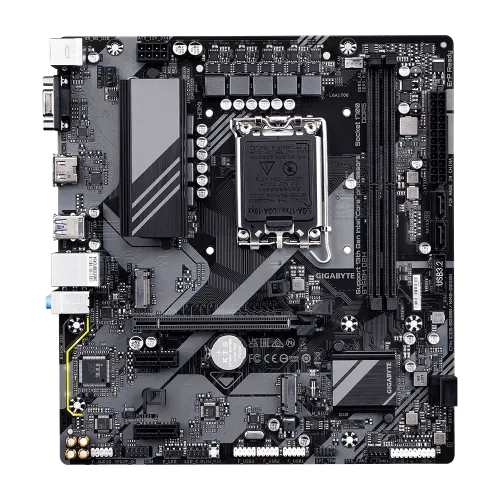

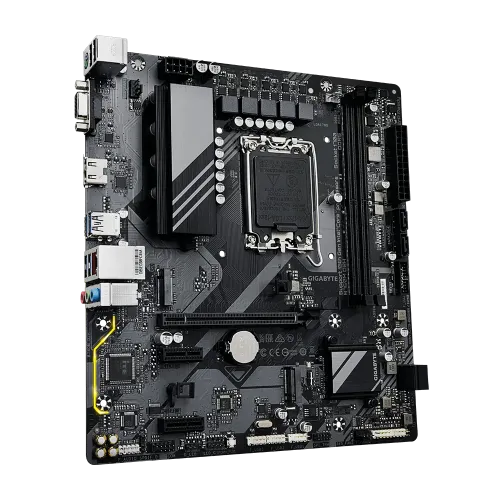

GIGABYTE B760M D2H mATX Motherboard

Name: GIGABYTE B760M D2H mATX Motherboard
Brand: GIGABYTE
Price: 15700 BDT
Availability: OutOfStock

Model: B760M D2HItem #: gigabyte-b760m-d2h-motherboard

৳15,700

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Express Chipset
Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
Micro ATX Form Factor; 24.4cm x 24.4cm

Overview

The GIGABYTE B760M D2H 14th 13th and 12th Gen mATX Motherboard is a cutting-edge platform that supports both 13th and 12th Gen Series Processors on Intel's LGA 1700 socket. It boasts unparalleled performance with its Hybrid 6+2+1 Phases Digital VRM Solution, ensuring efficient power delivery for optimal system stability and performance. With support for Dual Channel DDR5 and XMP Memory Modules, users can experience faster and more responsive multitasking capabilities. The 14th Gen Motherboard also features Next Generation Storage with 2 PCIe 4.0 x4 M.2 connectors, allowing for lightning-fast data transfer speeds and storage performance. Its PCIe 4.0x16 slot comes with an EZ-Latch quick-release design, making graphics card installation a breeze. The GIGABYTE B760M D2H Motherboard is equipped with a 2.5GbE LAN port, ensuring high-speed and reliable network connectivity. it provides extended connectivity options such as HDMI and D-Sub ports. To maintain an optimal temperature inside the system, Smart Fan 6 technology offers multiple temperature sensors and hybrid fan headers with FAN STOP functionality.

Specifications

Chipset: Intel B760 Express Chipset
RAM type: Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 2
Highlights — Model: B760M D2H
Graphics — Graphics: Integrated Graphics Processor-Intel® HD Graphics support:; 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.0 version and HDCP 2.3.
Expansion Slots — PCI: CPU:; 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; Chipset:; 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Show all 27 specifications

Highlights — Features: 2.5GbE LAN
Memory — Maximum Memory: up to 96 GB (48 GB single DIMM capacity) of system memory
Basic Information — BIOS: 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Q-Flash Plus;
Highlights — Supported RAM: 2x DDR5, Max 96GB 8000(O.C.)

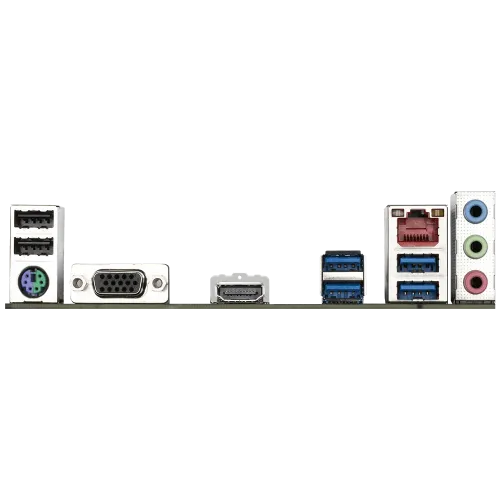

Connector & Ports — USB (s): Chipset:; 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header); 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header); Chipset+2 USB 2.0 Hubs:; 4 x USB 2.0/1.1 ports available through the internal USB headers
Highlights — Graphics Output: 1x HDMI, 1x D-Sub
Connector & Ports — D-Sub (s): 1 x D-Sub
Connector & Ports — LAN Port (s): Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps);
Basic Information — Supported CPU: LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors; L3 cache varies with the CPU
Connector & Ports — Supported Storage: CPU:; 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset:; 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); 4 x SATA 6Gb/s connectors
Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x addressable LED strip header; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB 3.2 Gen 1 header; 3 x USB 2.0/1.1 headers; 1 x serial port header; 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Compare with similar products

	This itemGIGABYTE B760M D2H mATX Motherboard	MSIMSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard	MSIMSI PRO B550M-P WIFI6E AMD AM4 mATX Motherboard	MSIMSI PRO B760M-G mATX Motherboard
Price	৳15,700	৳15,600	৳15,700	৳15,700
Availability	Out of stock	Out of stock	In stock	Out of stock
Brand	GIGABYTE	MSI	MSI	MSI
RAM type	Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4400 MHZ; 1DPC 2R max speed 3733 MHZ; 2DPC 1R max speed 3866 MHZ; 2DPC 2R max speed 3466 MHZ; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory; Supports un-buffered memory	Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE; Max. overclocking frequency:; • 1DPC 1R Max speed up to 4400+ MT/s; • 1DPC 2R Max speed up to 3733+ MT/s; • 2DPC 1R Max speed up to 3866+ MT/s; • 2DPC 2R Max speed up to 3466+ MT/s; Supports JEDEC Speed; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Memory Overclocking by A-XMP OC mode	DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 6400+ MHz; • 1DPC 2R Max speed up to 5600+ MHz; Supports Intel XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory
Form factor	Micro ATX Form Factor; 24.4cm x 24.4cm	Micro-ATX Form Factor; 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)	mATX; 243.84mmx243.84mm	mATX; 220mmx243.84mm
Chipset	Intel B760 Express Chipset	AMD B550	AMD B550	INTEL B760
M.2 slots	—	2	2	—
