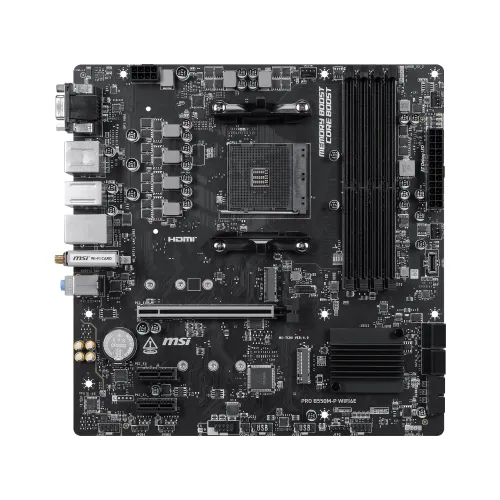

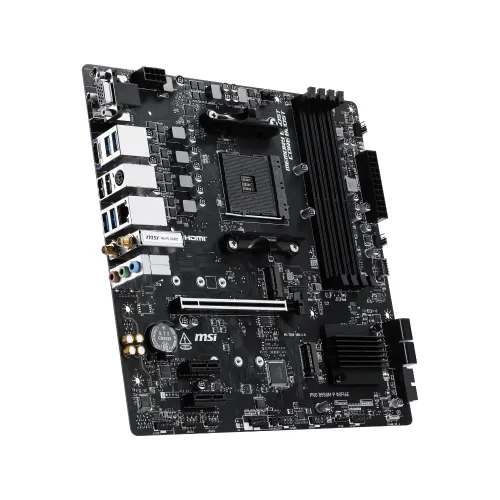

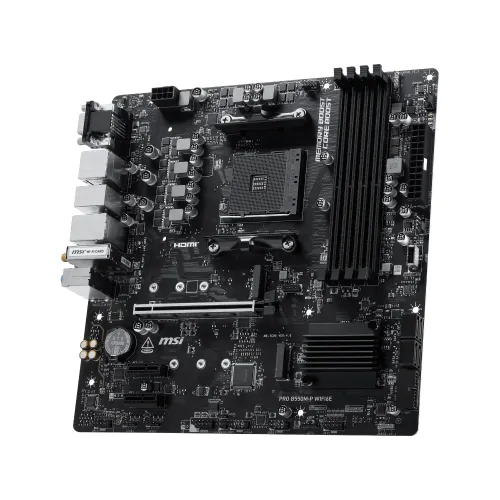

MSI PRO B550M-P WIFI6E AMD AM4 mATX Motherboard

Name: MSI PRO B550M-P WIFI6E AMD AM4 mATX Motherboard
Brand: MSI
Price: 15700 BDT
Availability: InStock

Model: PRO B550M-P WIFI6EItem #: msi-pro-b550m-p-wifi6e-am4-matx-motherboard

৳15,700~~৳15,900~~Save 1%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD B550 Chipset
2 M.2 slots
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE; Max. overclocking frequency:; • 1DPC 1R Max speed up to 4400+ MT/s; • 1DPC 2R Max speed up to 3733+ MT/s; • 2DPC 1R Max speed up to 3866+ MT/s; • 2DPC 2R Max speed up to 3466+ MT/s; Supports JEDEC Speed; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Memory Overclocking by A-XMP OC mode RAM type
mATX; 243.84mmx243.84mm Form factor

Overview

The MSI PRO B550M-P WIFI6E AMD AM4 mATX Motherboard is designed for AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, and 3000 Series desktop processors on the AM4 socket. This Motherboard runs on the AMD B550 chipset and supports four DDR4 memory slots with a maximum capacity of 128GB.

Memory speeds reach up to 4400+ MT/s via A-XMP OC mode, covering a broad range from DDR4 2667 through 4400+ MHz across single and dual-rank configurations. Dual-channel mode, non-ECC unbuffered memory support, and JEDEC speed compatibility make this MSI AM4 Motherboard highly flexible for diverse system builds. The primary PCIe 4.0 x16 slot from the CPU delivers maximum GPU bandwidth for gaming and professional creative workloads.

Two additional PCIe 3.0 x1 slots from the chipset provide expansion options for additional peripherals and cards. The MSI PRO B550M-P WIFI6E AM4 Motherboard includes two M.2 slots, with M.2_1 supporting PCIe 4.0 x4 and SATA mode and M.2_2 supporting PCIe 3.0 x4 for fast NVMe storage. Four SATA 6G ports support RAID 0, 1, and 10 configurations, while M.2 NVMe supports RAID 0 and RAID 1 setups.

The standout feature of this MSI WiFi Motherboard is the pre-installed Wi-Fi 6E module supporting 2.4GHz, 5GHz, and 6GHz bands with 802.11a/b/g/n/ac/ax standards and MU-MIMO RX technology. Bluetooth 5.3 support enables seamless wireless peripheral connectivity alongside the high-speed Wi-Fi 6E connection. The MSI PRO B550M-P WIFI6E mATX Motherboard has onboard graphics output includes HDMI 2.1, DisplayPort 1.4, and VGA ports for integrated graphics support across multiple resolutions.

Realtek ALC897 delivers 7.1-channel HD audio, while a Realtek RTL8111H 1Gbps LAN controller handles wired network connectivity reliably. Rear USB ports include two USB 2.0 and four USB 5Gbps Type-A connections for comprehensive peripheral support. Four EZ Debug LEDs simplify hardware troubleshooting during system assembly significantly. The MSI PRO B550M-P WIFI6E AMD Motherboard measures 243.84×243.84mm and fully supports Windows 10 and Windows 11 64-bit operating systems.

Specifications

Chipset: AMD B550
M.2 slots: 2
RAM type: Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE; Max. overclocking frequency:; • 1DPC 1R Max speed up to 4400+ MT/s; • 1DPC 2R Max speed up to 3733+ MT/s; • 2DPC 1R Max speed up to 3866+ MT/s; • 2DPC 2R Max speed up to 3466+ MT/s; Supports JEDEC Speed; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Memory Overclocking by A-XMP OC mode
Form factor: mATX; 243.84mmx243.84mm
Memory — Type: DDR4
Memory — Slots: 4x DDR4
Highlights — Model: PRO B550M-P WIFI6E
Graphics — Graphics: 1x HDMI; Support HDMITM 2.1, maximum resolution of 4K 60Hz; 1x DisplayPort; Supports DP 1.4, maximum resolution of 4K 60Hz; 1x VGA; Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz

Show all 28 specifications

Expansion Slots — PCI: 1x PCI-E x16 slot; 2x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Highlights — Features: 2x M.2, Realtek RTL8111H 1Gbps LAN, Wi-Fi 6E, Bluetooth 5.3
Memory — Maximum Memory: Up to 128GB
Connector & Ports — HDMI: 1x HDMI 2.1
Connector & Ports — RAID: Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Basic Information — Audio: Realtek ALC897 Codec; 7.1-Channel High Definition Audio
Connector & Ports — Audio: 1x Front Audio (JAUD)
Others — Special Features: 4x EZ Debug LED; Support for Windows 11 64-bit, Windows 10 64-bit
Highlights — Supported RAM: 4x DDR4 Slots, Max 128GB, Up to 4400+ MHz (OC)

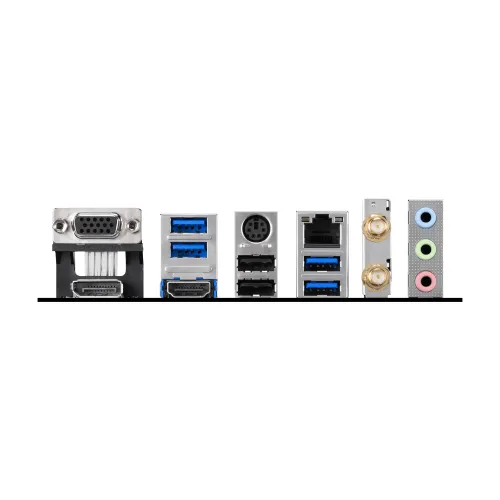

Connector & Ports — USB (s): 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front)
Connector & Ports — VGA (s): 1x VGA
Highlights — Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4, 1x VGA
Connector & Ports — LAN Port (s): Realtek RTL8111H 1Gbps LAN
Basic Information — Supported CPU: Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors; Socket AM4
Connector & Ports — Display Port (s): 1x DisplayPort 1.4
Connector & Ports — Supported Storage: 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices; 4x SATA 6G
Connector & Ports — Internal I/O Ports: 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 2x Addressable V2 RGB LED connector (JARGB_V2); 2x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Dual-band 1T1R mode; Supports MU-MIMO RX; Supports 2.4GHz/ 5GHz/ 6GHz* frequency band; Supports 802.11 a/ b/ g/ n/ ac/ ax
Connector & Ports — TPM (Trusted Platform Module ): 1x TPM pin header(Support TPM 2.0)

Compare with similar products

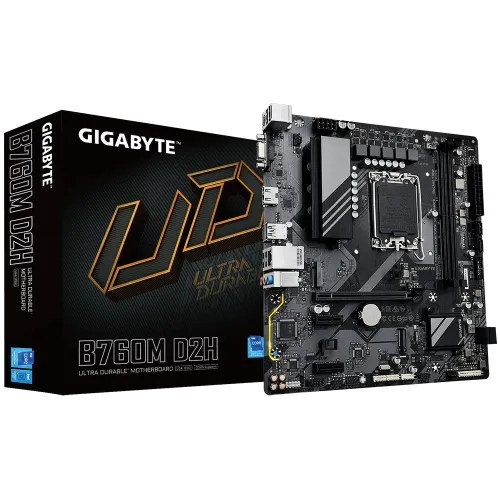

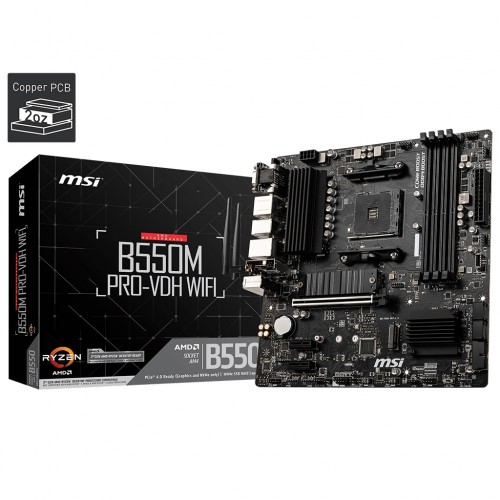

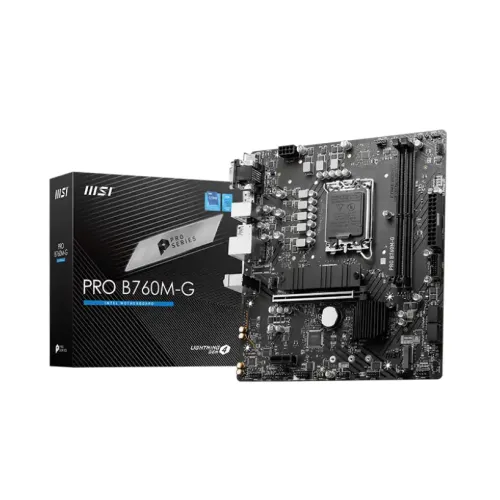

	This itemMSI PRO B550M-P WIFI6E AMD AM4 mATX Motherboard	MSIMSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard	MSIMSI PRO B760M-G mATX Motherboard	GIGABYTEGIGABYTE B760M D2H mATX Motherboard
