MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard

Name: MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
Brand: MSI
Price: 38900 BDT
Availability: InStock

Model: X870E GAMING PLUS WIFIItem #: msi-x870e-gaming-plus-wifi-motherboard

৳38,900~~৳40,400~~Save 4%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD X870E Chipset
3 M.2 slots
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. Overclocking frequency:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 6400+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only* RAM type
ATX; 243.84mmx304.8mm Form factor

Overview

The MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard is a powerful, feature-rich solution designed for enthusiasts, gamers, and creators using AMD's most recent desktop CPUs. This MSI motherboard, built on the powerful AMD X870E chipset, supports AMD Ryzen 9000, 8000, and 7000 Series CPUs on the sophisticated AM5 socket for future-proof performance and compatibility. The MSI X870E GAMING PLUS WIFI ATX Motherboard has four DDR5 UDIMM slots that can handle up to 256GB of dual-channel memory at rates of up to DDR5-8200+ MT/s using AMD EXPO and overclocking settings, which are specifically tuned for Ryzen 9000 CPUs. Memory features including CUDIMM support, Clock Driver bypass mode, and non-ECC unbuffered DIMMs provide cutting-edge performance, while double-sided latching DIMM slots increase installation reliability. The MSI X870E GAMING PLUS WIFI Motherboard delivers versatile display connectivity via HDMI 2.1 (4K at 60Hz) and a USB4 Type-C port with DisplayPort 1.4 support (4K at 120Hz) available on processors with integrated graphics, making it ideal for high-resolution, multi-display setups. With three PCIe x16 slots, including one PCIe 5.0 x16 slot directly from the CPU, the MSI X870E GAMING PLUS WIFI ensures maximum bandwidth for next-gen GPUs and expansion cards. Storage options include three M.2 slots with one PCIe 5.0 x4 slot and four SATA 6Gbps ports, enabling advanced RAID configurations: RAID 0, 1, 10 for SATA and RAID 0, 1, 5 for M.2 NVMe drives (RAID 5 exclusive to Ryzen 9000 Series). The Realtek ALC897 codec powers immersive 7.1-channel HD audio, enhancing the gaming and content creation experience. Networking is equally powerful, with Realtek 8126VB 5G LAN and a built-in Wi-Fi 7 module (802.11be, MU-MIMO, and Bluetooth 5.4), offering ultra-fast, low-latency wireless connections. The MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard is equipped with extensive USB connectivity, including USB4 40Gbps Type-C, USB 20Gbps Type-C, USB 10Gbps ports, and multiple USB 5Gbps and 2.0 ports, ensuring high-speed data transfer and peripheral compatibility. Engineered for performance and stability, the board features a 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, and an 8-layer PCB with 2oz thickened copper for enhanced thermal and electrical performance. MSI’s Frozr Guard cooling system includes an extended heatsink, 7W/mK MOSFET thermal pads, choke thermal pads, and EZ M.2 Shield Frozr II, delivering reliable thermal regulation during intense workloads. For builders, DIY-friendly features such as EZ Debug LEDs, EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna simplify setup and troubleshooting. Whether you're building a cutting-edge gaming rig or a professional workstation, the MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard offers unmatched performance, connectivity, and durability, solidifying its position as one of the most advanced and versatile options in the MSI motherboard lineup.

Specifications

Chipset: AMD X870E
M.2 slots: 3
RAM type: Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. Overclocking frequency:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 6400+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*
Form factor: ATX; 243.84mmx304.8mm
Memory — Type: DDR5
Memory — Slots: 4x DIMMs
Highlights — Model: X870E GAMING PLUS WIFI
Graphics — Graphics: 1x HDMI; Support HDMITM 2.1, maximum resolution of 4K 60Hz; 1x Type-C DisplayPort; USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz

Show all 27 specifications

Expansion Slots — PCI: 3x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset); ; PCI_E1 slot; • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors); • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Highlights — Features: Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
Memory — Maximum Memory: 256GB
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: • Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices; • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices; *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
Basic Information — Audio: Realtek ALC897; 7.1-Channel High Definition Audio
Connector & Ports — Audio: 1x Front Audio (JAUD)
Others — Special Features: 4x EZ Debug LED; 1x EZ Memory Detection LED
Highlights — Supported RAM: 4x DDR5, up to 8200 (OC) MT/s

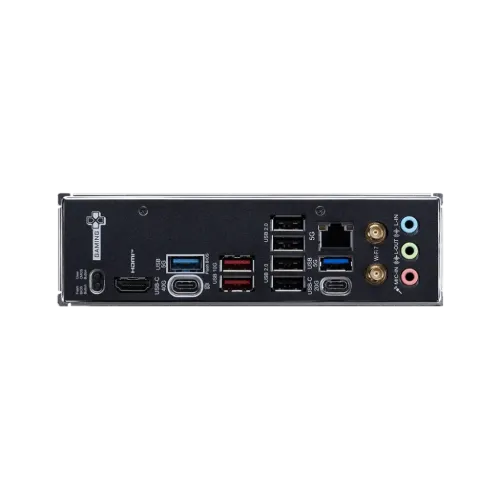

Connector & Ports — USB (s): 4x USB 2.0 (Rear); 6x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 4x USB 5Gbps Type A (Front); 2x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear); 1x USB 40Gbps Type C (Rear)
Highlights — Graphics Output: 1x HDMI, 1x Type-C DisplayPort
Connector & Ports — LAN Port (s): Realtek 8126VB 5G LAN
Basic Information — Supported CPU: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5
Connector & Ports — Display Port (s): 1x Type-C DisplayPort
Connector & Ports — Supported Storage: M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices; 4x SATA 6G; ; M2_1 slot; • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
Connector & Ports — Internal I/O Ports: 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 6x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 6x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; ; Supports Bluetooth 5.4, MLO, 4KQAM
Connector & Ports — TPM (Trusted Platform Module ): 1x TPM pin header(Support TPM 2.0)

Compare with similar products

	This itemMSI X870E GAMING PLUS WIFI AM5 ATX Motherboard	GIGABYTEGIGABYTE X870M AORUS ELITE WIFI7 DDR5 AM5 mATX Motherboard	AsusASUS TUF GAMING Z790-PLUS WIFI D4 ATX Motherboard	AsusASUS ROG STRIX B760-F GAMING WIFI DDR5 Motherboard
Price	৳38,900	৳38,500	৳38,600	৳39,000
Availability	In stock	In stock	Out of stock	Out of stock
Brand	MSI	GIGABYTE	Asus	Asus
M.2 slots	3	—	—	—
RAM type	Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. Overclocking frequency:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 6400+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.; 4 x DDR5 DIMM sockets ; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules; ; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)	5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC); /3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II	7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II
Form factor	ATX; 243.84mmx304.8mm	Micro ATX Form Factor; 24.4cm x 24.4cm	ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )	ATX Form Factor ; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Chipset	AMD X870E	AMD X870	Intel Z790 Chipset	Intel B760 Chipset
